Home >> BMW >> 1994 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Seat Heater >> Defect Code 02

Defect Code 02

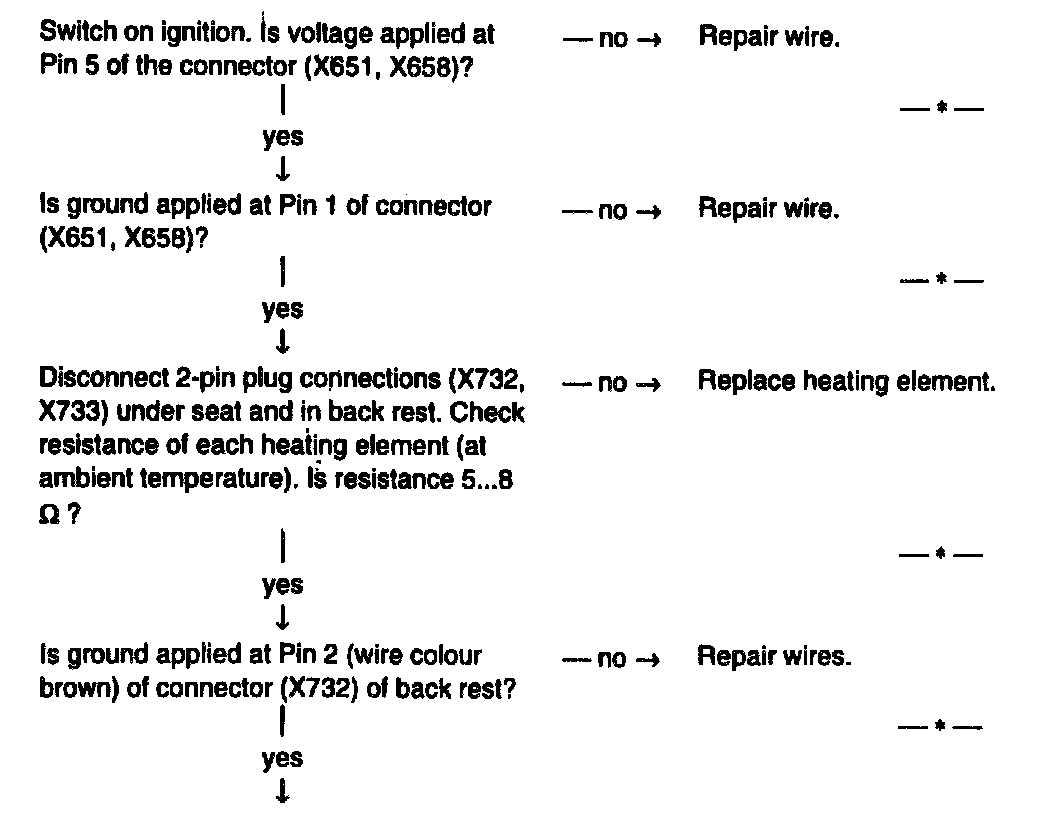

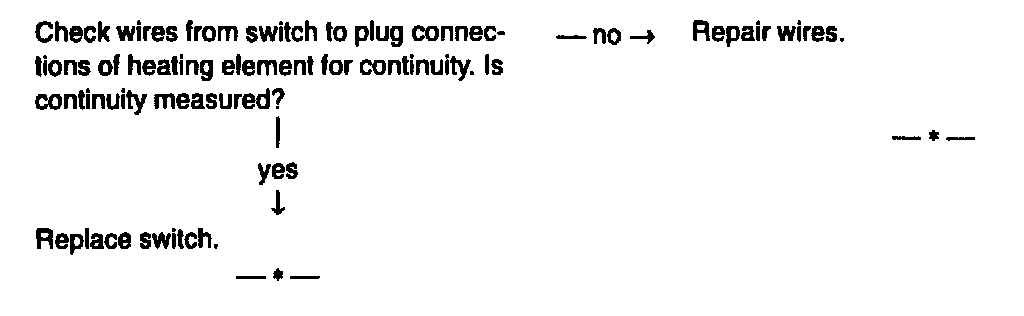

Failure Of Heating Function:

Failure Of Heating Function:
