525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Instrument Cluster/Check Control Module (K/CC) As of February 1989
>>

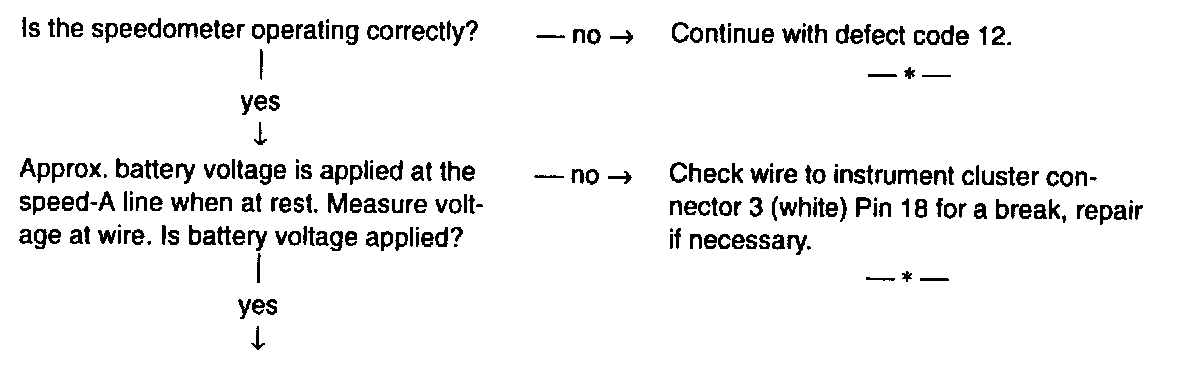

Defect Code 16
Defect Code 16
Defect Code 16
:
Speed-A Signal Defective
:
Note
: This troubleshooting procedure is used to check whether the instrument cluster correctly makes available a speed-A signal at other control units.
