Defect Code 02

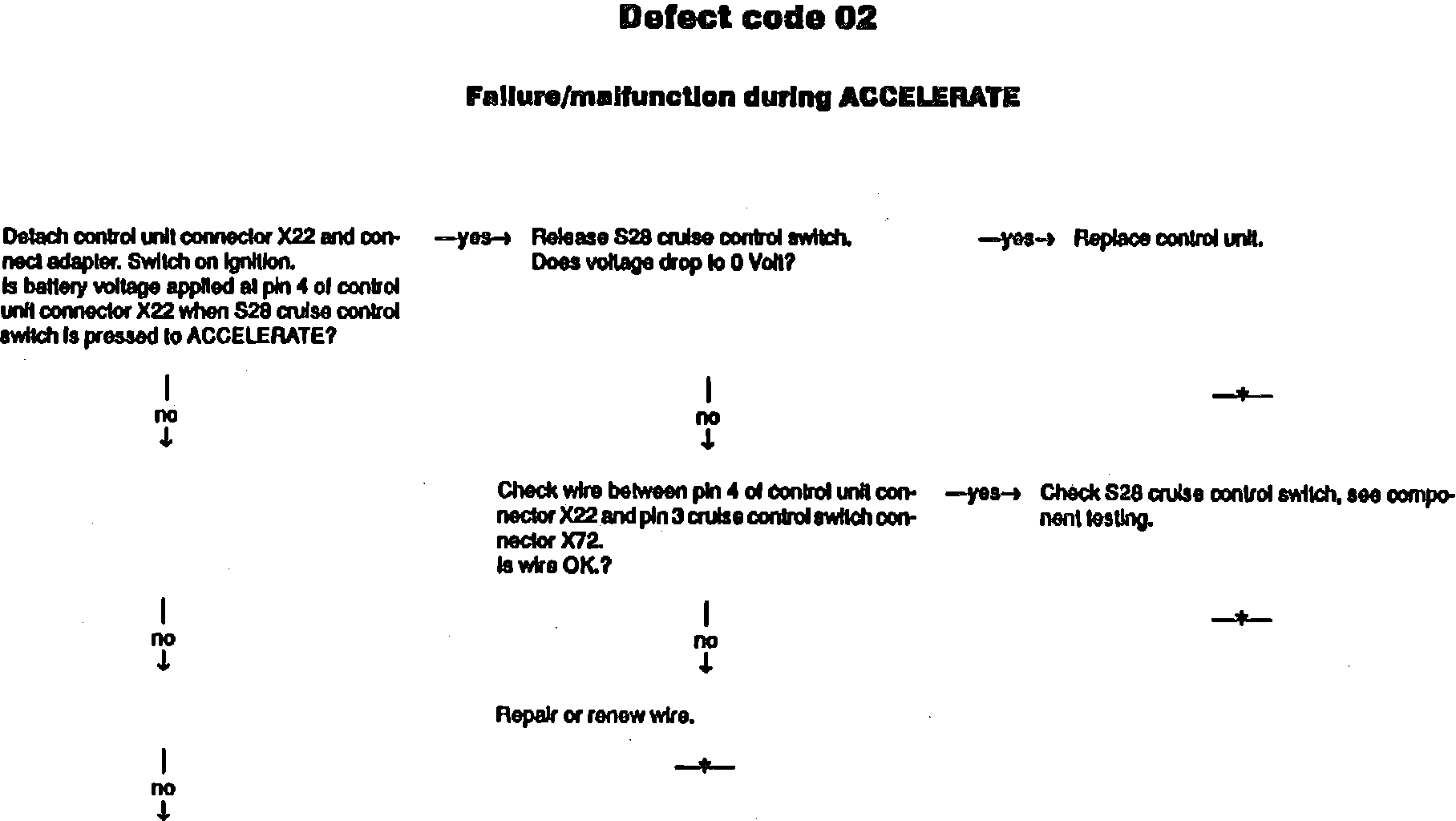

Fig. 5 Defect (trouble) Code 02 (Part 1 Of 2):

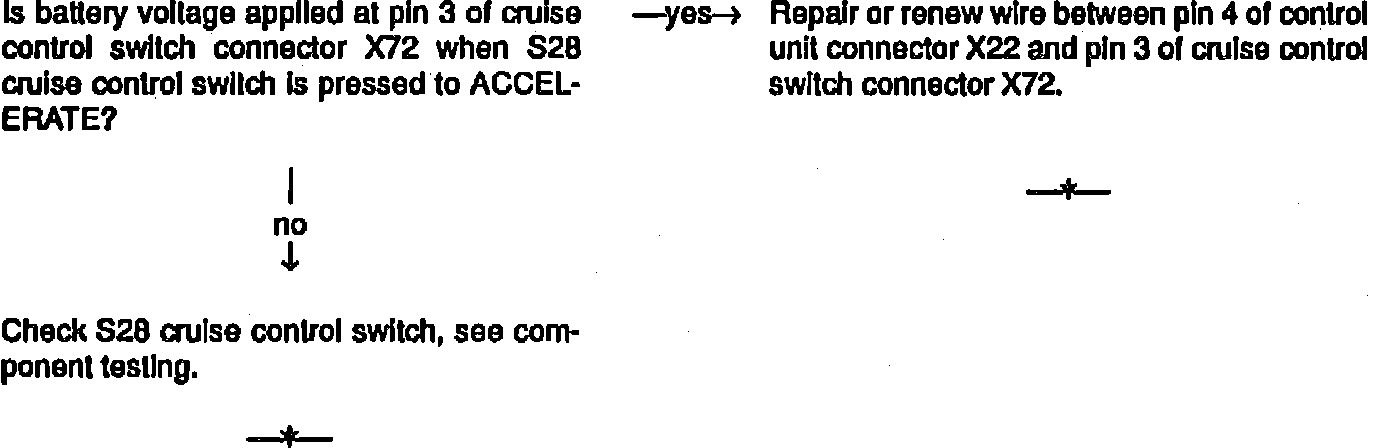

Fig. 5 Defect (trouble) Code 02 (Part 2 Of 2):

If a system failure or malfunction occurs during acceleration, refer to defect (trouble) code 02, Fig. 5.
