Home >> BMW >> 1994 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Central Locking System (ZKE/ZV) >> Defect Code 08

Defect Code 08

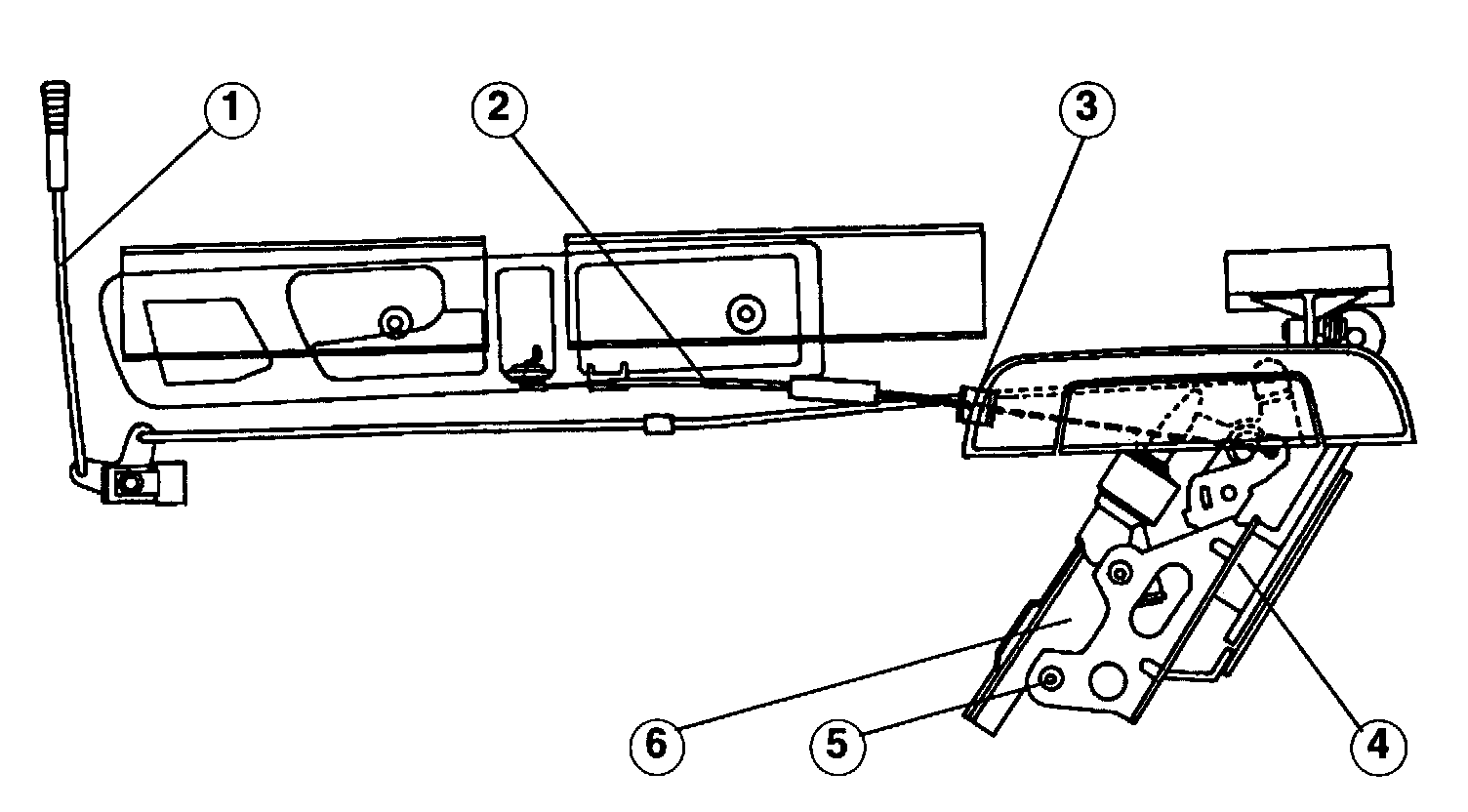

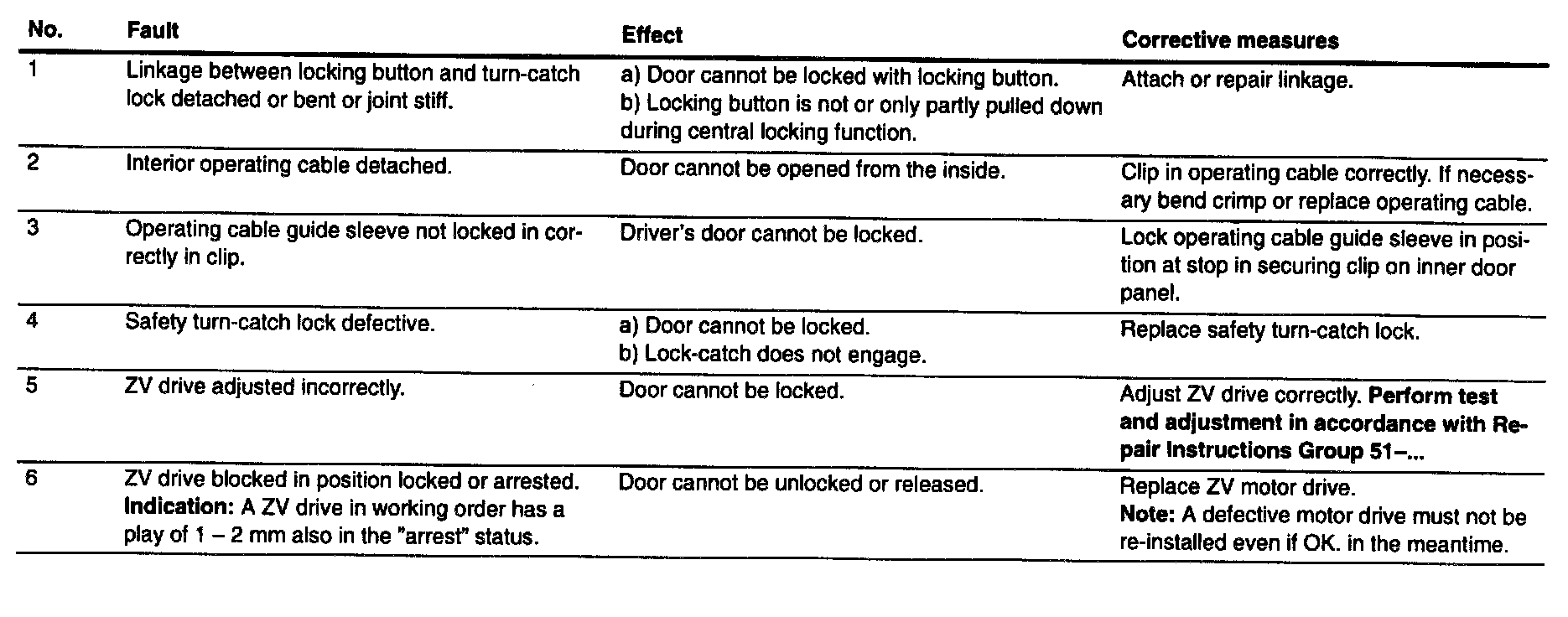

Defect Code 08 Mechanical Defects at Rear Door:

ZV System with Blocking of ZV Motor Drive:
