Description of Diagnostic Trouble Codes

ASC Flash Code:

Output of Diagnostic Information:

Output of diagnostic information:

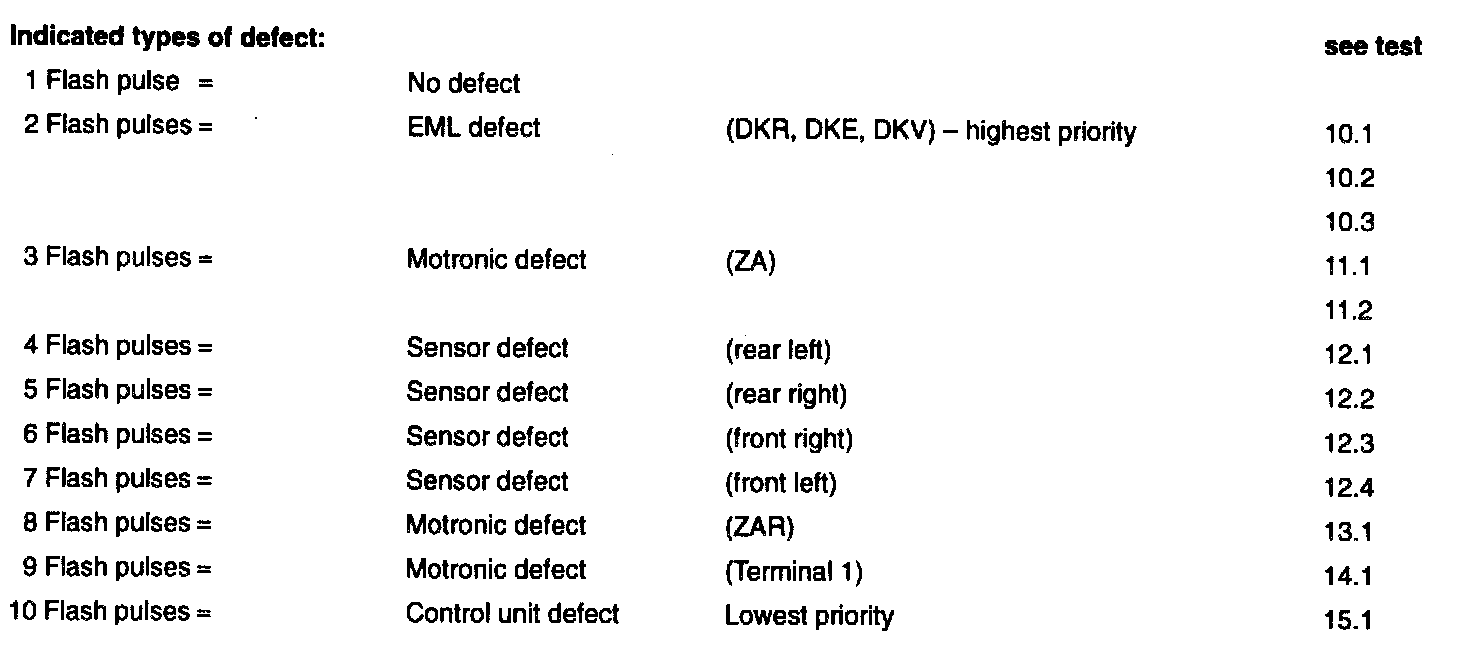

Flash code output via PALA. The number of flash pulses corresponds to the type of detect. Only the defect which occurs last is indicated.

If 2 defects have occurred simultaneously, the defect with the highest priority is indicated.
