BMW
>>
1994
>>
325i Convertible (E36) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Motor
>>
Front Door Window Motor
>>
Locations
>>
Passenger's
Passenger's

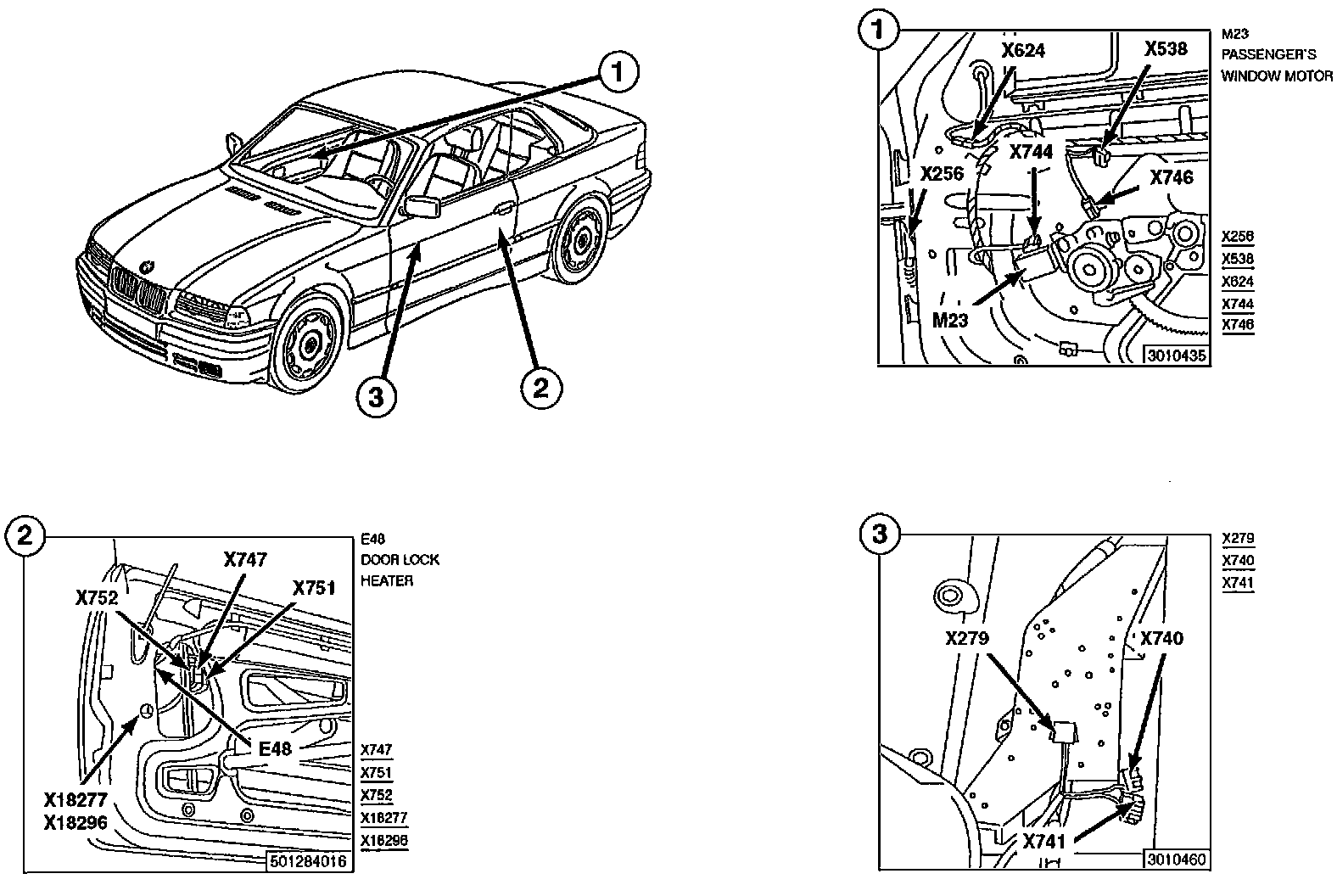

Component/Connector Location Views:
Figure
: 1
Component ID
: M23, Passenger's window motor
Location
: RH front door behind door panel
