Wiring Diagrams

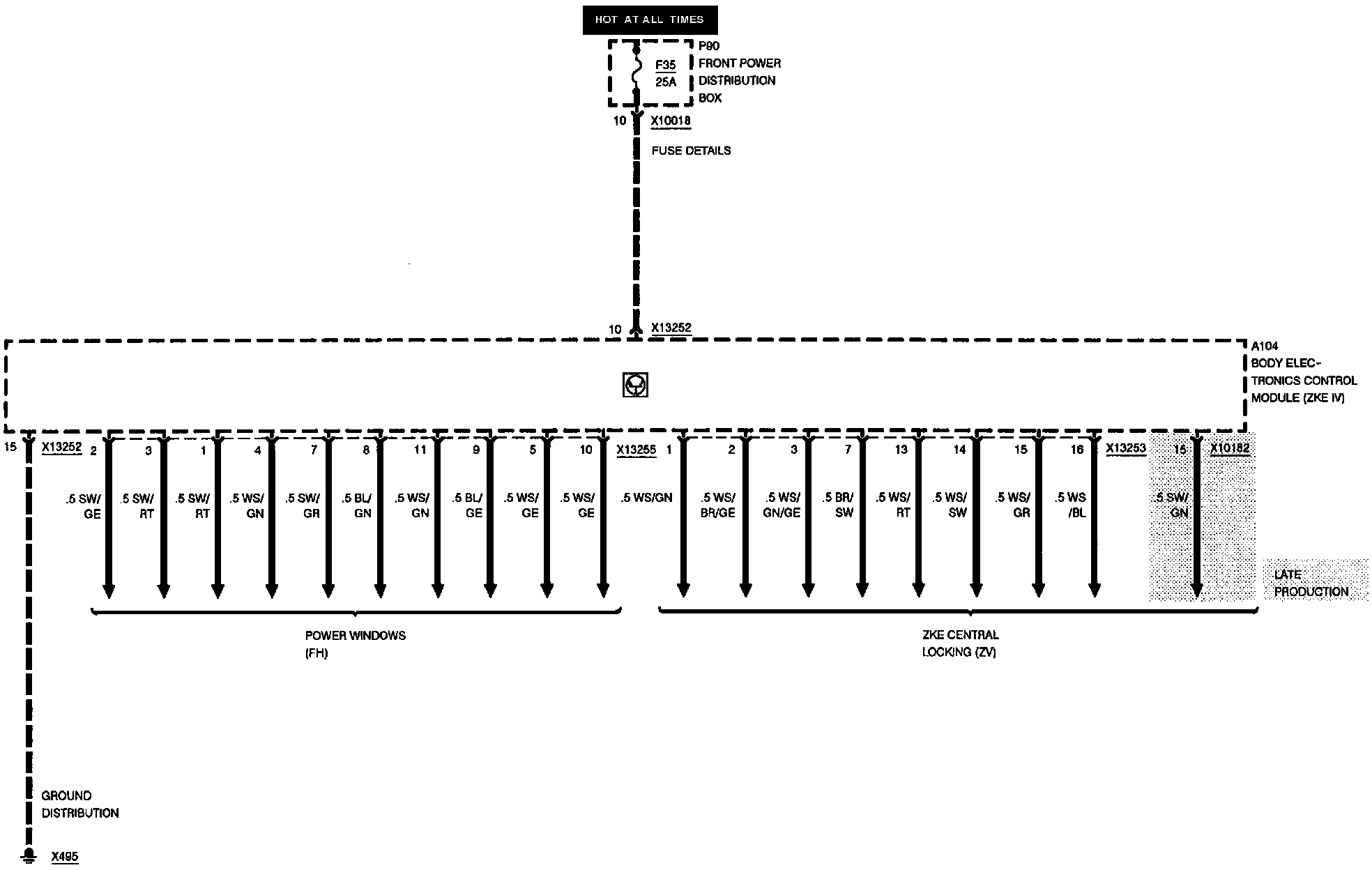

Central Body Electronics: (Part 1 Of 4):

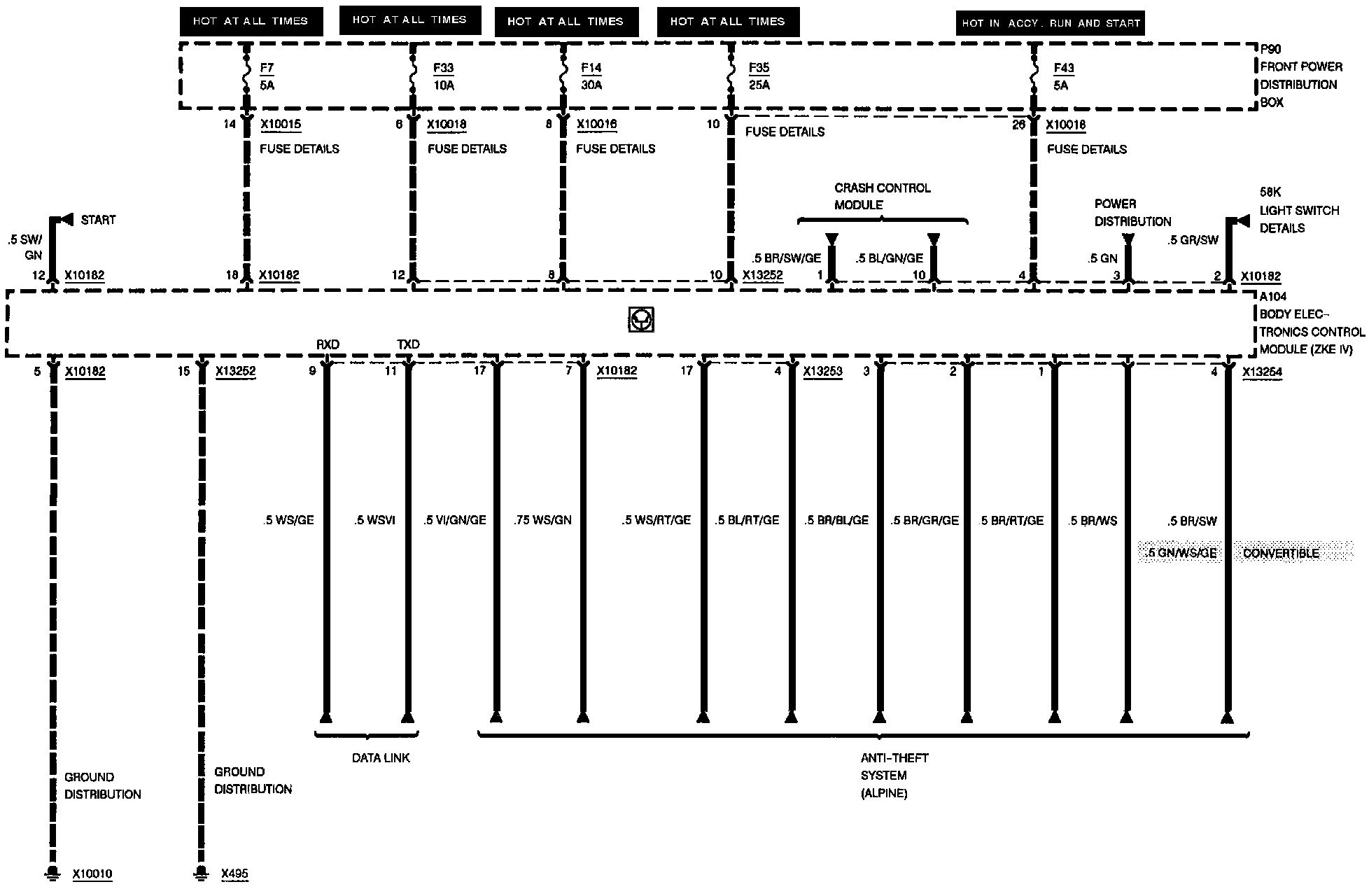

Central Body Electronics: (Part 2 Of 4):

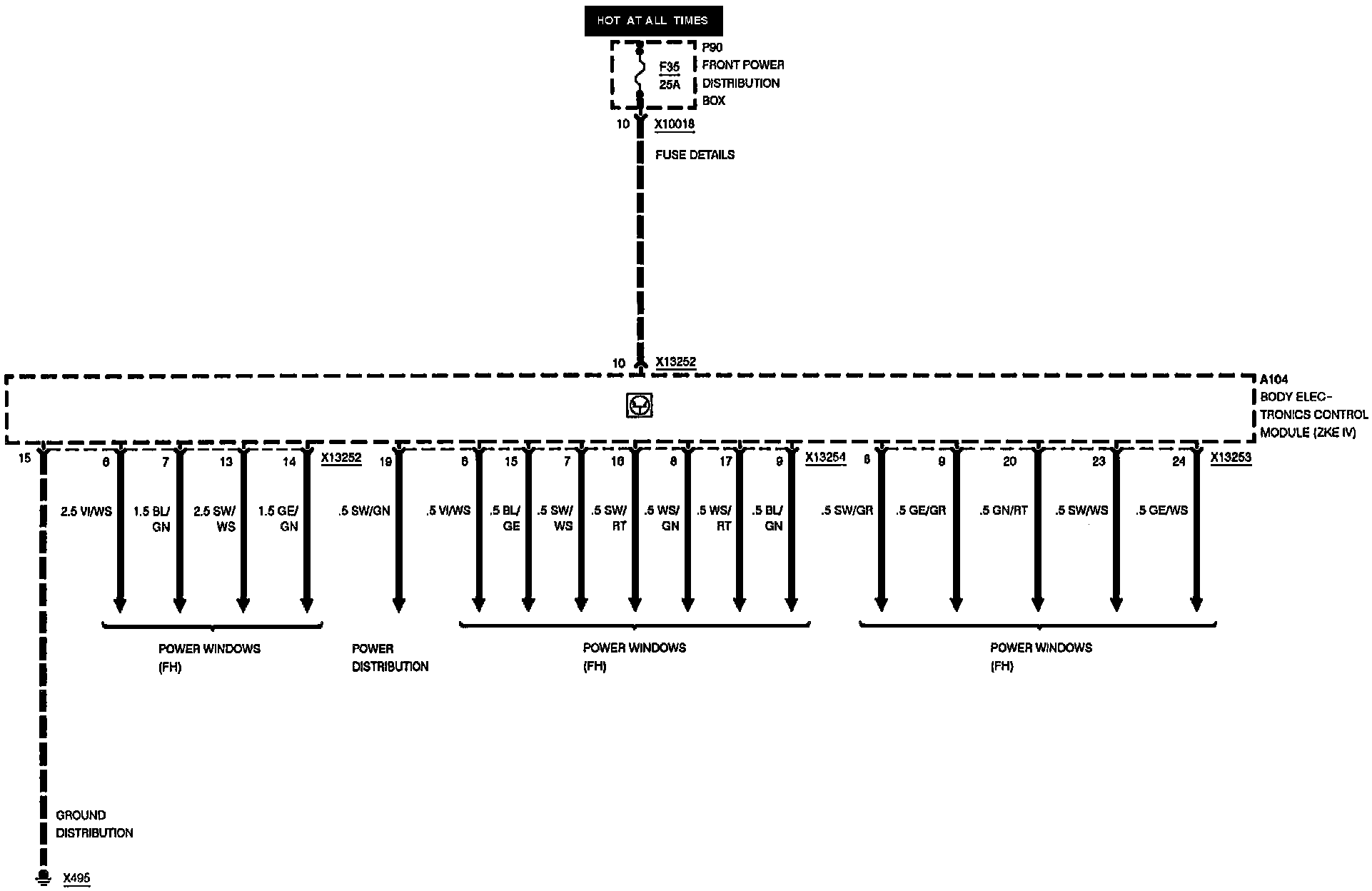

Central Body Electronics: (Part 3 Of 4):
Central Body Electronics: (Part 4 Of 4):
