Home >> BMW >> 1994 >> 325i Convertible (E36) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Light Switch Details >> USA

USA

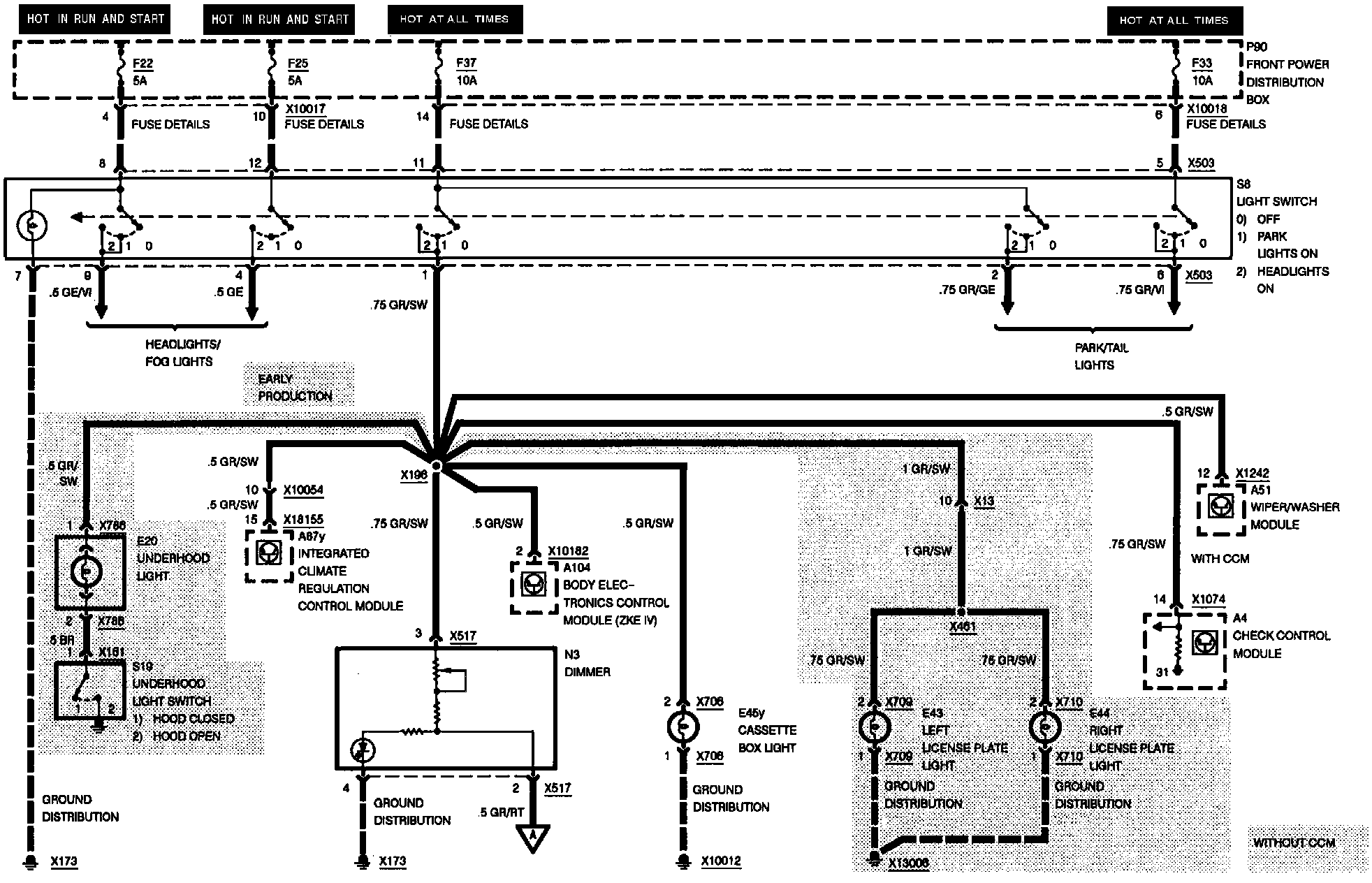

Light Switch Details:




Part (1 of 3)

Light Switch Details:




Part (2 of 3)

Light Switch Details:




Part (3 of 3)
