BMW
>>
1994
>>
325i Convertible (E36) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Central Control Module
>>
ZKE Central Locking (ZV)
>>
Early Production
Early Production

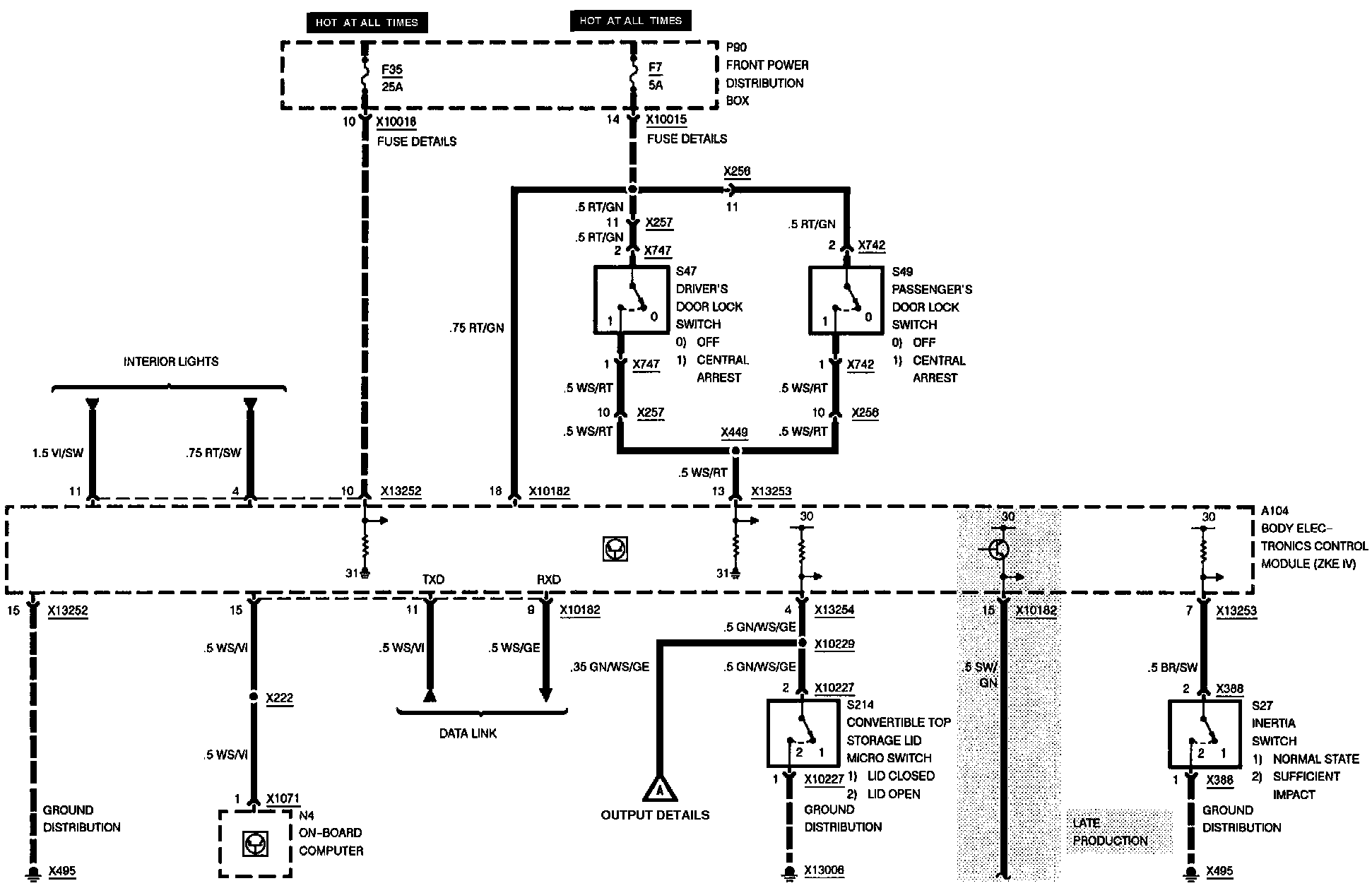

ZKE Central Locking (ZV): Early Production (Part 1 Of 2):
ZKE Central Locking (ZV): Early Production (Part 2 Of 2):
