Slip control (ABS/ABS + T)

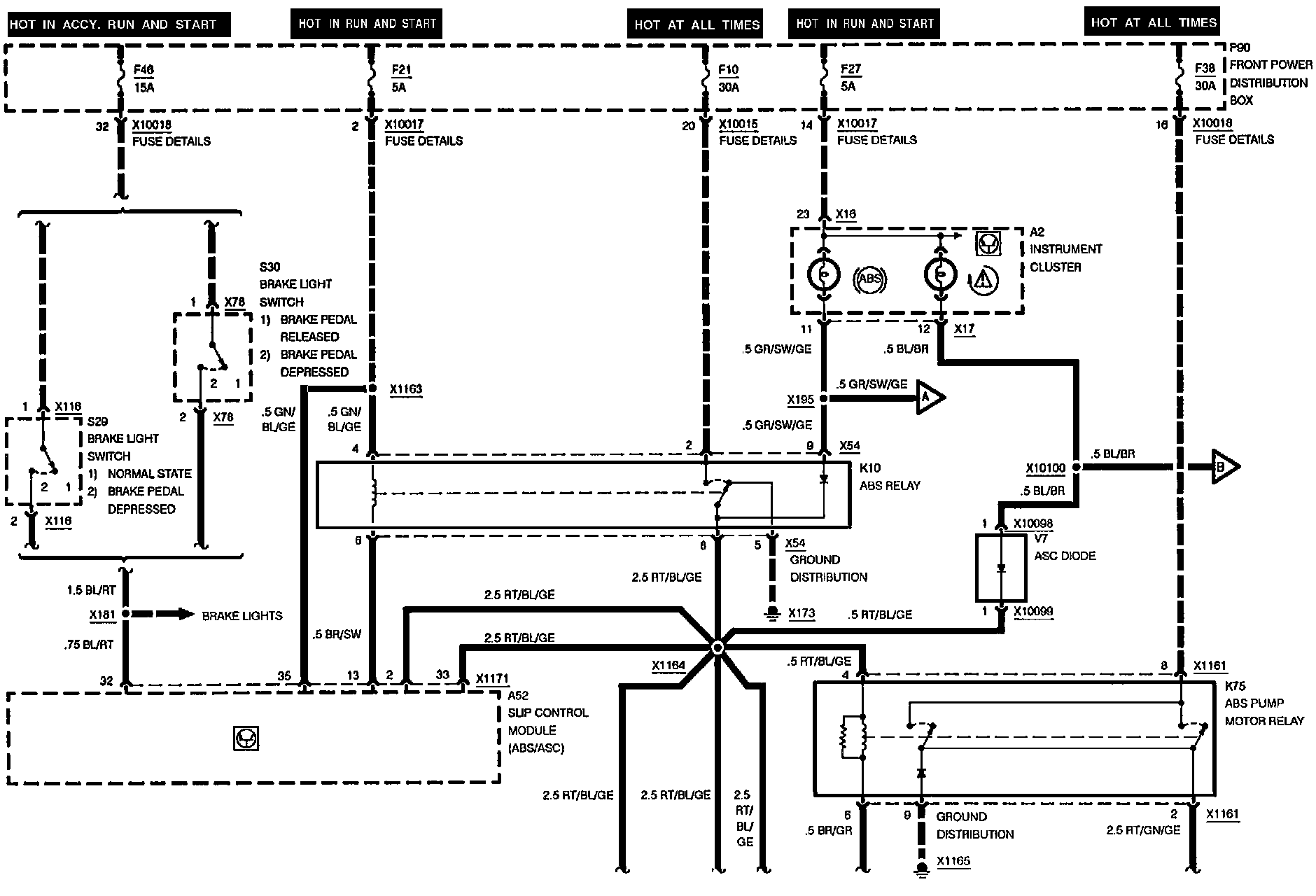

Slip Control (ABS/ASC+T): (Part 1 Of 5):

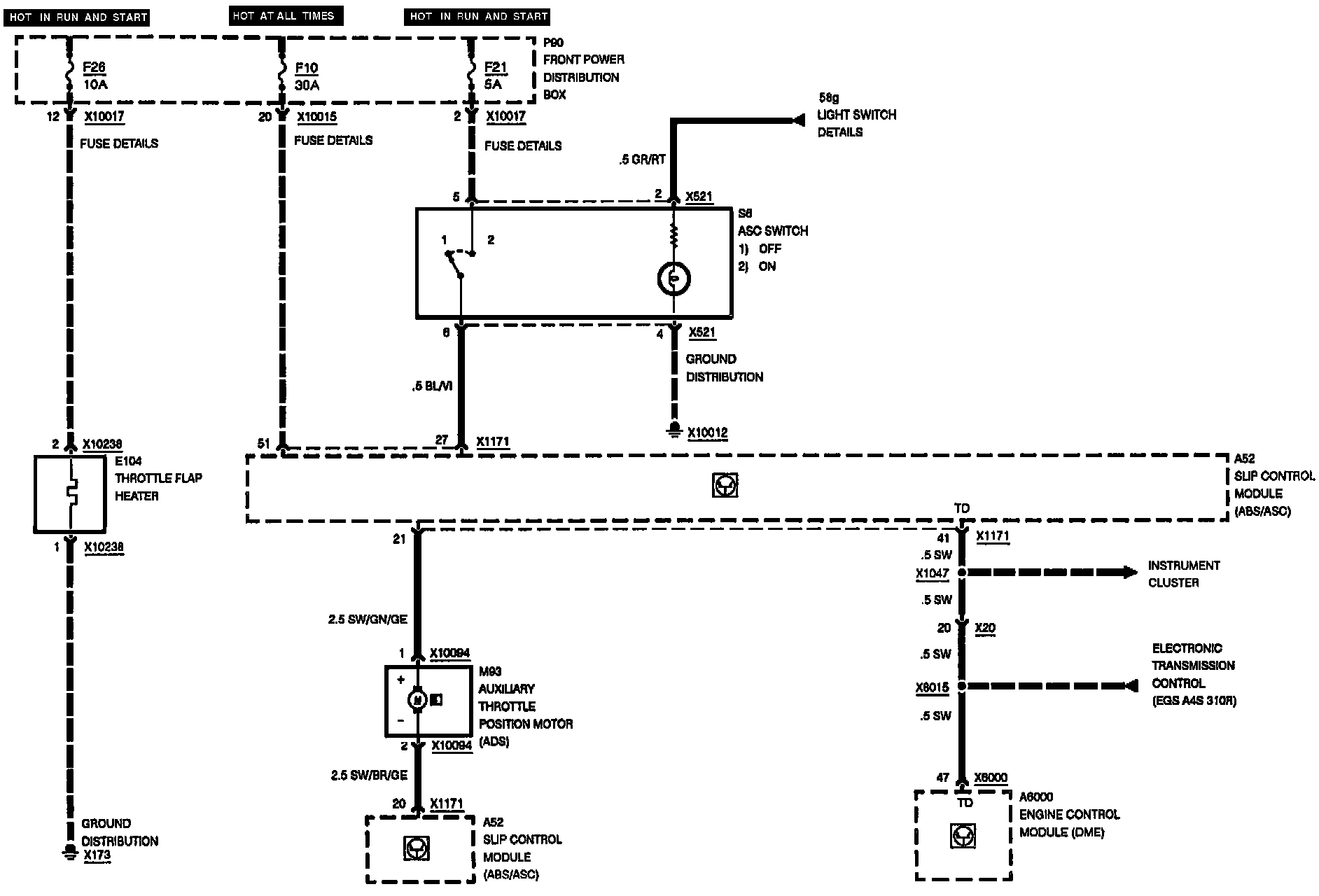

Slip Control (ABS/ASC+T): (Part 2 Of 5):




Slip Control (ABS/ASC+T): (Part 3 Of 5):




Slip Control (ABS/ASC+T): (Part 4 Of 5):




Slip Control (ABS/ASC+T): (Part 5 Of 5):
