Recirculation

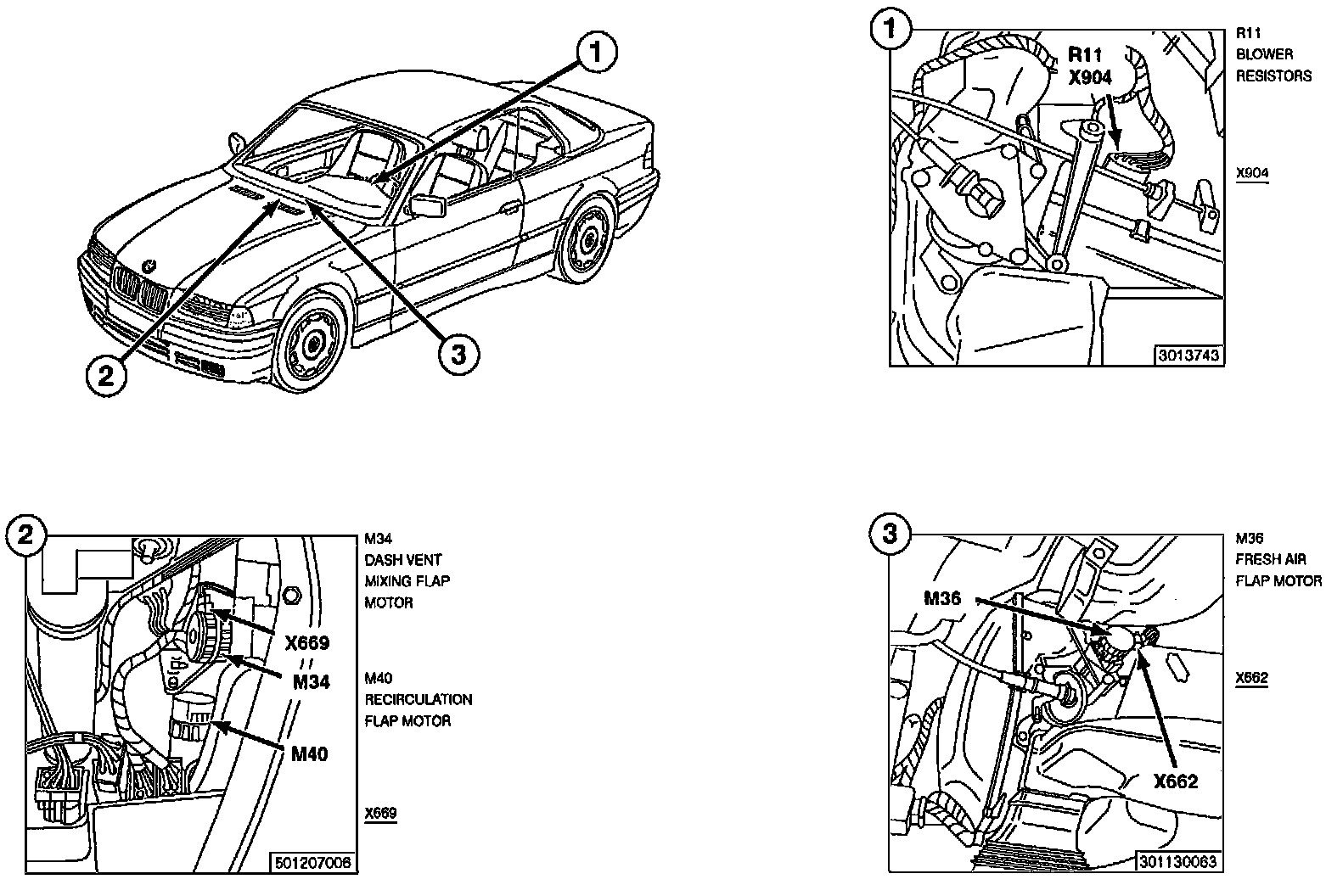

Component/Connector Location Views:

Figure : 2
Component ID : M40, Recirculation flap motor
Location : Below LH side of dash RH side of steering column
