Steering Column Stalk Switch

STEERING COLUMN STALK SWITCH







The BC display functions can be called up using the turn signal lever. Pressing the lever in will cause the BC functions to be displayed in the matrix. The functions are displayed in a rolling manner each time the lever is pressed.

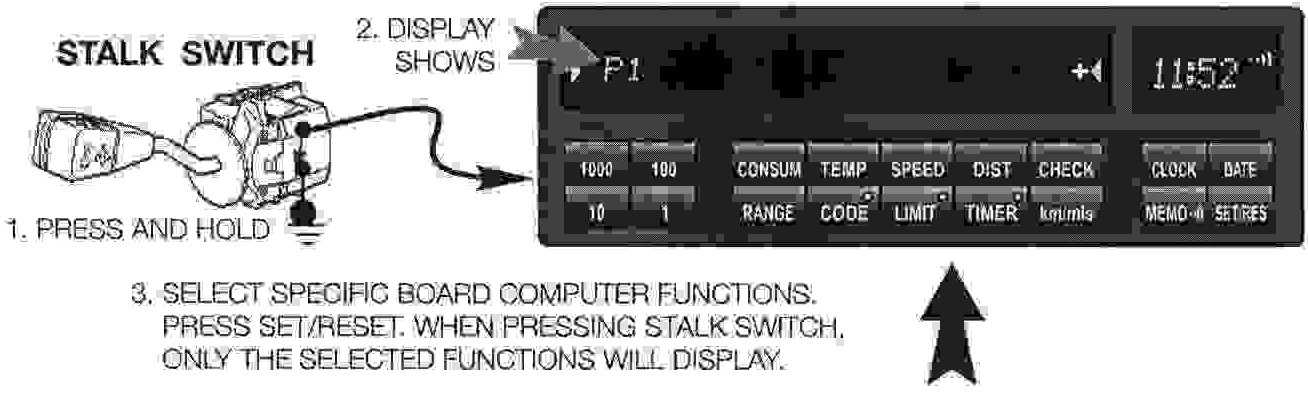

The remote operation can be programmed to display the number and sequence of BC functions as follows
- Press and hold the turn signal lever - P1 is displayed
- Press the desired functions and sequence of displays
- Press "SET/RES"to activate the program

To return the BC to its original display functions, press and hold the lever until "P1 "is displayed - then press the "SET/RES.
