MONITORED CIRCUITS

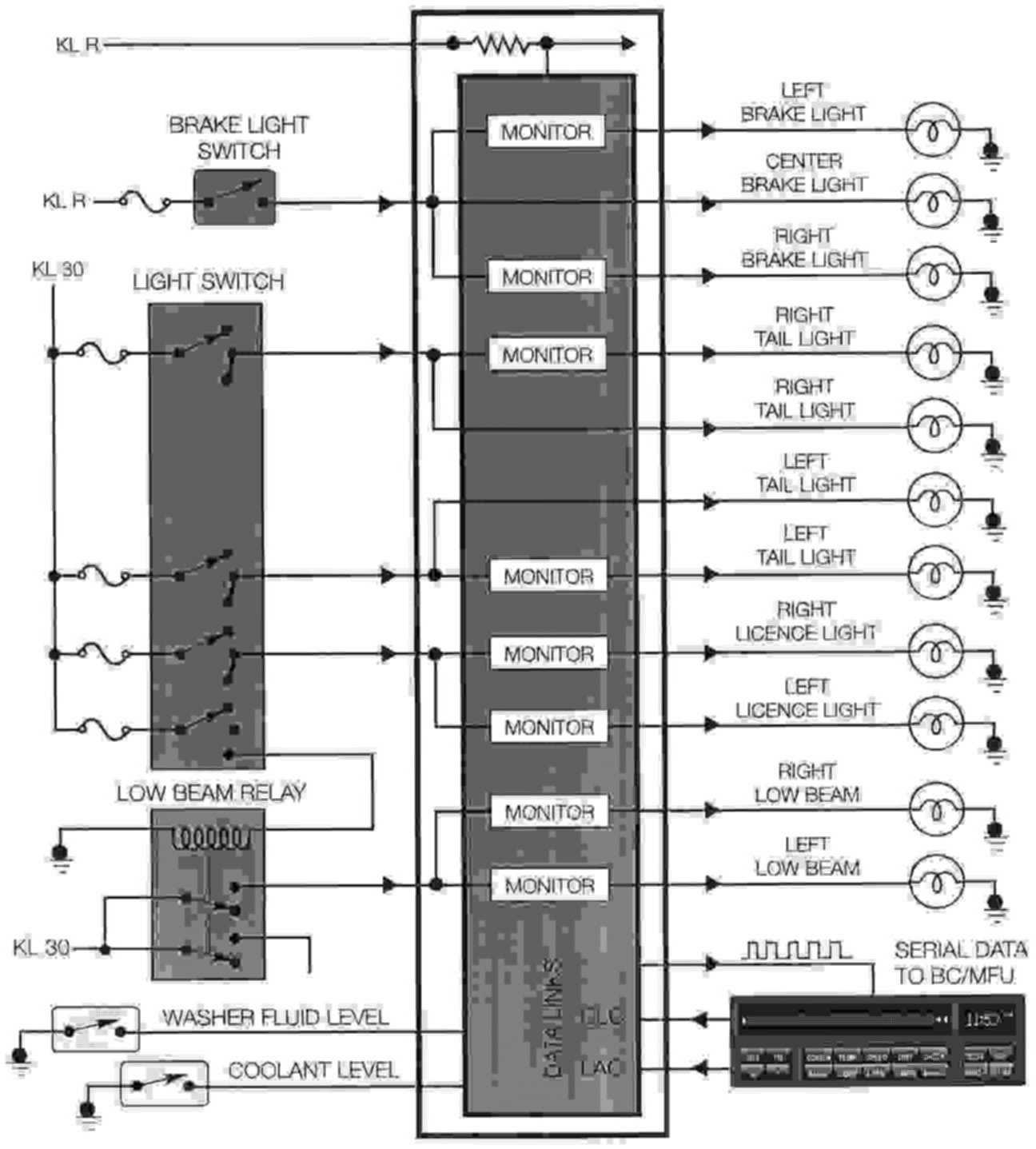

The following circuits are monitored by the check control system:
- Windshield washer fluid
- Low beam headlights
- Brake light circuit - including brake light switch
- Coolant level
- Tail lights License plate lights

The lighting circuits are warm monitored only - a fault will only be detected when the circuit is on. If a fault occurs in one of the monitored circuits, the check control will post the warning in the 20 digit matrix display and the check warning lamp will illuminate in the cluster depending on the priority of the failure.
