Home
>>
BMW
>>
1994
>>
325i Convertible (E36) L6-2494cc 2.5L DOHC (M50 TU)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Diagrams
>>
Electrical Diagrams
>>
With Early Production Jamb Switches
With Early Production Jamb Switches

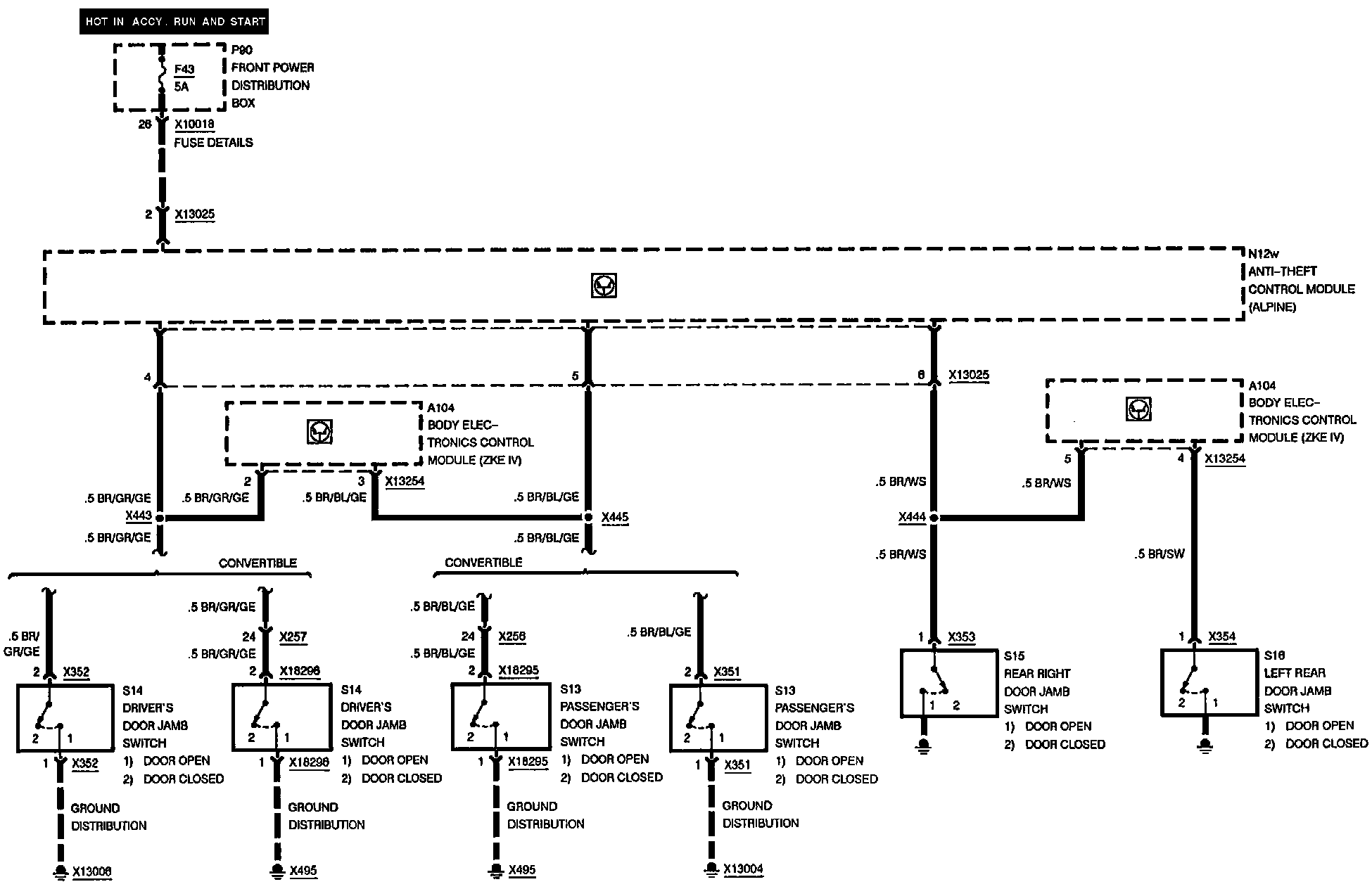

Anti-Theft System (Alpine):
Anti-Theft System (Alpine): Front And Rear Door Jamb Switches:
Anti-Theft System (Alpine):
