Replacing Rear Left or Right Door Window

Replacing Rear Left or Right Door Window

Remove rear door trim panel,

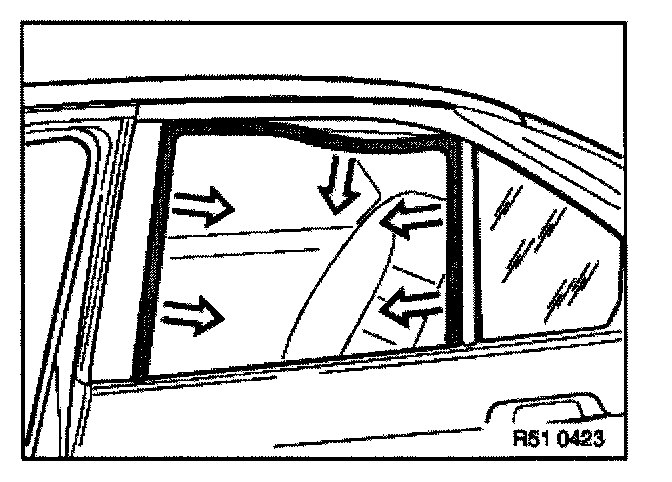

Remove finisher from window frame on rear door,

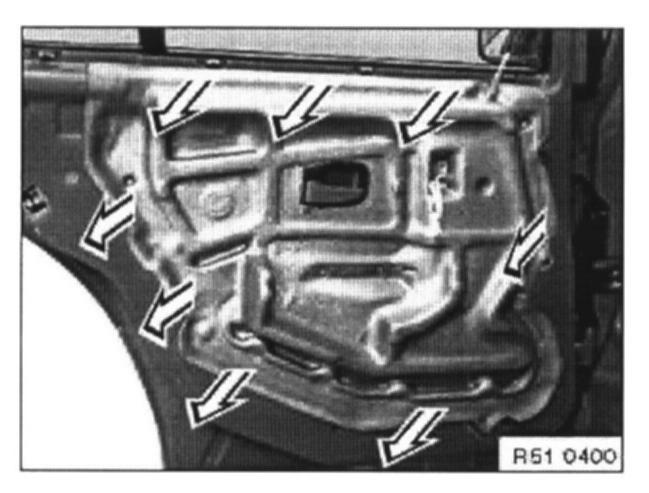

Remove acoustic insulation.







Installation:

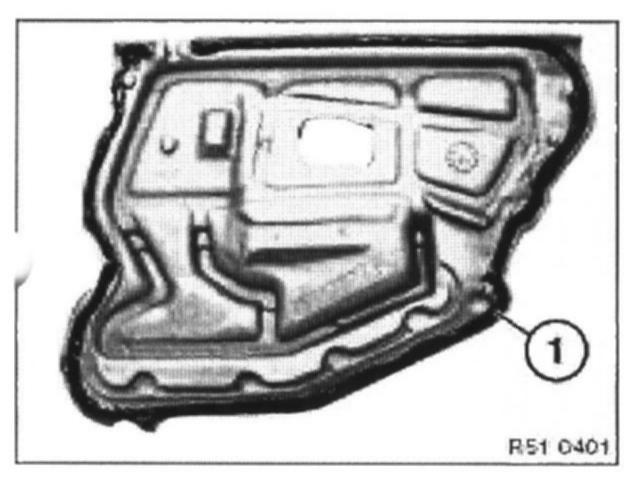

If necessary, cement butylene thread (1) (Sourcing Reference BMW Parts Service) to detached areas.







Pull inner recess cover off in upwards direction.

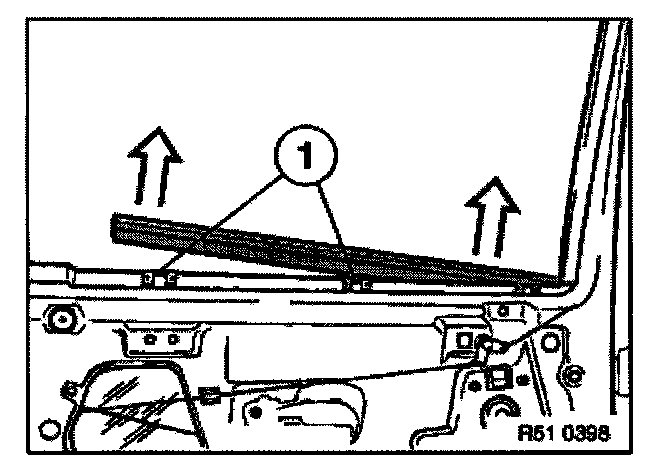

Remove clips (1).







Lower door window, unclip and place down in door.


CAUTION!
Pull connector off window regulator motor (risk of injury).


Installation:
Clip locking clip on again.

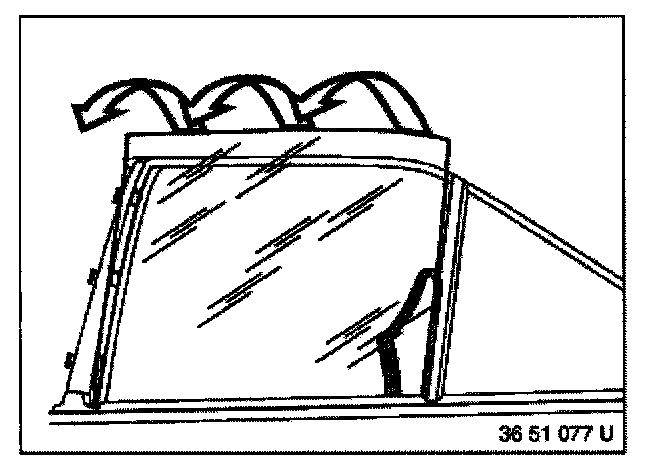

Remove rubber guide.

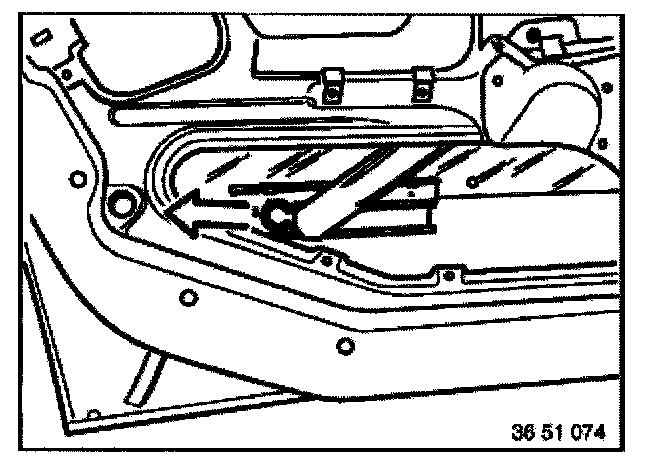

Remove window glass upwards and out.

Only replace:
Adjust limit stop.
