Replacing Left or Right Rear Vent Window

Replacing Left or Right Rear Vent Window (Compact/Coupe)

Remove trim panel from door pillar (B-pillar),


Only coupe:
Removing trim panel from rear roof pillar (C-pillar)








Only coupe:

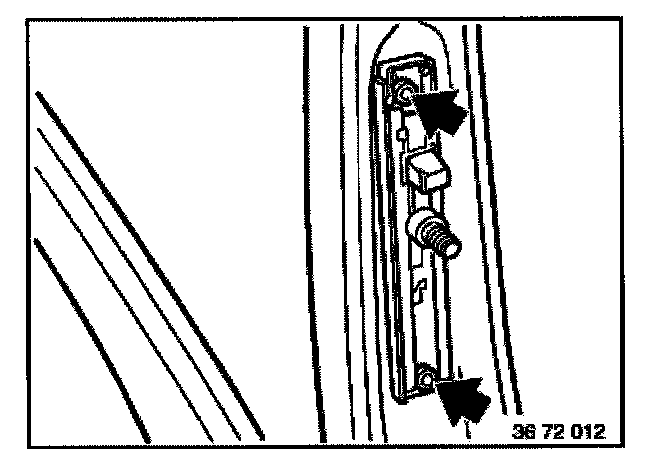

If necessary, unfasten screws.







Unfasten screw from vent window arm.

Installation:
Install correctly, securing nut and spacer from outside with adhesive tape if necessary merchandise.

Vent Windows:

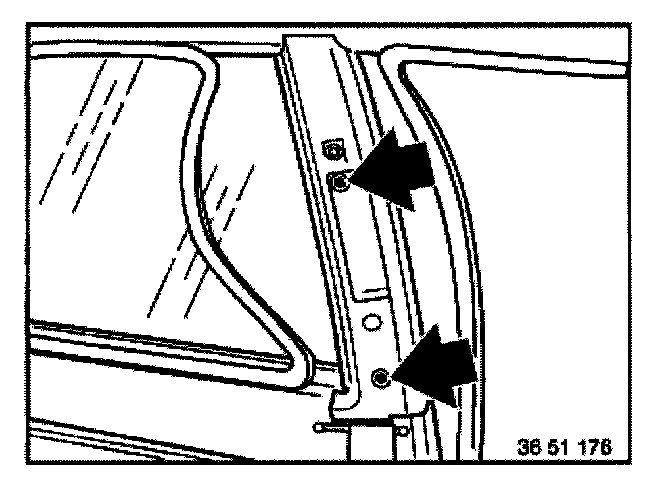

Unfasten screws and remove height adjustment unit.








Unscrew bolts and remove height control.

Installation:
Fit sealing washer to outside of both screws.

Vent Windows:

Only coupe:

Installation:

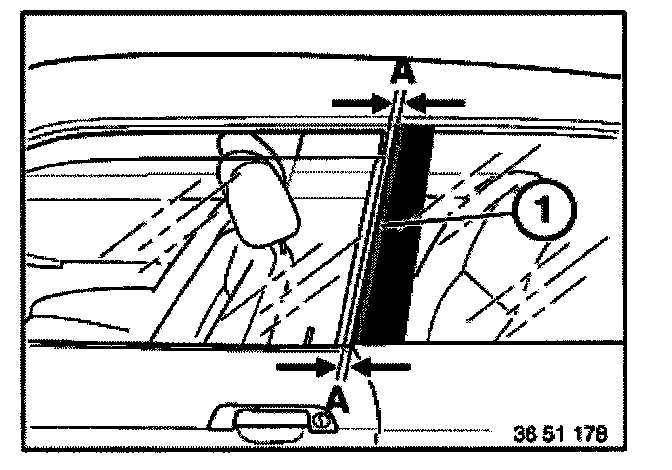

Attach strip seal (1) with dimension (A) to door window.

Distance (A) = 5 mm
