Replacing Lumbar Support Drive Unit (Power Sports Seat)

Removing and installing/replacing lumbar support drive unit (power sports seat, only in coupe)

Remove seat cushion,

Remove backrest shell,

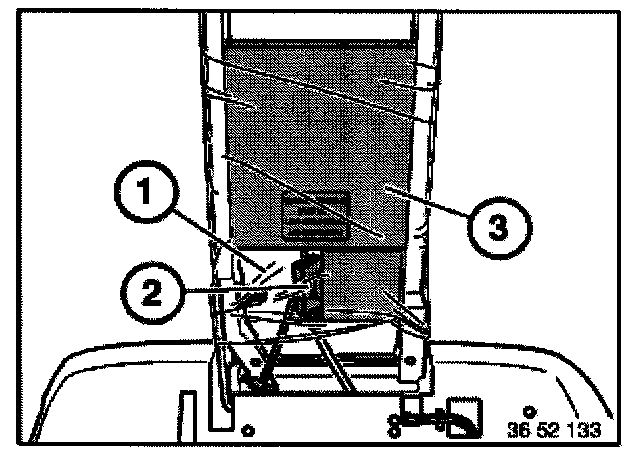

Pull off cloth sleeve (1) in upward direction.
Disconnect plug (2).
Remove lumbar support drive unit (3).

Installation:
Pull undamaged cloth sleeve (to prevent grinding noise) over backrest frame.







Installation:
Connect special tools 61 2 071 and 61 2 072 (adapter leads) on white plug and 12 V power supply source.

Check function.
