Rear Trim

Removing and Installing/Replacing Rear Trim (Coupe) On Left or Right


NOTE:
Open door and lower side window.
Remove side section of backrest on back seat,

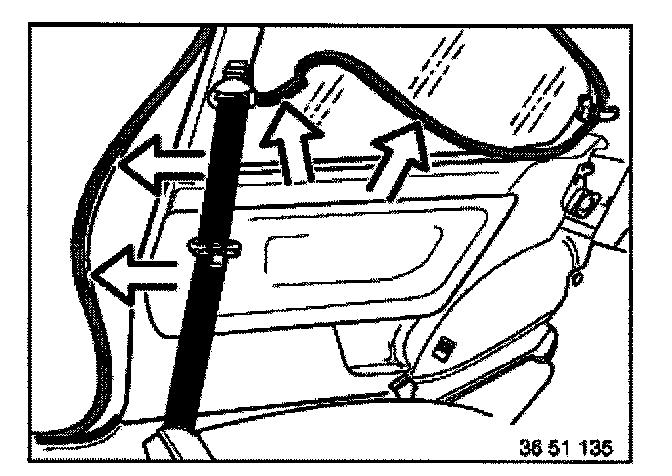

Pull off edge guard in area of side trim panel.

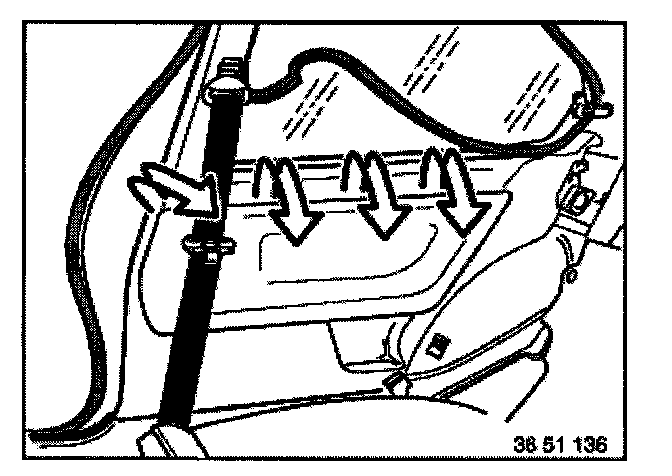

Unclip and pull side trim panel out in upwards direction.







Installation:

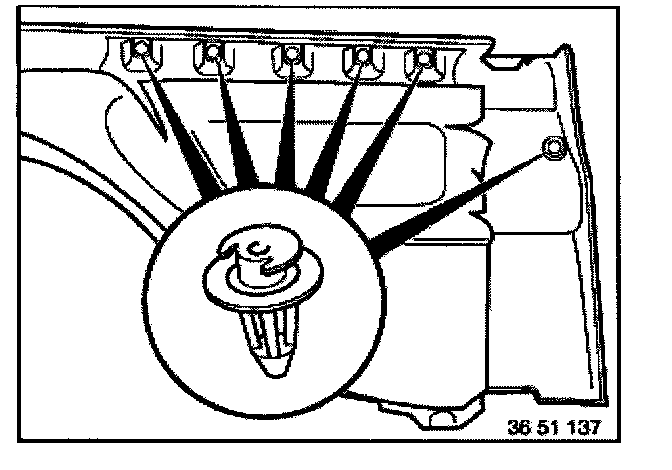

If necessary, replace damaged clips.
Immerse clips in water for a while to soften.
Insert clips in new side trim panel.
