B-Pillar

Removing and Installing/Replacing Left or Right Trim Panel For Door Pillar (Coupe)







Lift off cover in upwards direction and remove screws.







Press lower locking device upwards and remove lever.







Partially remove edge protection on B-pillar. Partially unclip side panel trim panel in area of B-pillar trim panel.

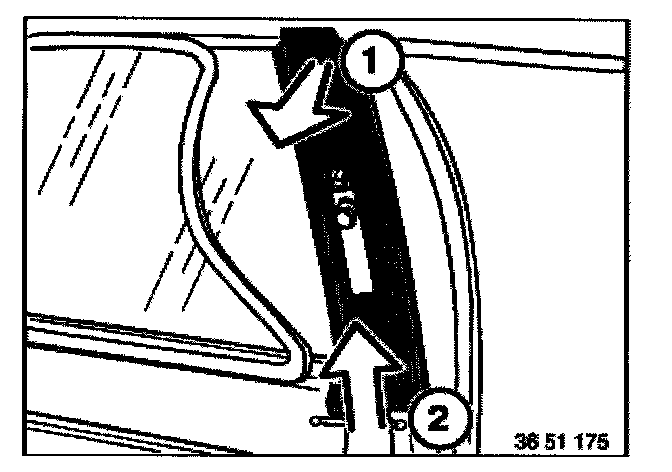

Unclip B-pillar trim panel at top (1) and lift it out upwards (2).
