Home >> BMW >> 1993 >> 525i Touring Wagon (E34/2) L6-2494cc 2.5L DOHC (M50 TU) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Mirror Memory Switch >> Diagrams >> Electrical Diagrams >> Electrical Diagrams

Electrical Diagrams

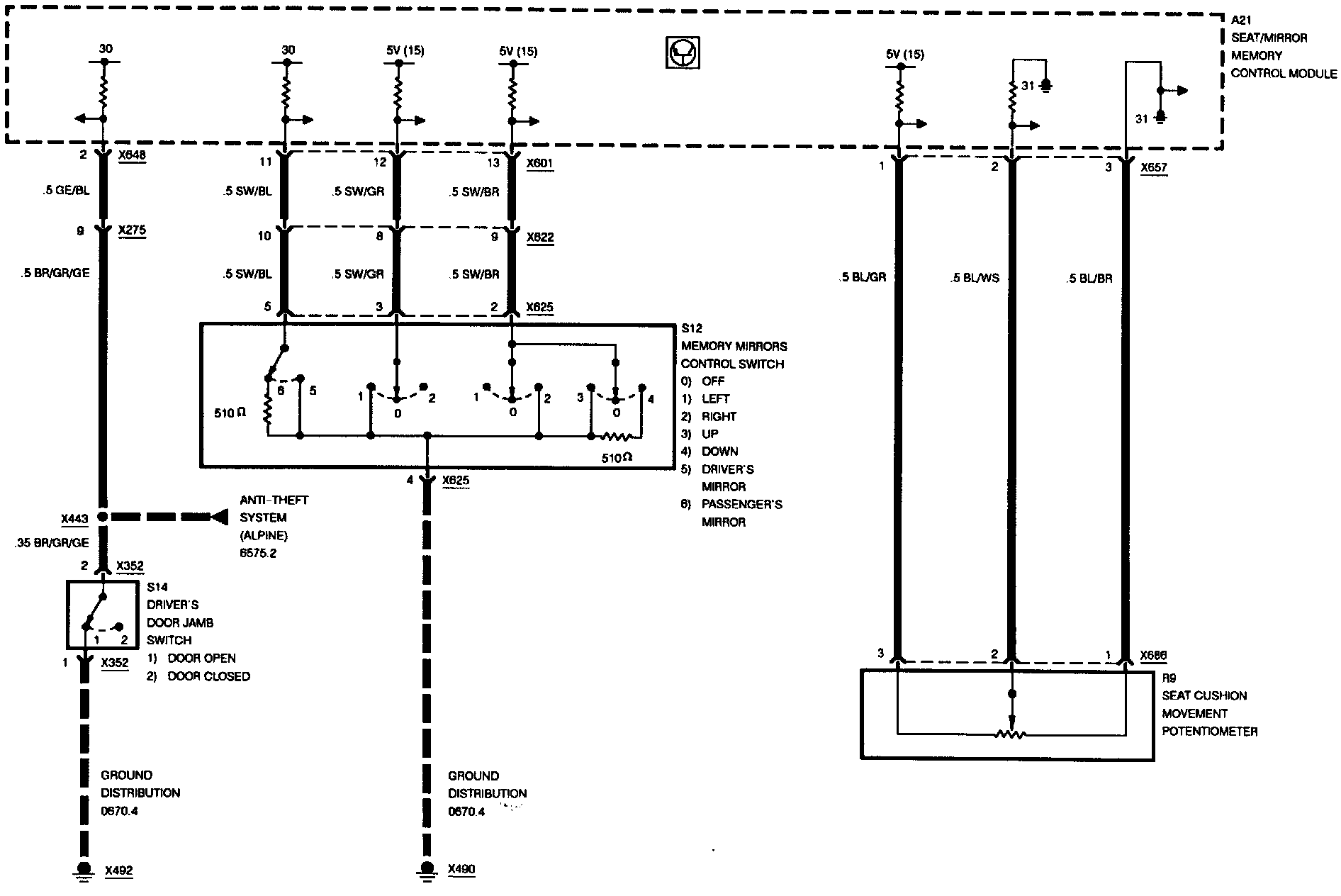

Seat/Mirror Memory System:

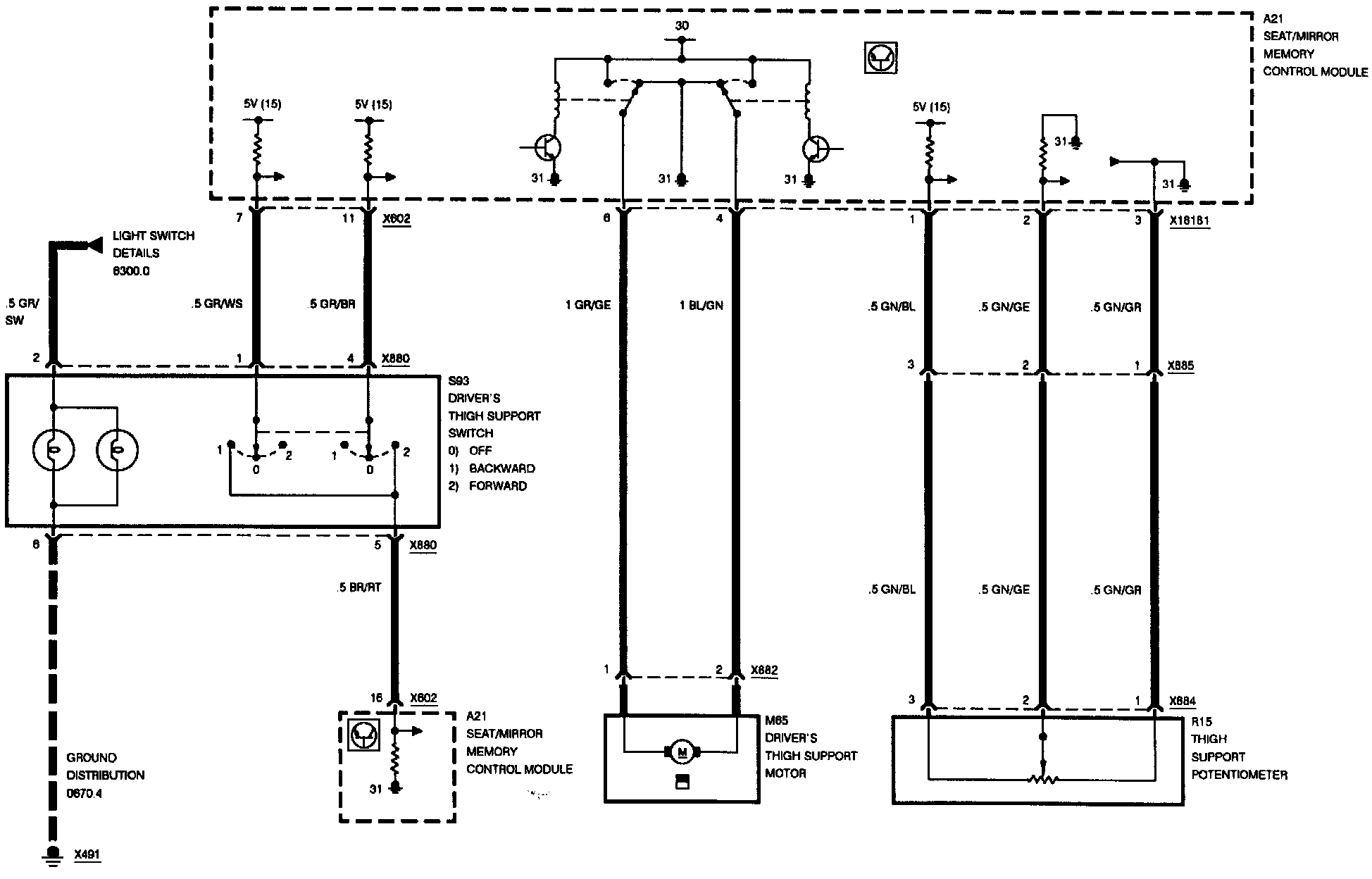

Seat/Mirror Memory System:

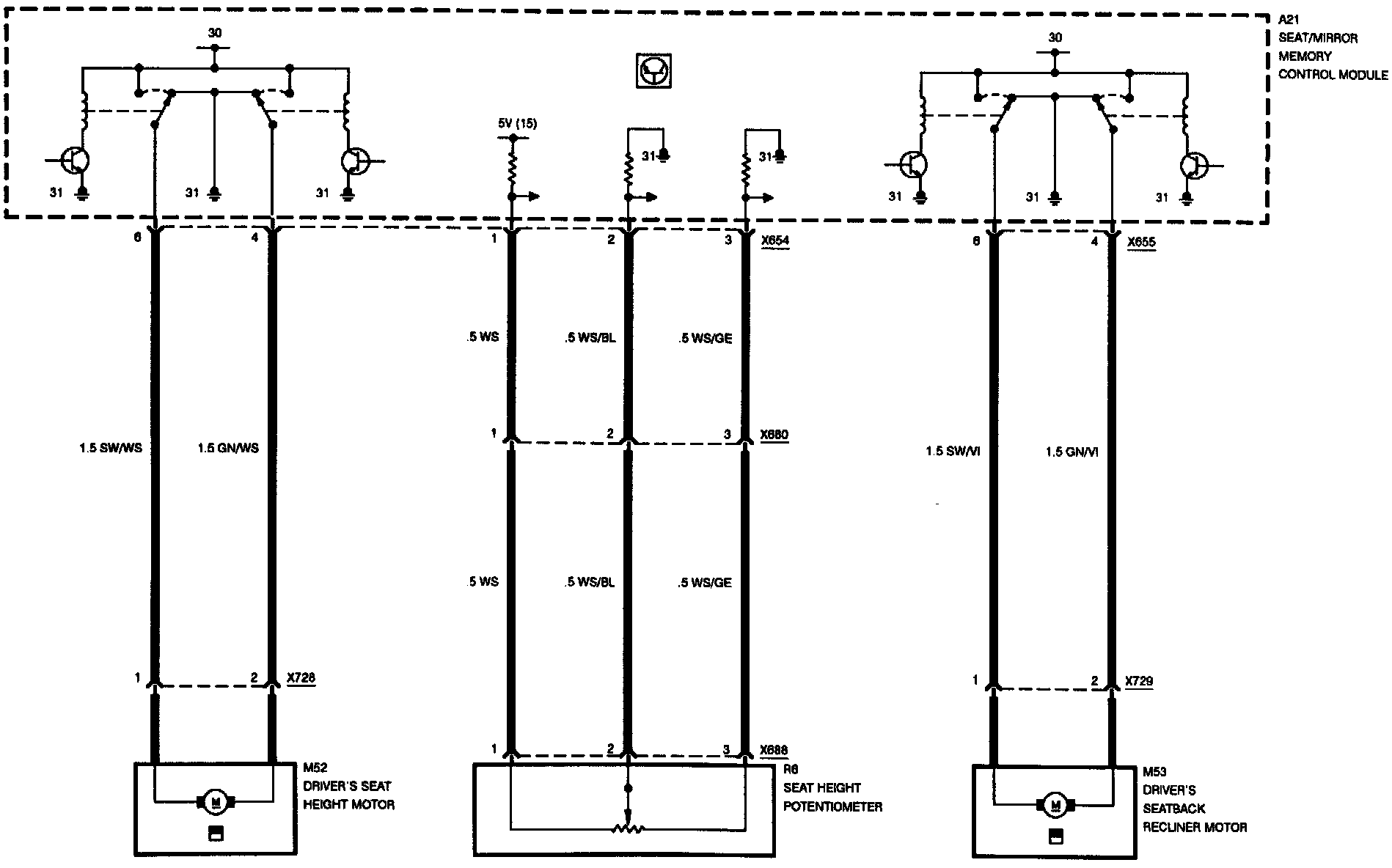

Seat/Mirror Memory System:

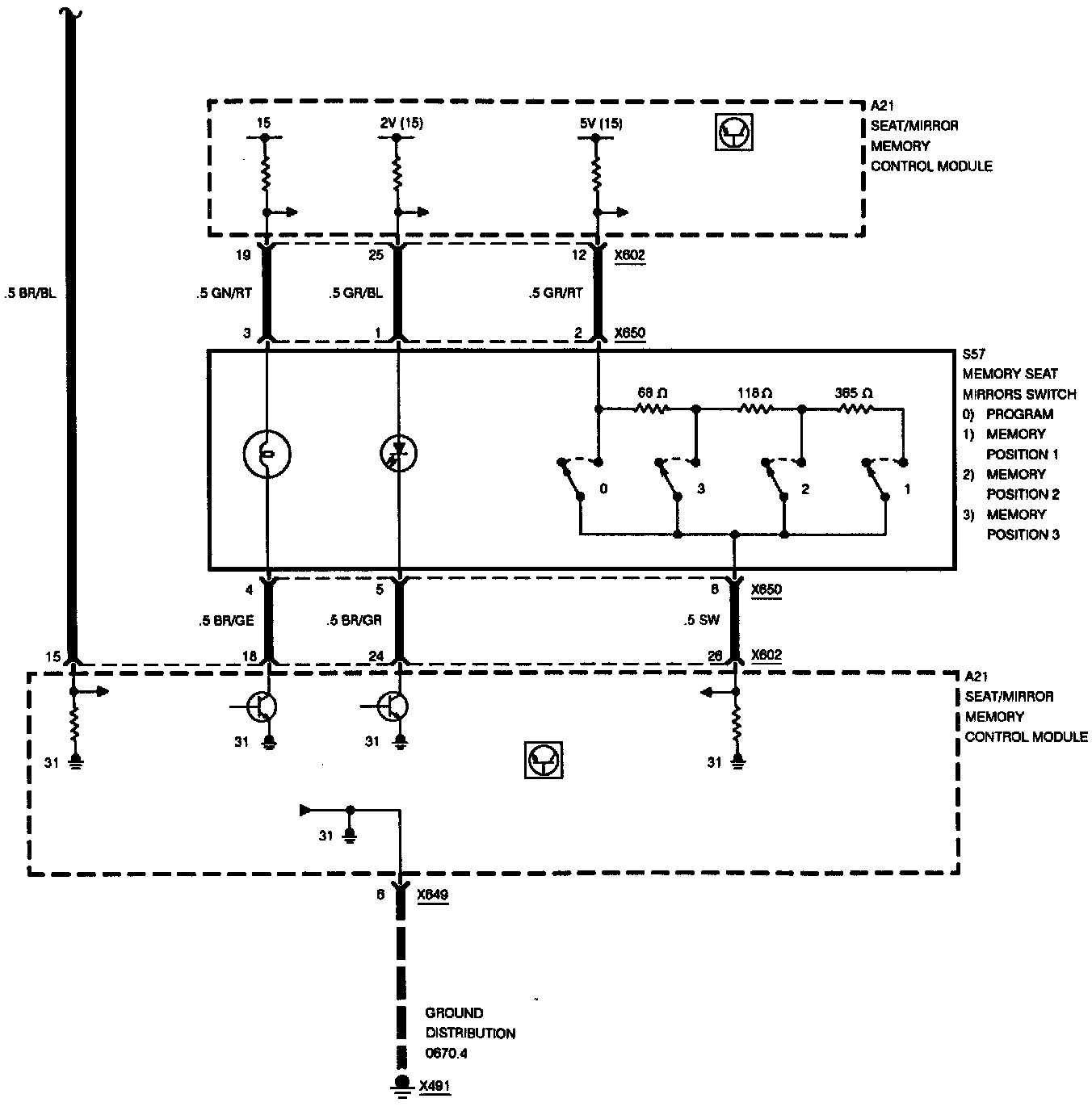

Seat/Mirror Memory System:

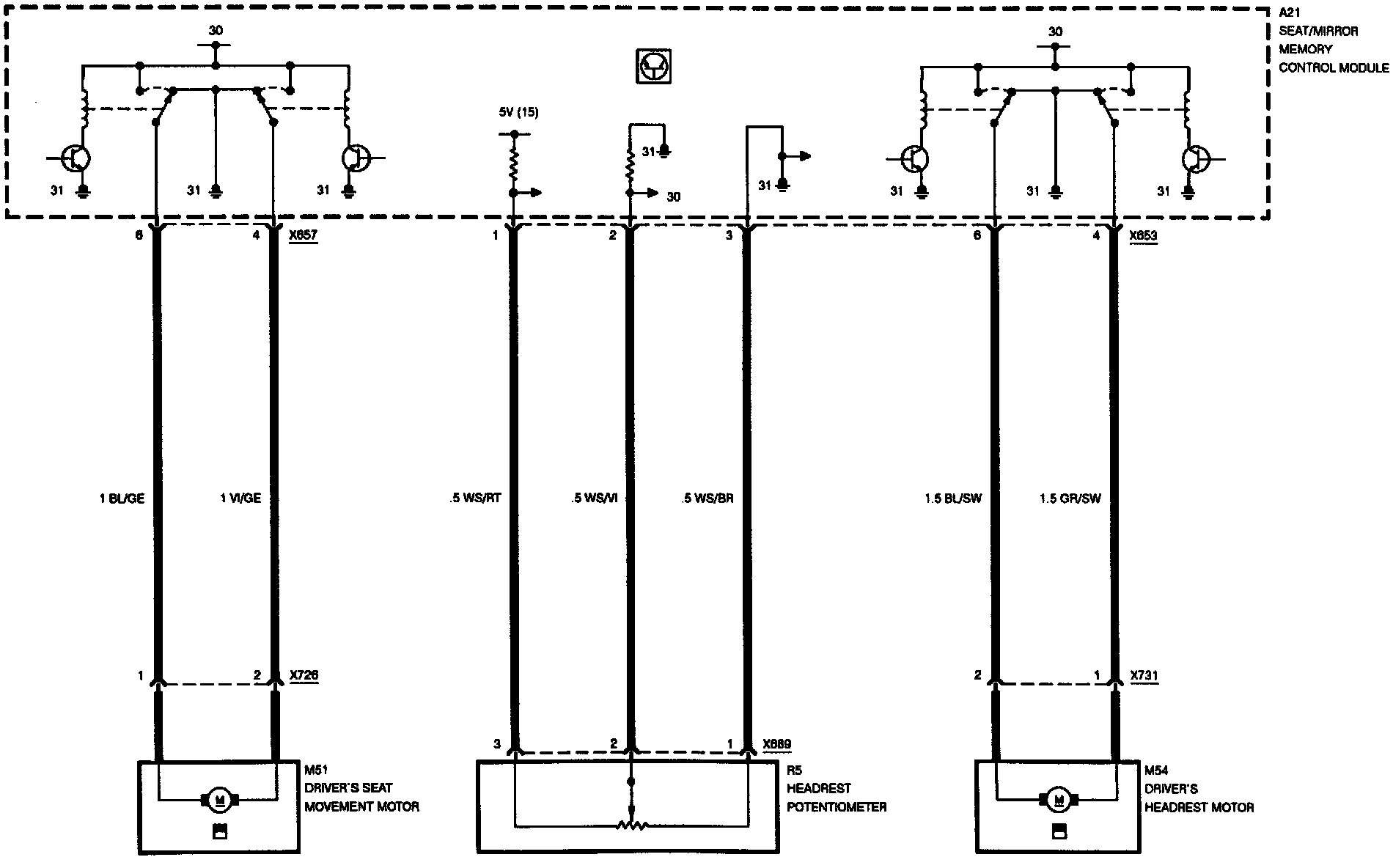

Seat/Mirror Memory System:

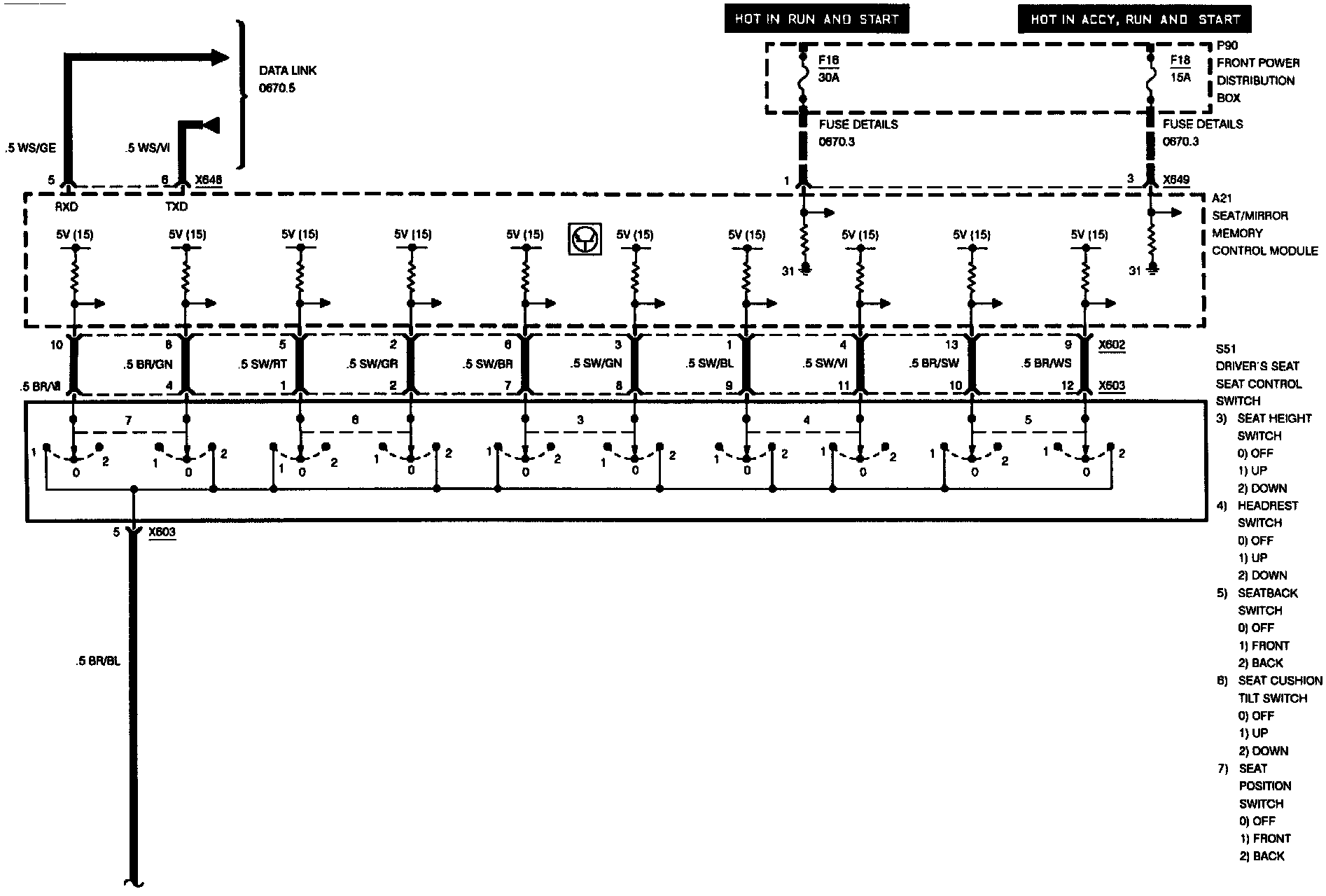

Seat/Mirror Memory System:

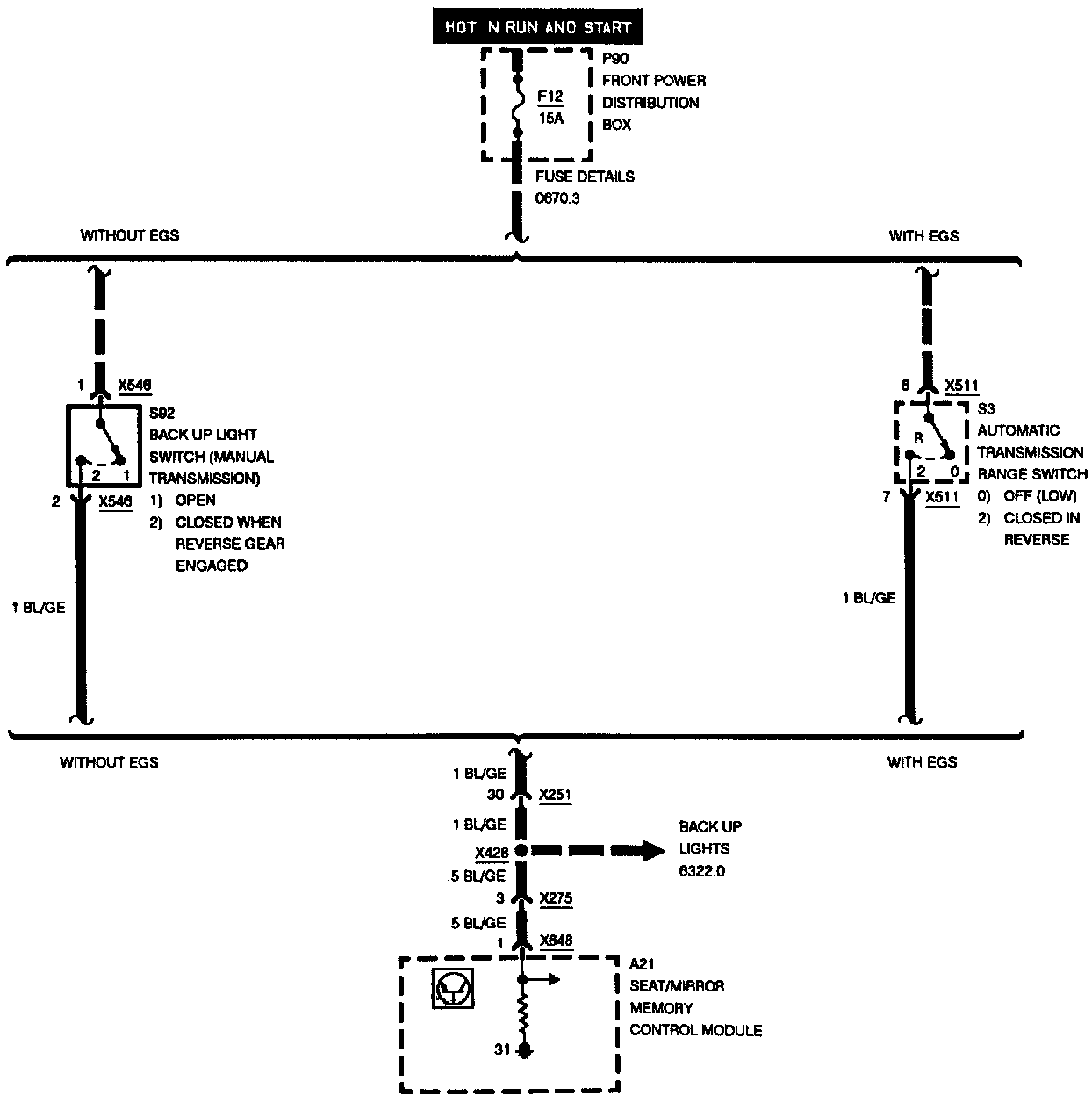

Seat/Mirror Memory System - With Sport Seat:

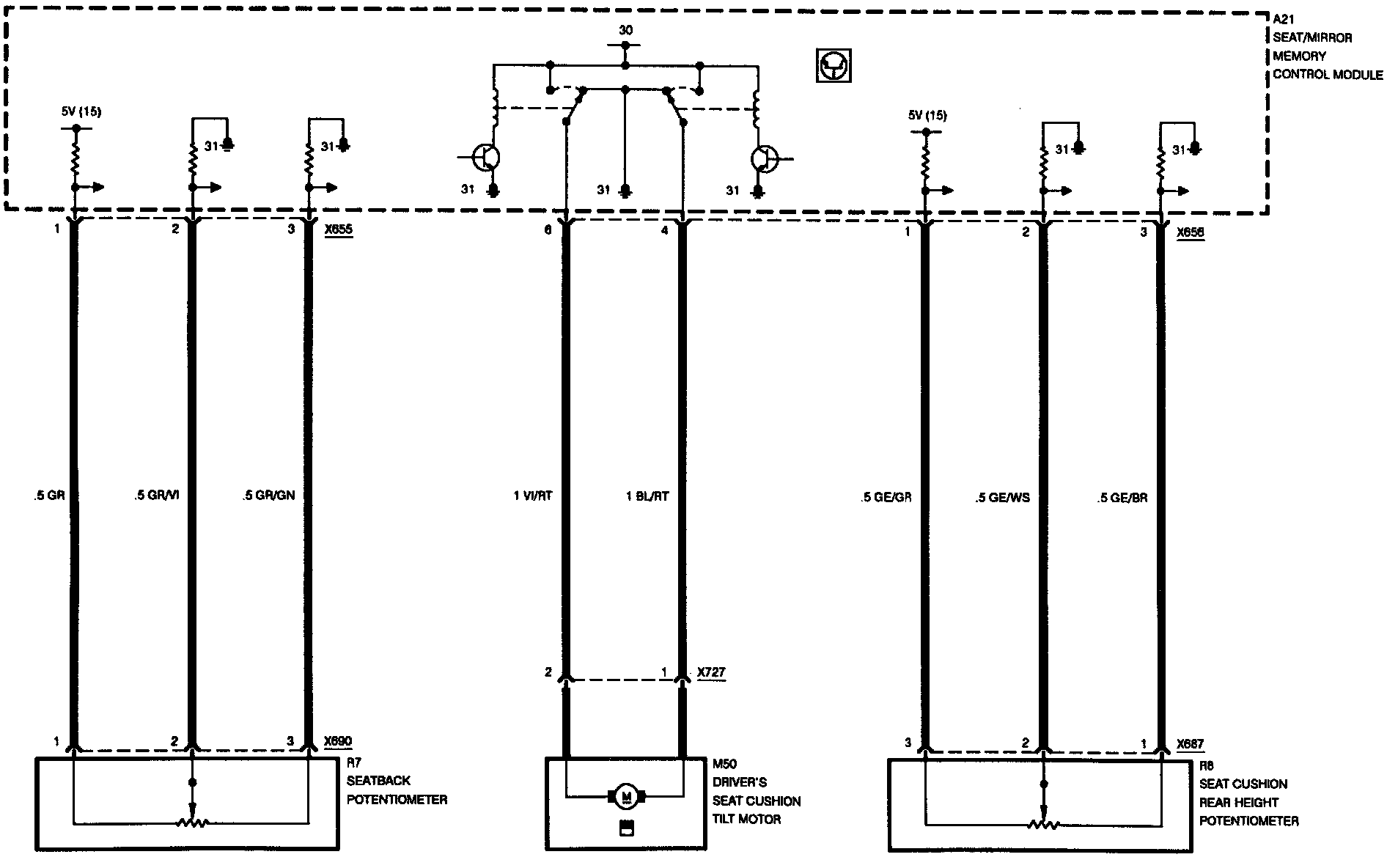

Seat/Mirror Memory System:
