Blower Motor Resistor: Locations

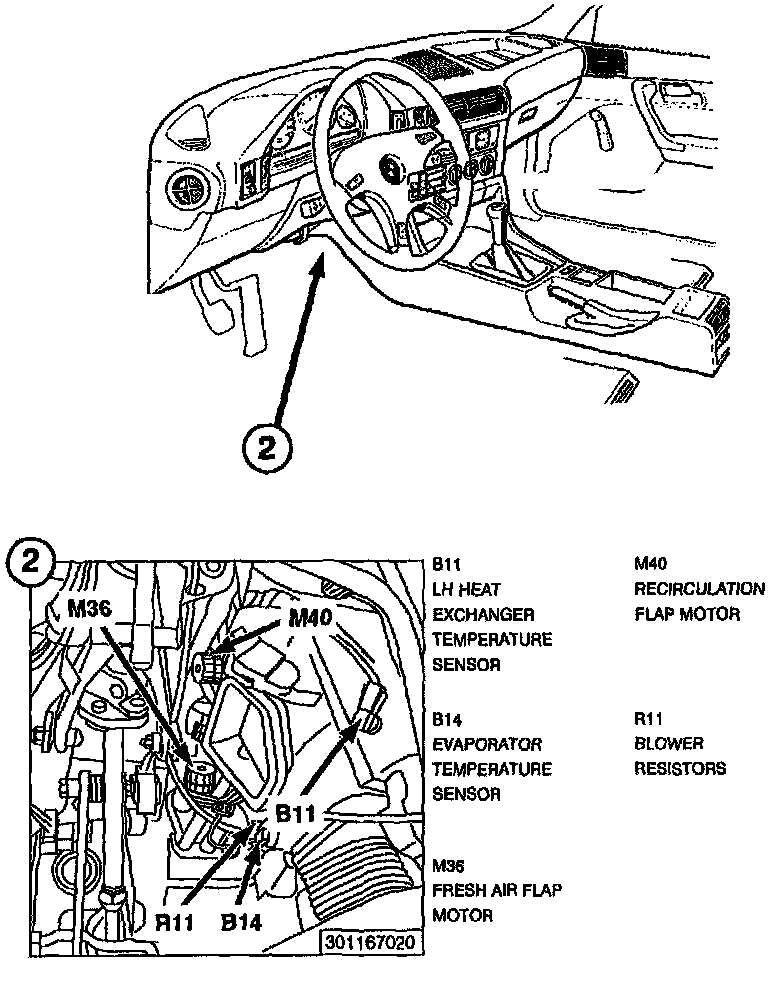

Component Location View:




Component Location View
Figure 2
Component ID R11, Blower Resistors
Location LH Side Of IHKR Plenum
