Home >> BMW >> 1993 >> 325i Convertible (E30) L6-2494cc 2.5L SOHC (M20) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Troubleshooting Charts For ZF 4HP-22/24 >> Part 1 of 6

Part 1 of 6

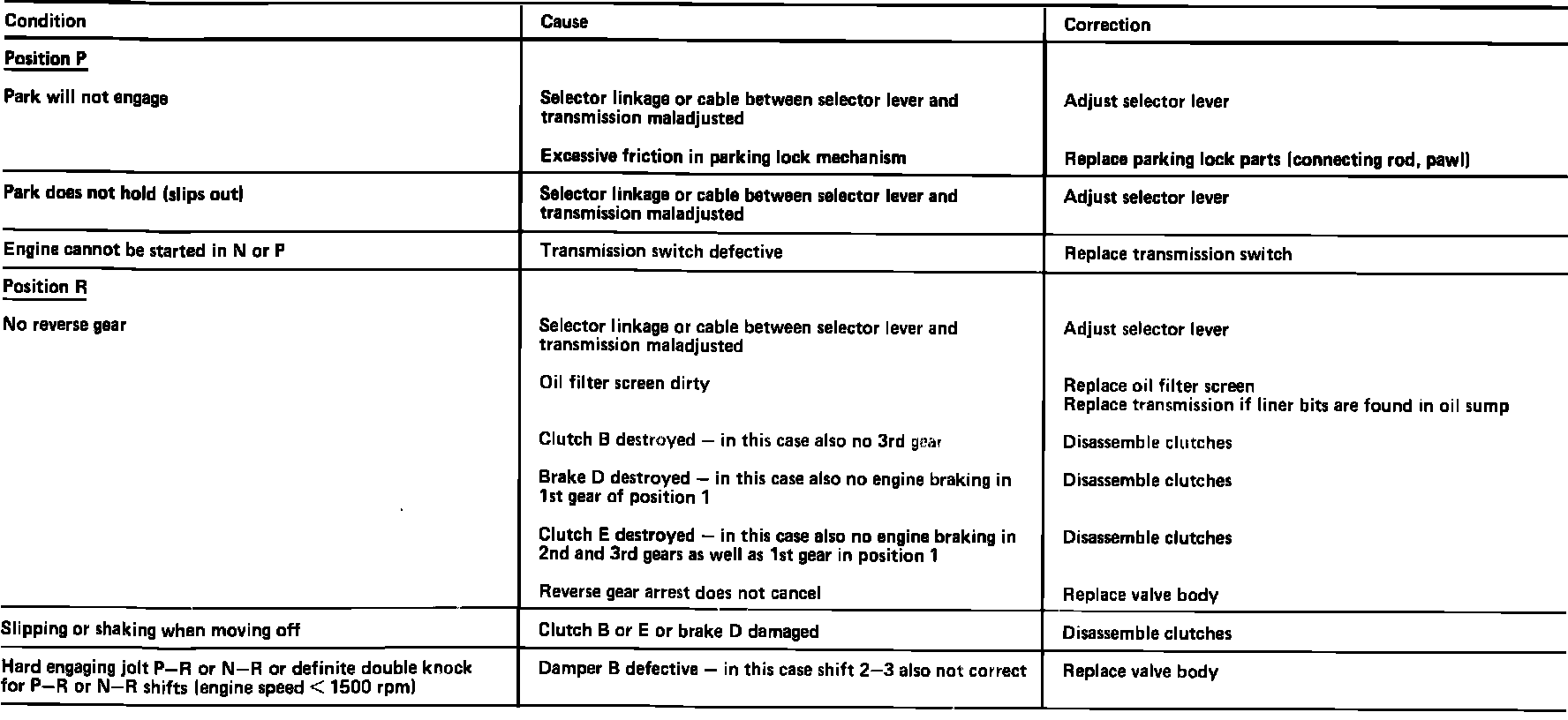

Fig. 1 Troubleshooting chart (Part 1 of 6). ZF 4HP-22 & ZF 4HP-24:
