Component Tests and General Diagnostics

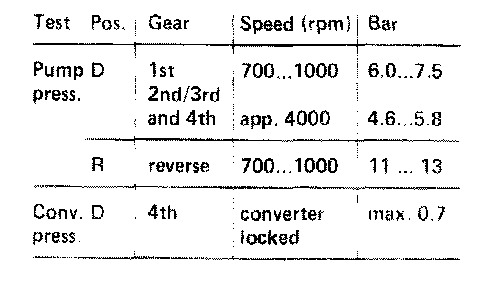

Checking Hydraulic Pressure Valves




- Connect hose 24 0 021 with pressure tester 133061

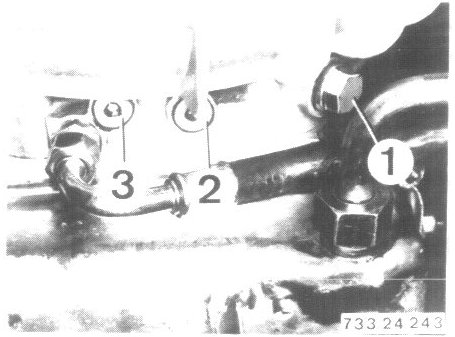

- Remove pertinent plugs for testing
1 Pump pressure
2 Clutch A
3 Converter pressure

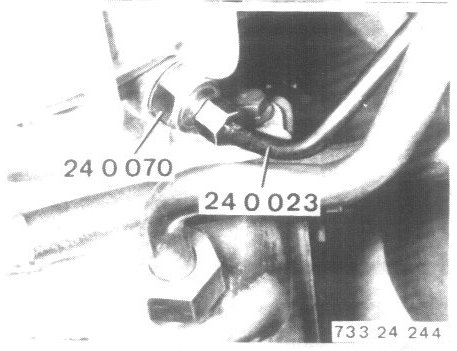

A) Pump Pressure:
- Install adapter 24 0 070 with seal in transmission
- Connect elbow pipe 24 0 023 in conjunction with hose 24 0 021

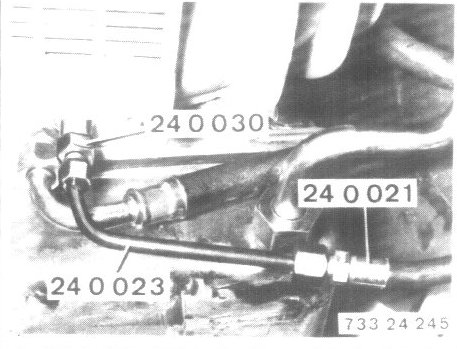

B) Converter Pressure
- Install adapter 24 0 030 no transmission
- Connect elbow pipe 24 0 023 in conjunction with hose 24 0 021







- Correct oil level in selector lever position P with transission at operating temperature and engine running at idle speed.
- Car parked on level floor.
- The oil level of a transmission at operating temperature approx. 80°C (175°F)must be between both marks
- Amount of oil between mm. and max. marks approx. 0,3 Liter (0,6 pint)
- Never wipe off oil dipstick with a cloth losing lint

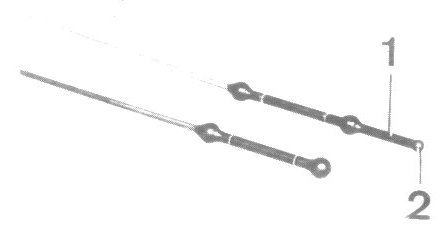

An oil dipstick with a longer measuring tip (1) is standard since 2.85.
This produces an earlier display of the oil level in the transmission
The oil level should not be below ball (2) after a test drive and an oil temperature of approx. 40°C (105°F).
The oil level should be between the mm. and max. marks at an oil temperature of approx. 80°C (175°F).
Correct oil level if necessary

NOTE: The new oil dipstick can be installed retroactively.




IMPORTANT !
Oil Level Too High.
- Strong foaming. splash lots high temperature when driving fast, oil lost via vent.
Oil Level Too Low

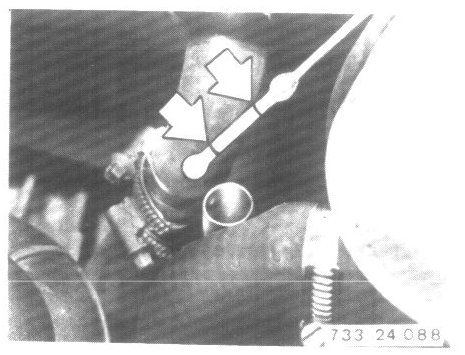

- Valves rattling. foaming, engine slipping when driving in curves, general operating disturbances Only pour in transmission oil with Special Tool 24 0080 (funnel)
