Version With Shift Rod

REMOVING AND INSTALLING SELECTOR LEVER COMPLETE WITH BASE
- Version with Shift Rod -

Remove center console. Service and Repair

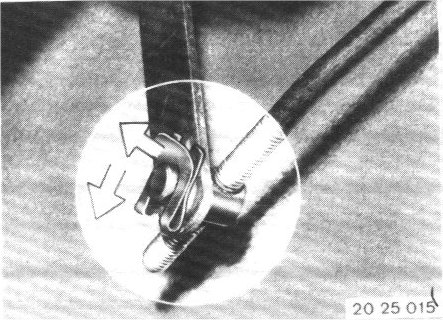

Lift out retainer.
Disengage shift rod.

Installation:
Adjust shift rod.

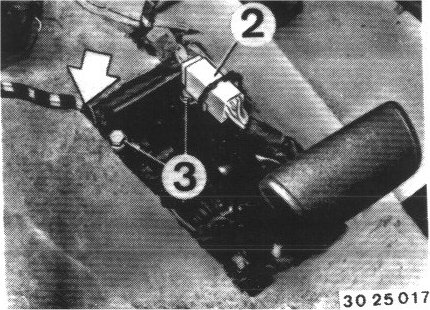

Disconnect plug (2).
Remove bolts (3).
Remove base.

Installation:
Be careful nOt to pinch the wire harness




Installation:

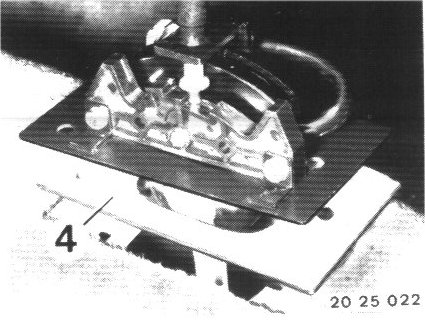

Insert insulator (4).
