Removing and Installing Centrifugal Governor

Removing and Installing Centrifugal Governor




- Remove transmission extension. Service and Repair
BMW 325 ix:
- Remove transfer box.
- Pull off parking lock gear with centrifugal governor




Version with Spacer (1):
- Pull off parking lock gear with Special Tool 23 1 050.
Installation:
- Heat bearing race (1) to approx. 80°C (175°F) with a hot air blower and slide on to output shaft.

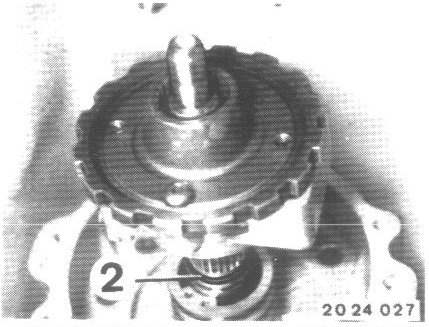

- Replace seal (2).
- Slide on parking lock gear with centrifugal governor.




BMW 325 iX:

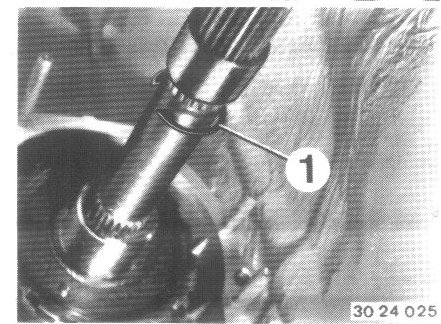

- Lift out snap ring (1) and push forward.
Installation:
- Replace snap ring.

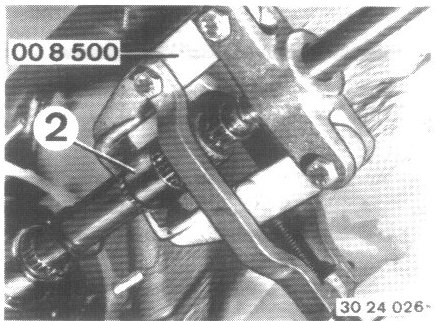

- Pull bearing sleeve (2) off of output shaft with Special Tool 00 8 500.




Installation:

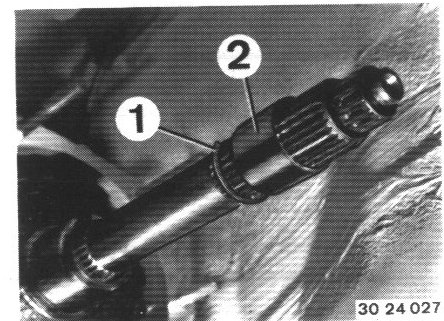

- Install snap ring (1) in groove of output shaft.
- Heat bearing sleeve (2) to approx. 80°C (175°F) with a hot air blower and push on to output shaft against the snap ring.

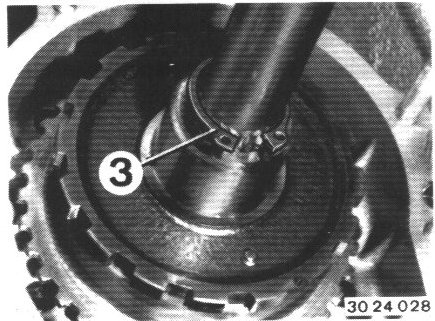

- Lift Out circlip (3).
- Pull off parking lock gear.
EH Transmission.
- Remove parking lock pawl. Service and Repair
