Fluid Filter - A/T: Service and Repair

Removing and Installing Oil Filter Screen on Valve Body




- Remove oil sump. Service and Repair
- Detach oil filter screen.
Installation:
- Clean oil filter screen.
- Replace an oil filter screen when it starts to gum up with a brown, burnt residue.
- Tightening torque: Mechanical Specifications

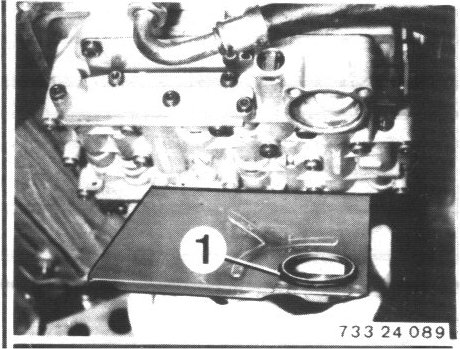

- Check rubber ring (1), replacing if necessary.




Installation:

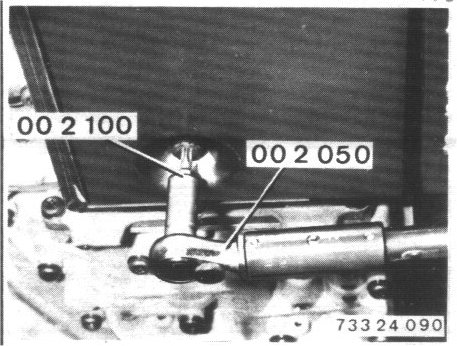

- Tighten Torx bolts with Special Tools 00 2 100 and 002 050.
- Tightening torque: Mechanical Specifications
