Removing and Installing Starter

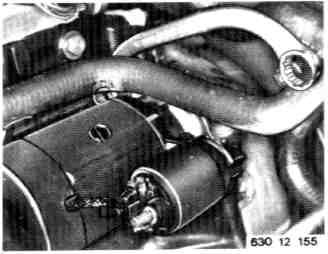

- Disconnect positive terminal on connector.





- Take off air cleaner with air flow sensor.
- Remove intake manifold and air cleaner.

Since 1986 Models:

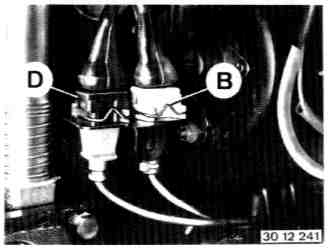

- Disconnect plugs for reference mark sensor B (gray) and speed sensor D.

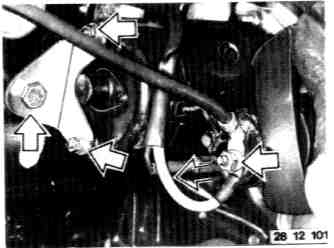

- Unscrew support and lines.





- Drain coolant.
- Disconnect heater hoses.

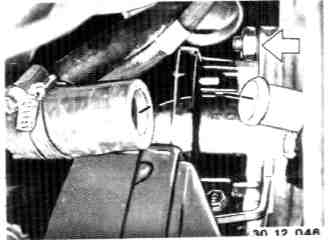

- Unscrew starter mounting nuts.
- Bottom nut could also be unscrewed from below for better accessability.

Installation Note:
- Pour in coolant.
- Bleed cooling system.





- Unscrew nuts with a starter wrench.
