Home >> BMW >> 1993 >> 325i Convertible (E30) L6-2494cc 2.5L SOHC (M20) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> Auto Trans

Auto Trans

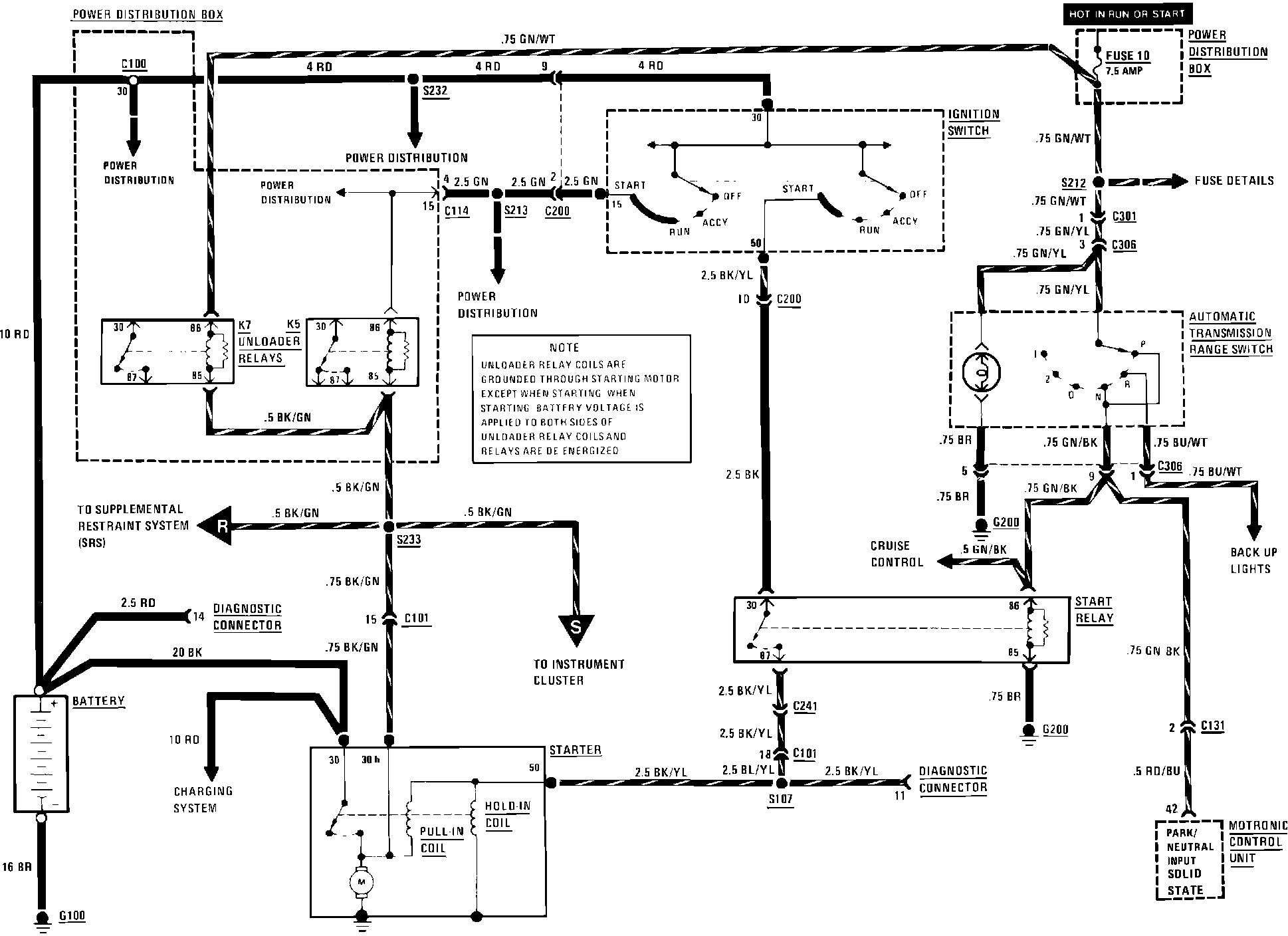

Starting System: Automatic Transmission:
