Home >> BMW >> 1993 >> 325i Convertible (E30) L6-2494cc 2.5L SOHC (M20) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Blower Control

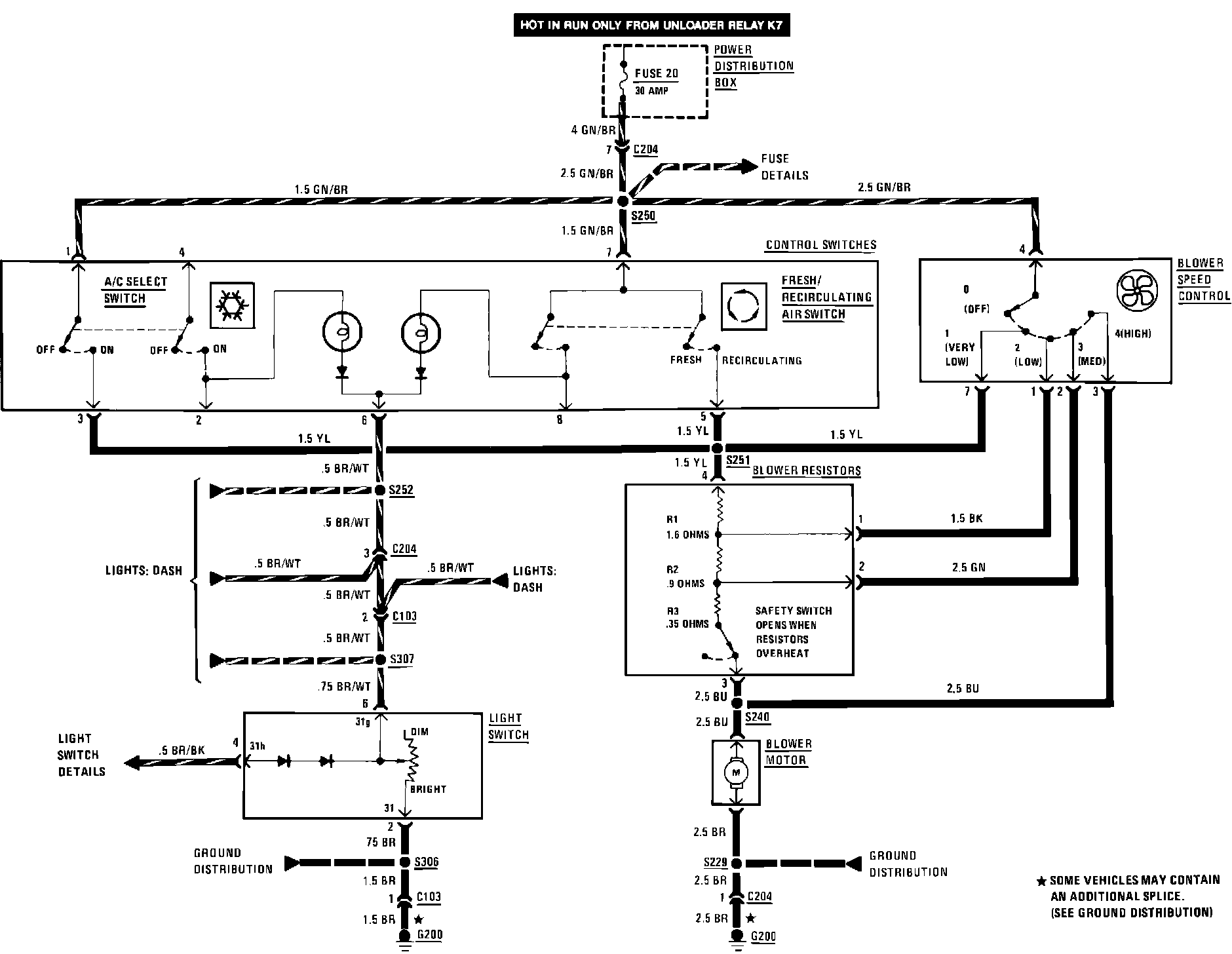

Blower Control

Heating And Air Conditioning: Blower Controls:
