Front Crankshaft Seal: Service and Repair
REPLACING RADIAL OIL SEAL IN END COVERRemove end cover. Service and Repair
Press radial oil seals out of the cover.

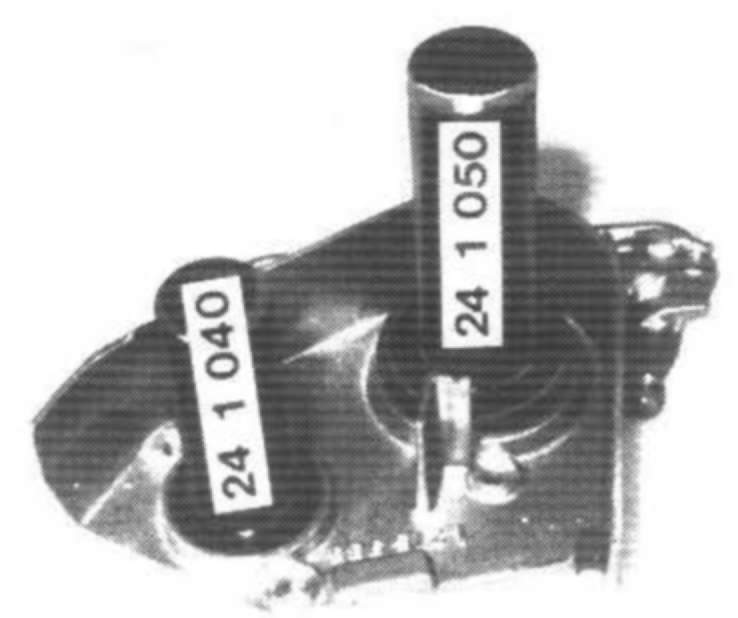

Press in radial oil seals with Special Tools 24 1 050 and 24 1 040.
Press in the new radial oil seals approx. to 2 mm (0.039 to 0.079") deeper, in contradiction to the standard seal which had been installed flush.
Lubricate sealing lips with oil.
