Replacing Vibration Damper

REPLACING VIBRATION DAMPER




M 20 B 27:

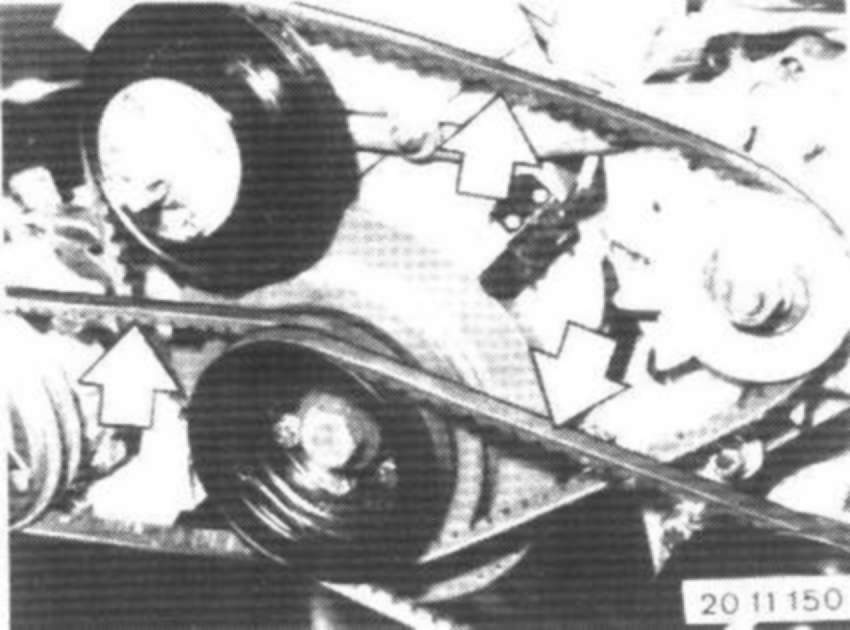

Take drive belts off of alternator, power steering pump and if applicable compressor for air conditioner.




M20 B 25:
Remove fan.

Take drive belt off of alternator, power steering pump and if applicable air conditioner compressor.

Unscrew pulley on water pump.




All Models:

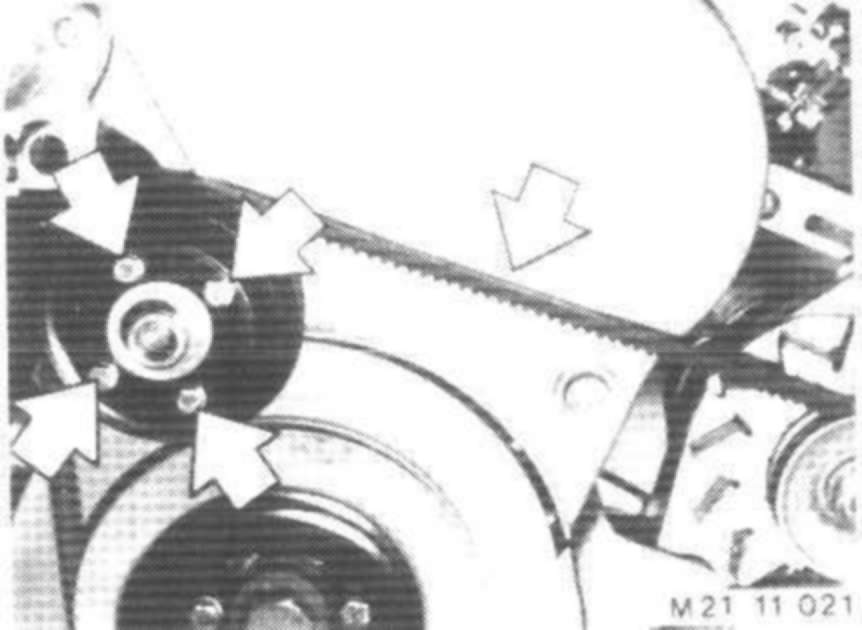

Take pulley and vibration damper off of hub.

Installation:
Centering pin must be in bore of vibration damper.
