Camshaft: Service and Repair

REMOVING AND INSTALLING CAMSHAFT

Remove rocker arm shaft. Service and Repair

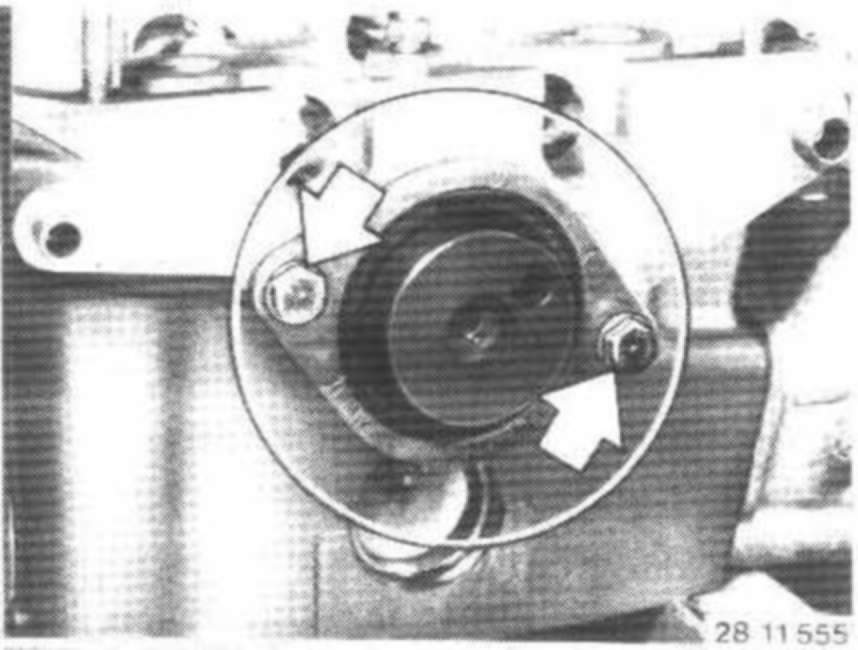

Unscrew end cover

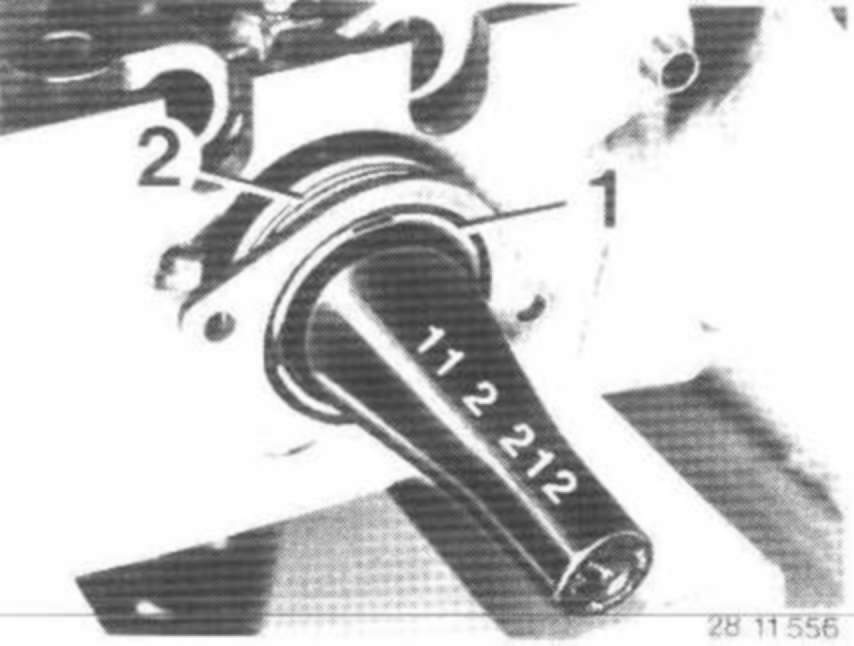

Check radial oil seal (1) and round cord seal (2), replacing if necessary.

Installation:
Use Special Tool 11 2 212 for installation of the end cover.

Check axial clearance.




Pull out the camshaft

Camshaft Identification:
Type Degrees Code
M 20 B 25 260 K
M 20 B 27 236 B
