Home >> BMW >> 1993 >> 325i Convertible (E30) L6-2494cc 2.5L SOHC (M20) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Map Light

Map Light

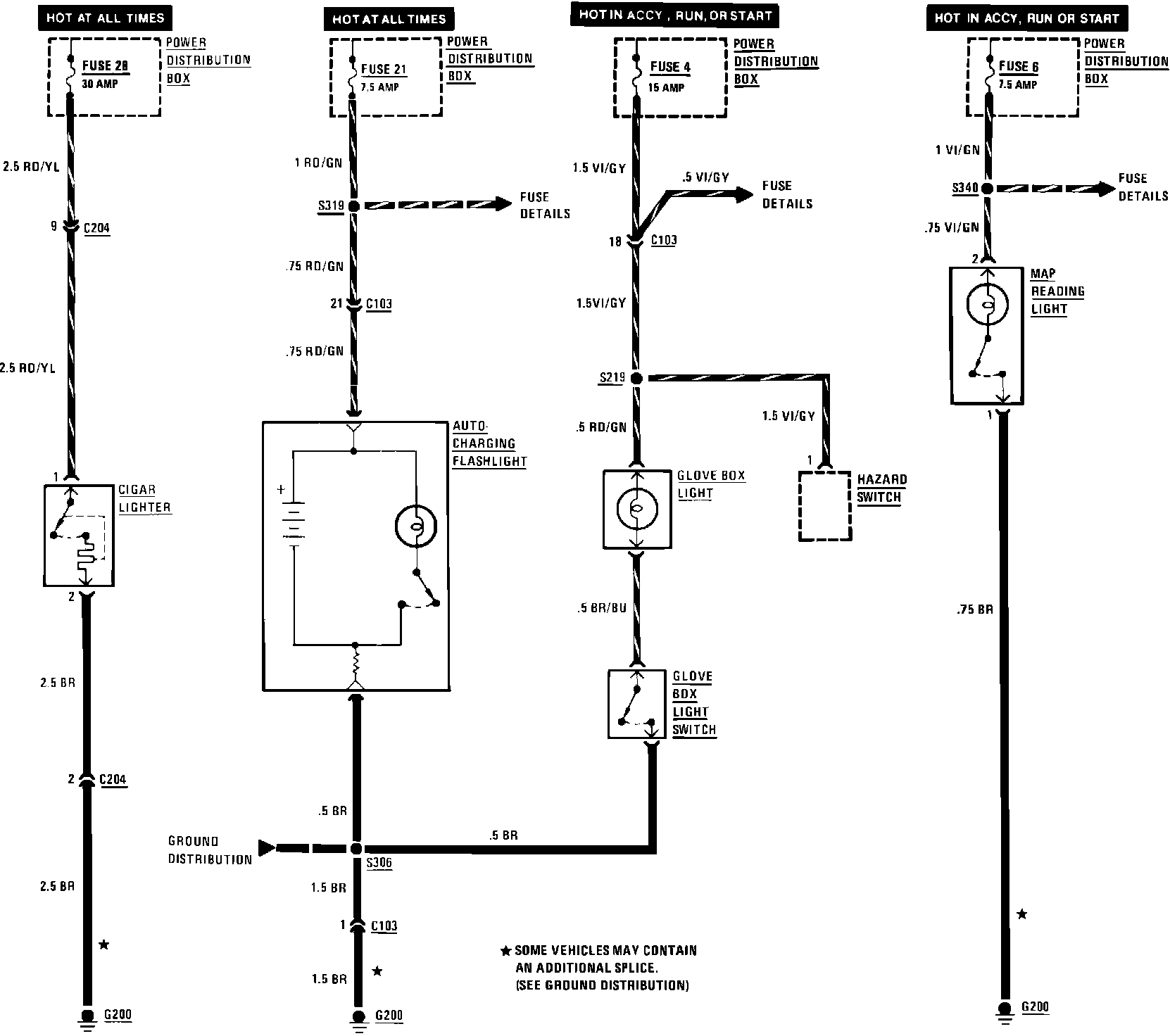

Body Electrical: Cigar Lighter, Glove Box Lamp, Auto-Charging Flashlight, Map And Reading Lamp:
