Instrument Cluster/Check Control (K/cc)
>>
Active Check Control
Active Check Control

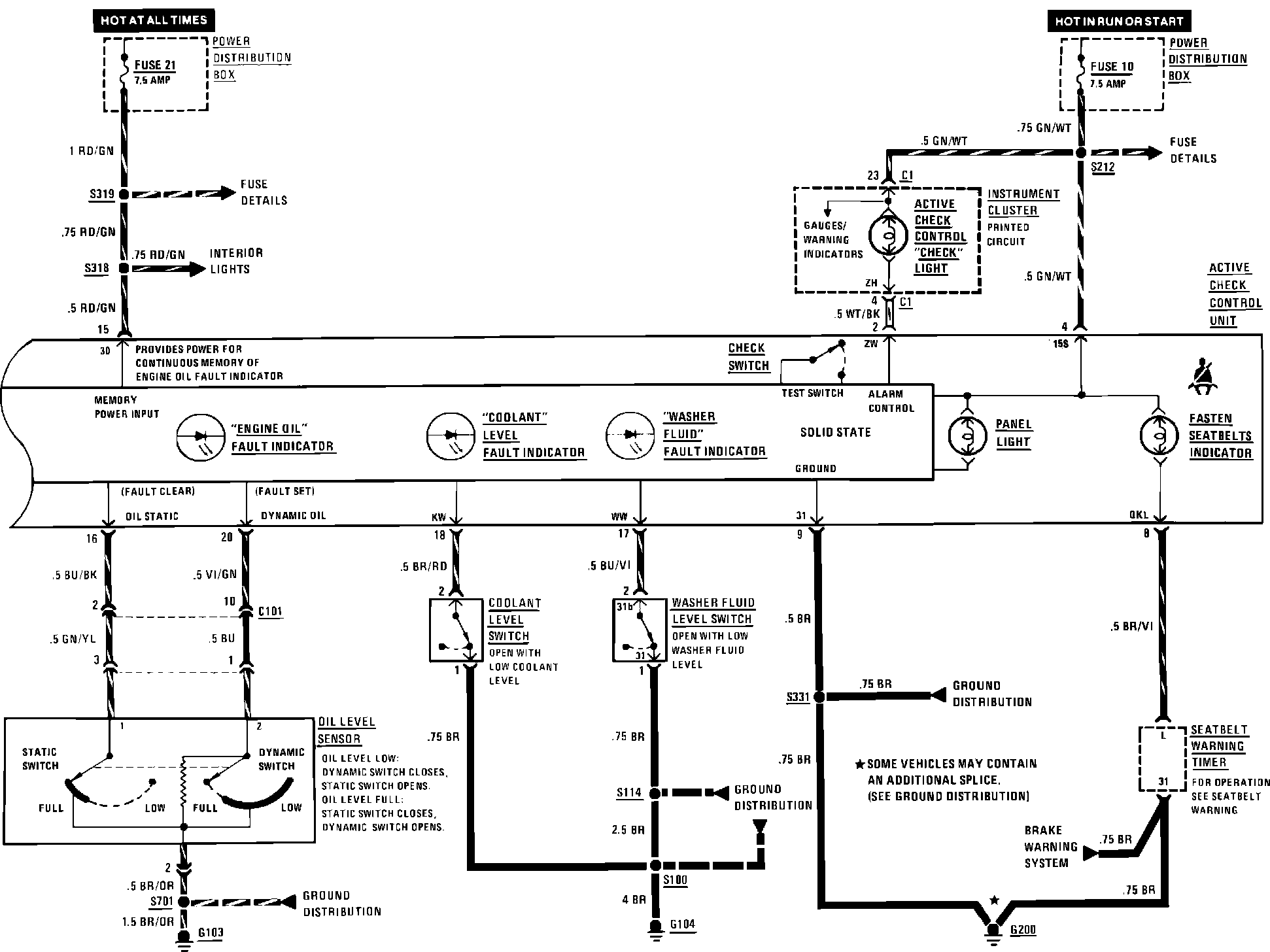

Active Check Control:

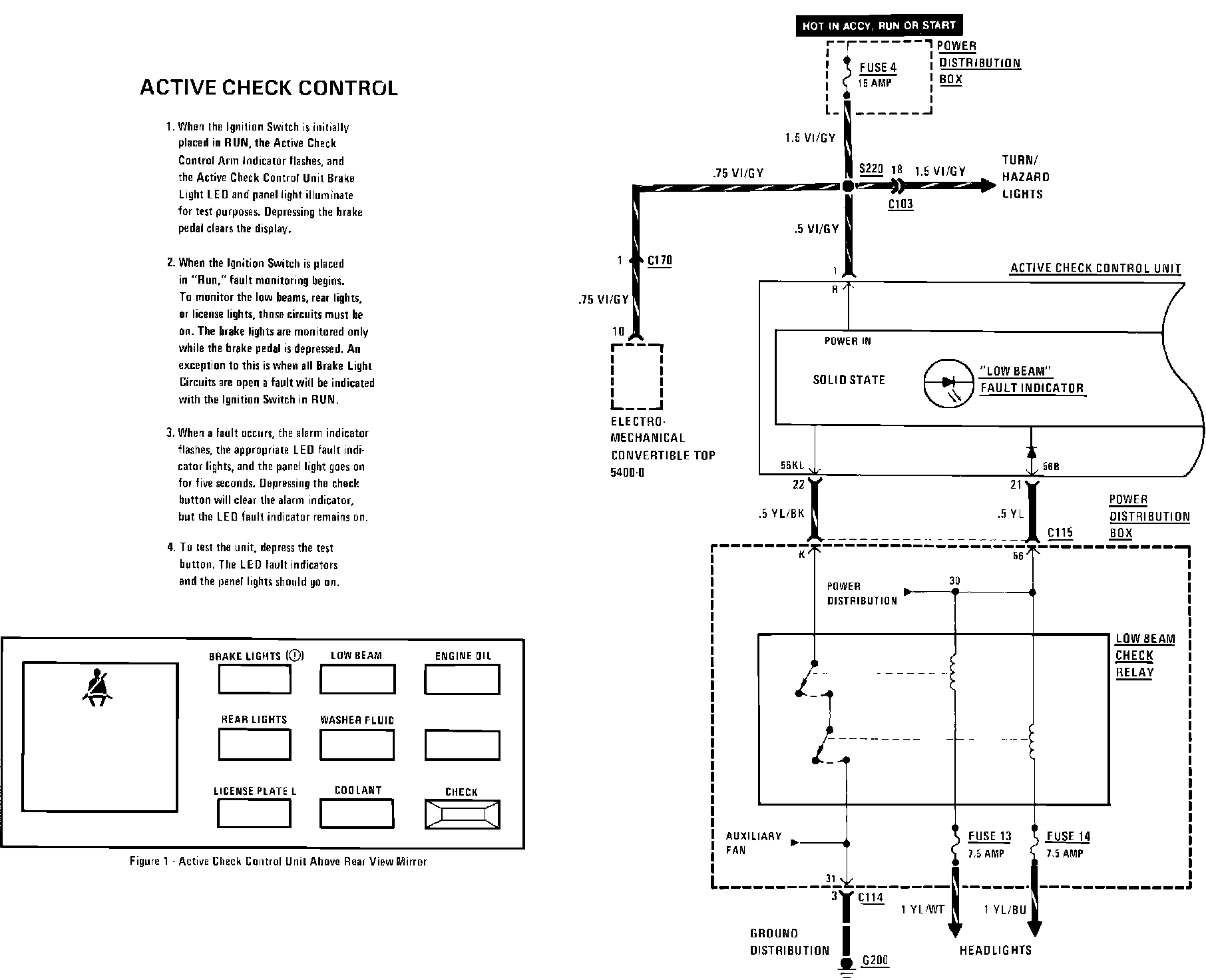

Active Check Control:

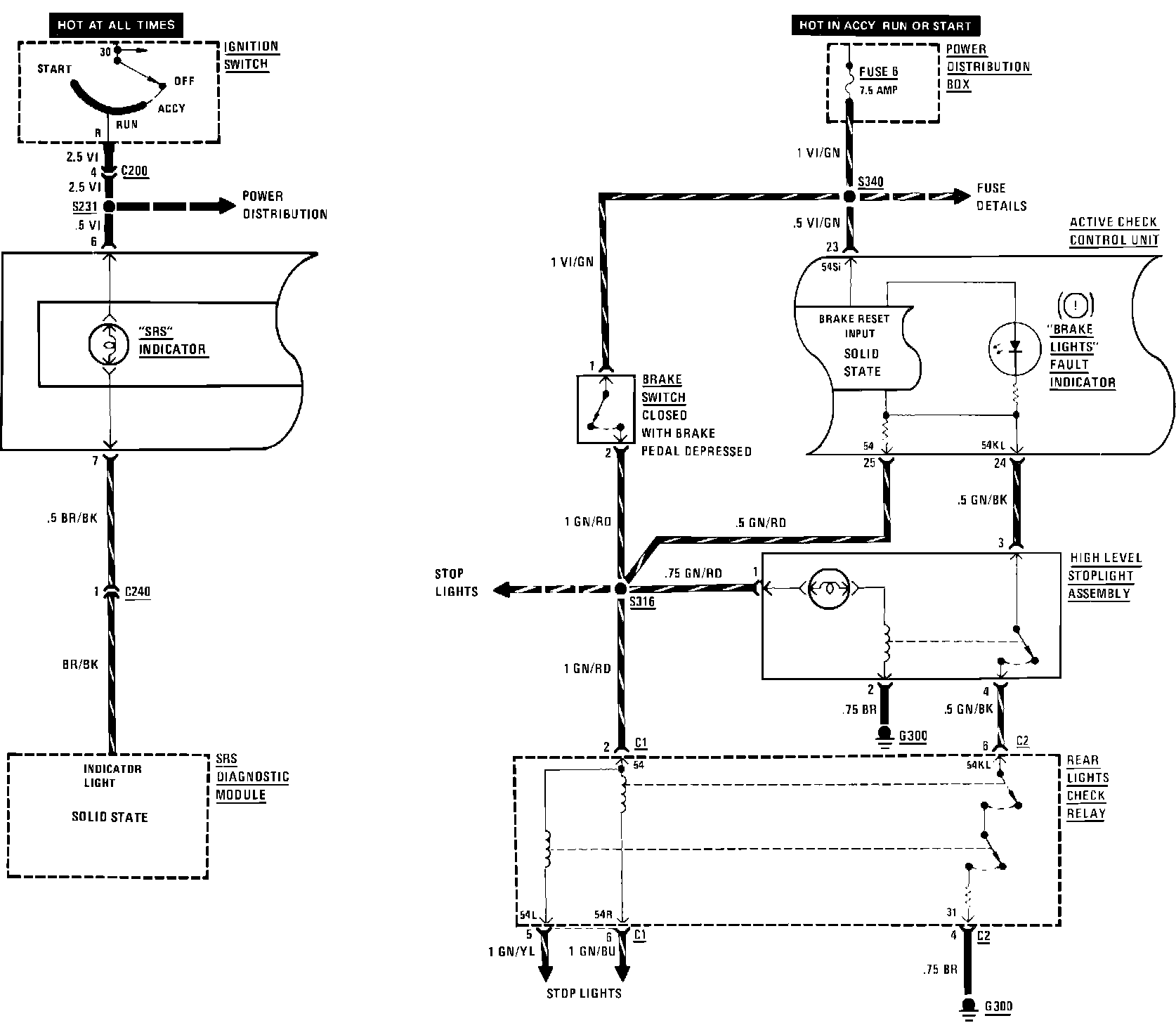

Active Check Control:
Active Check Control:
