System Diagram


Connector View:





DME CONNECTOR VIEW

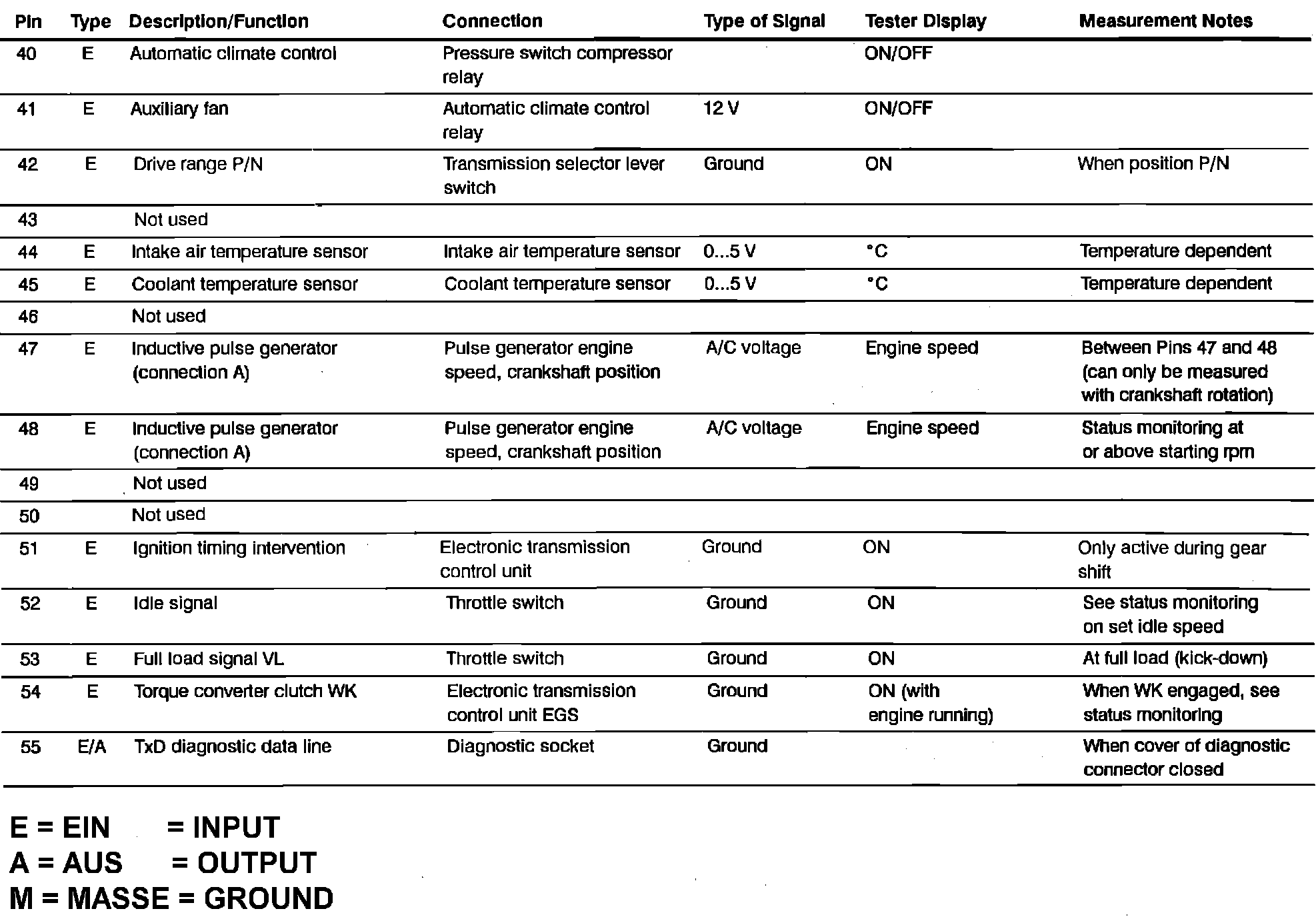

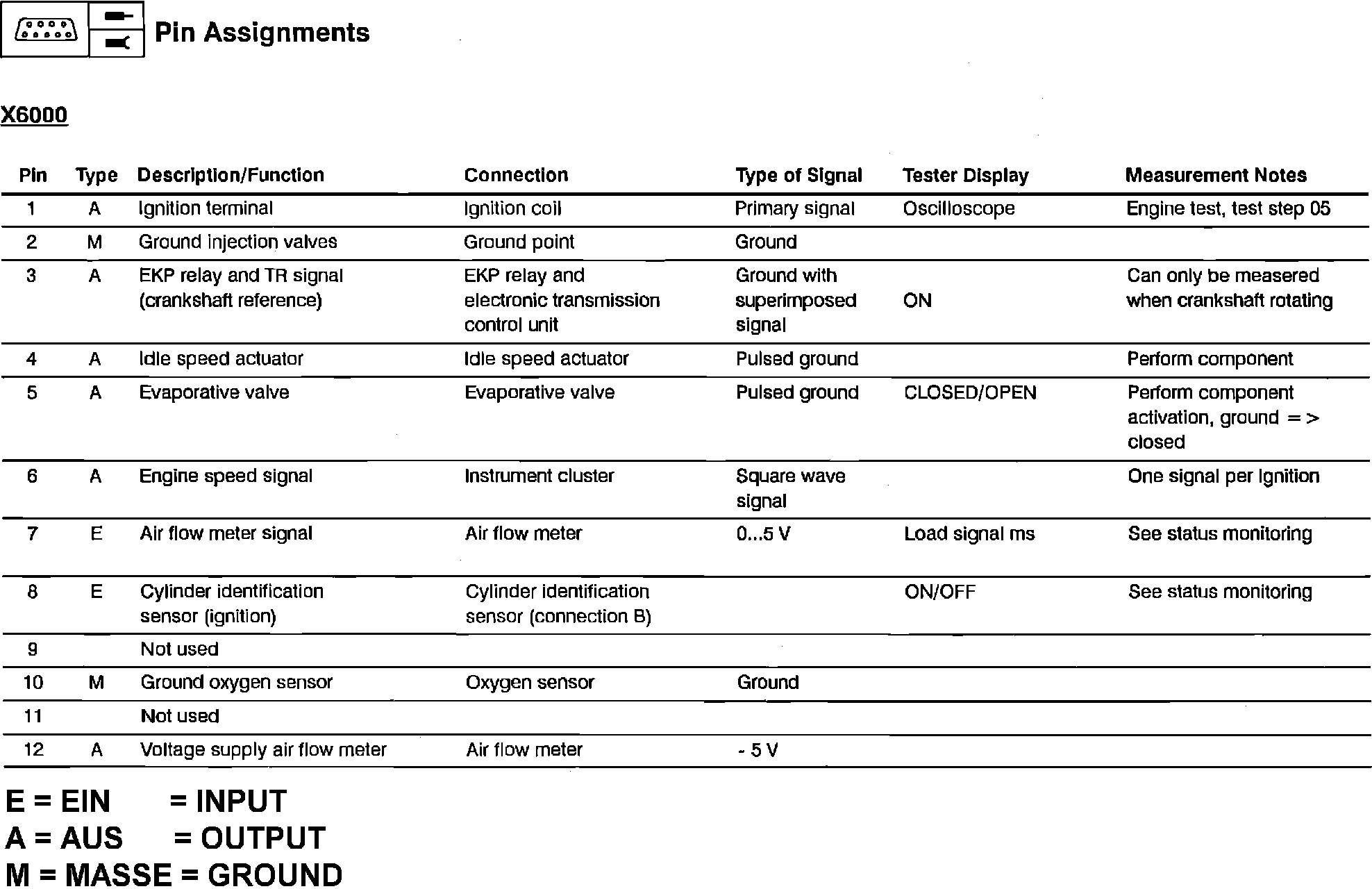

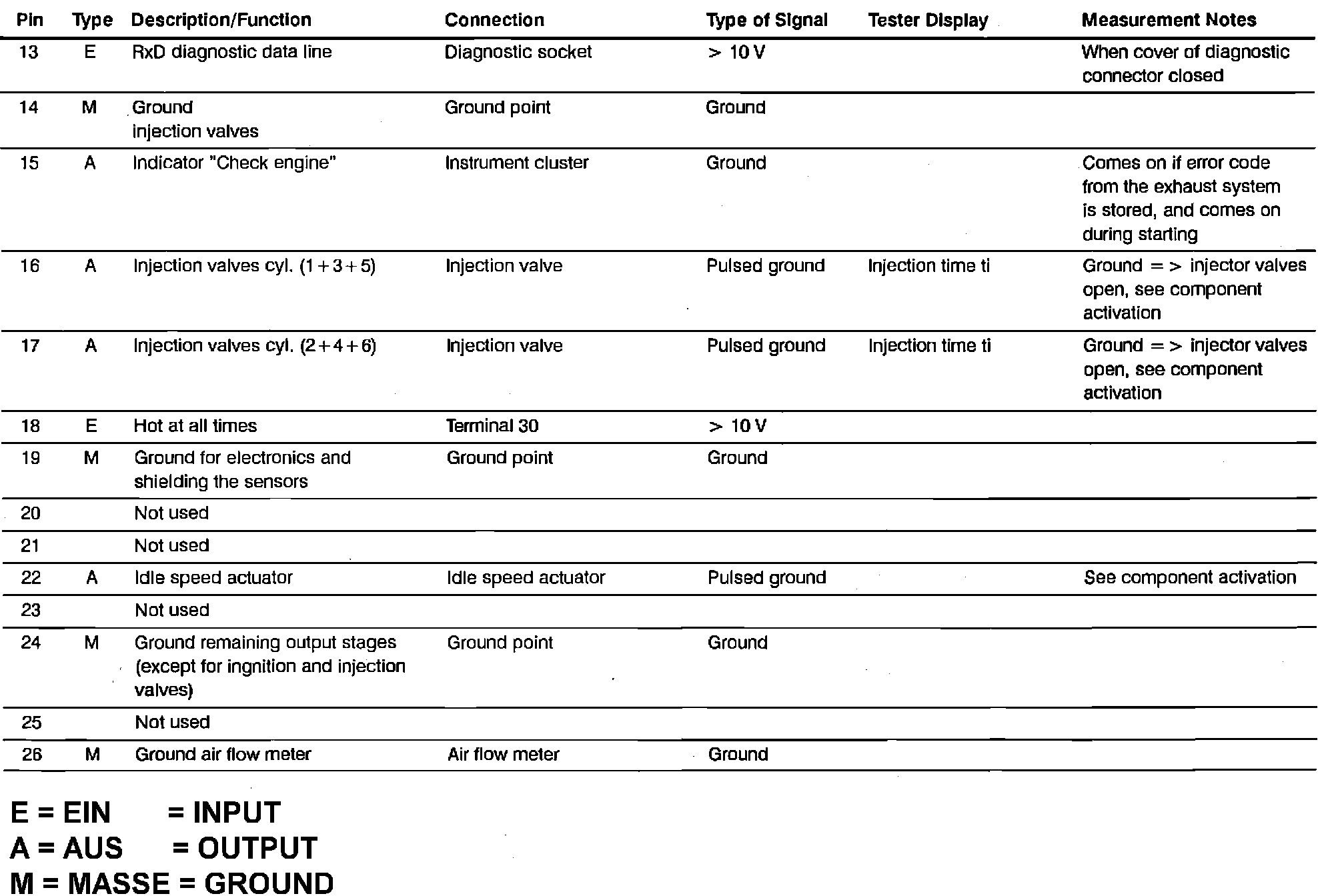

ECM Terminal Info:




ECM Terminal Info:




ECM Terminal Info:




ECM Terminal Info:





DME TERMINAL DESIGNATION
