Home >> BMW >> 1993 >> 325i Convertible (E30) L6-2494cc 2.5L SOHC (M20) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views/Pin Assignments >> Rear Light Check Relay .... Sunroof Switch

Rear Light Check Relay .... Sunroof Switch

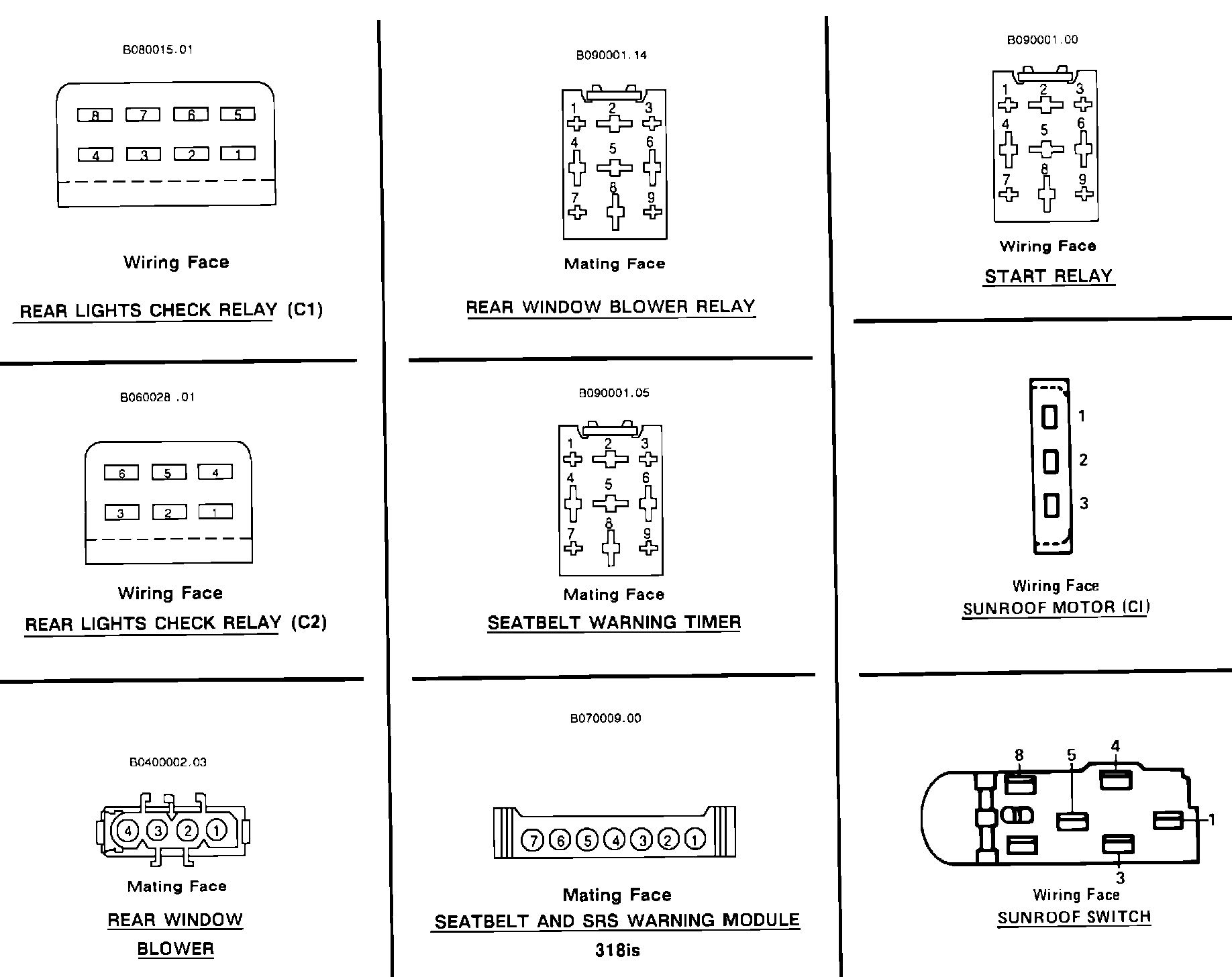

Connector Views: Rear Lamps Check Relay Thru Sunroof Switch:
