Home >> BMW >> 1993 >> 325i Convertible (E30) L6-2494cc 2.5L SOHC (M20) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views/Pin Assignments >> A/C Compressor .... Chime Module

A/C Compressor .... Chime Module

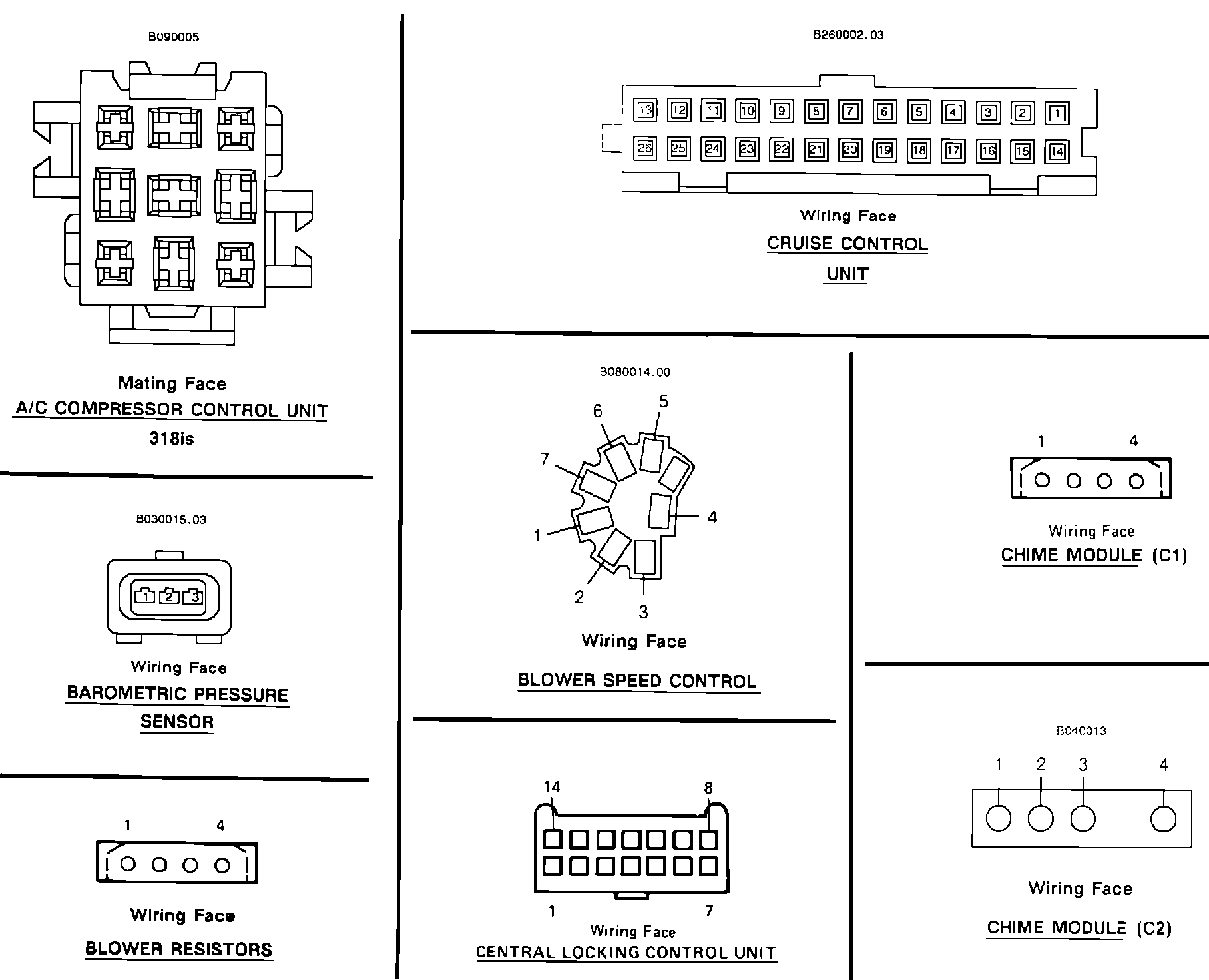

Connector Views: A/C Compressor Thru Chime Module:
