Location Index
Location Index
:

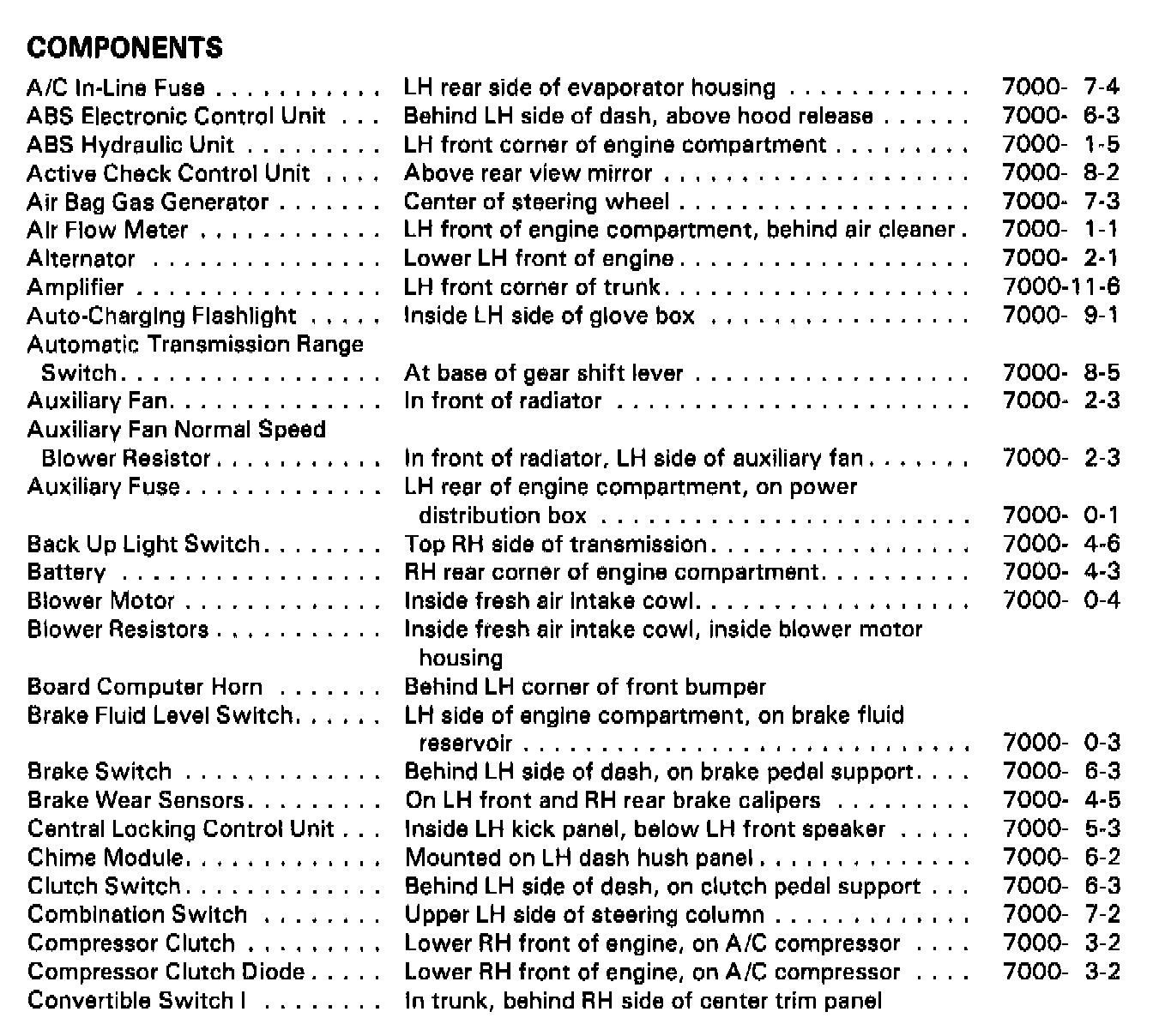

A/C In-Line Fuse - Convertible Switch I:

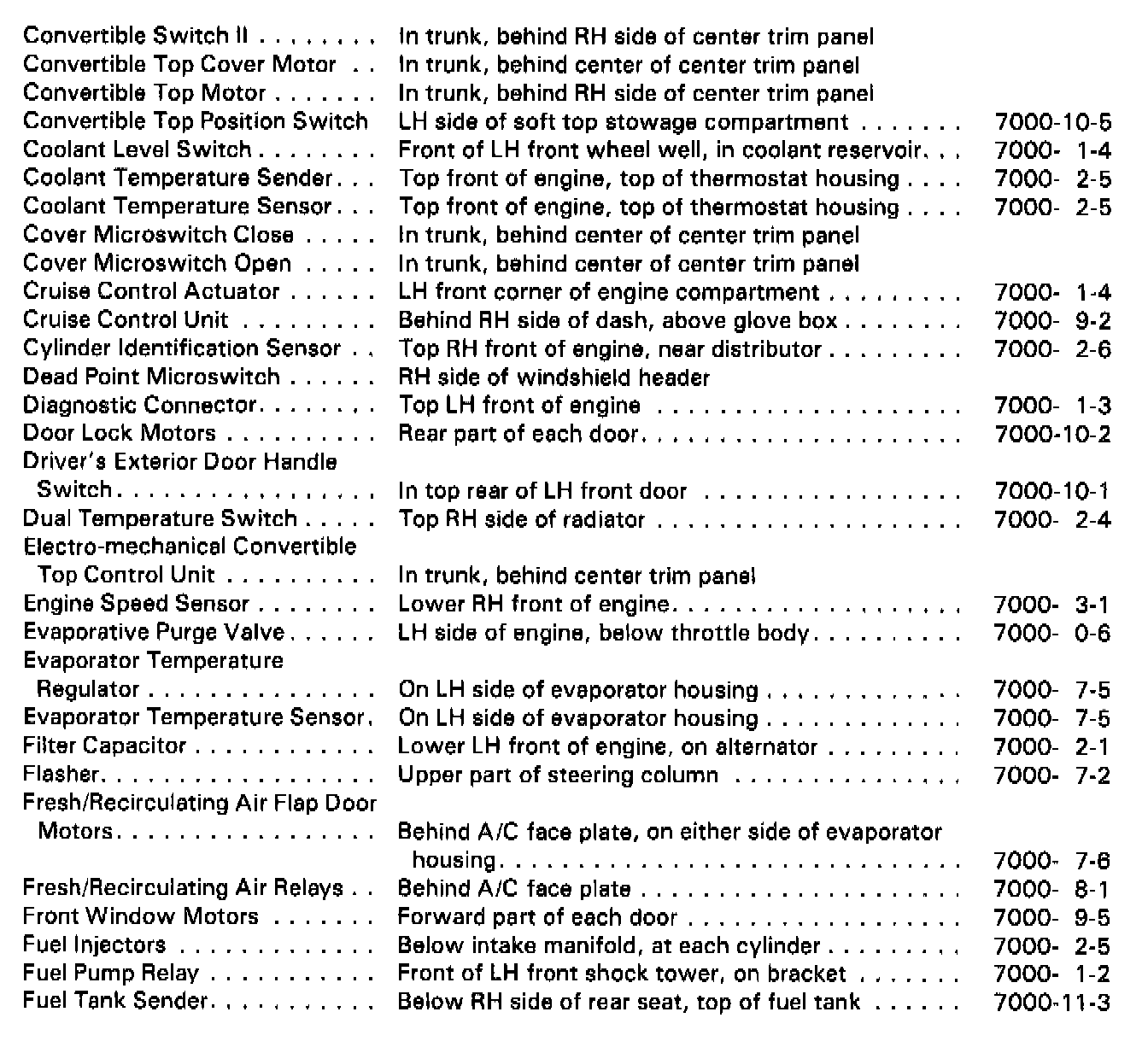

Convertible Switch II - Fuel Tank Sender:

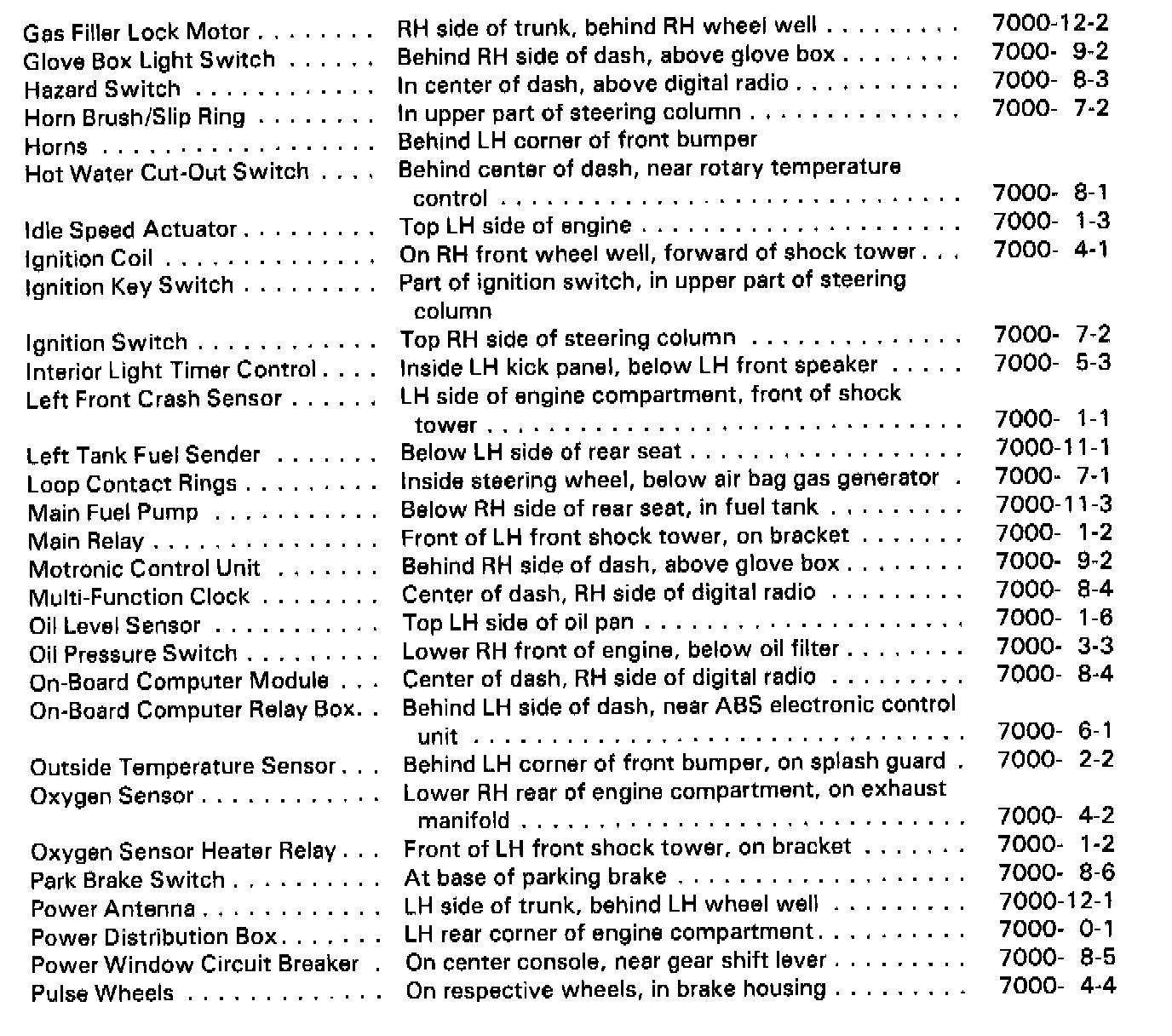

Gas Filler Lock Motor - Pulse Wheels:

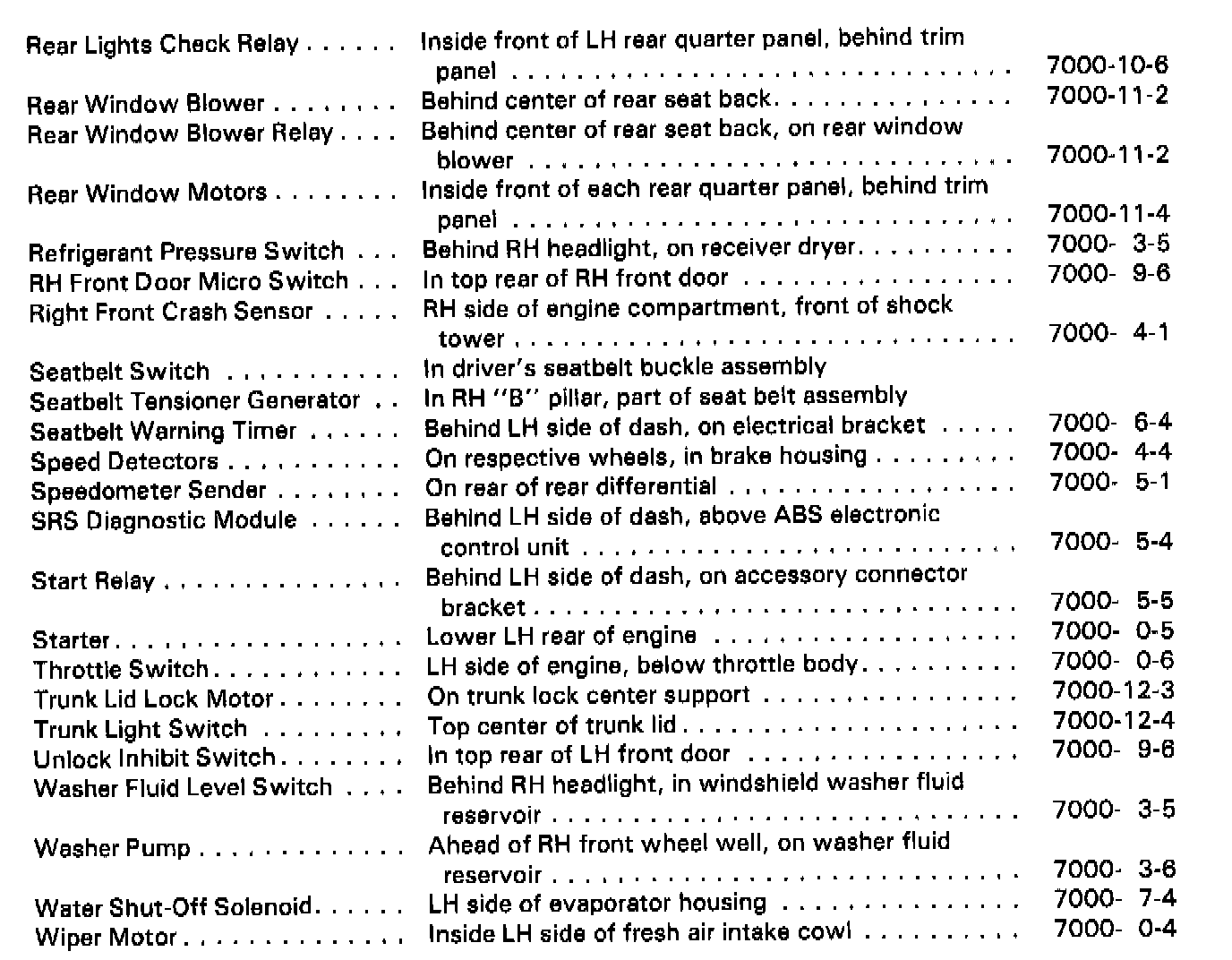

Rear Lights Check Relay - Wiper Motor:
