Parking Brake Cable: Service and Repair

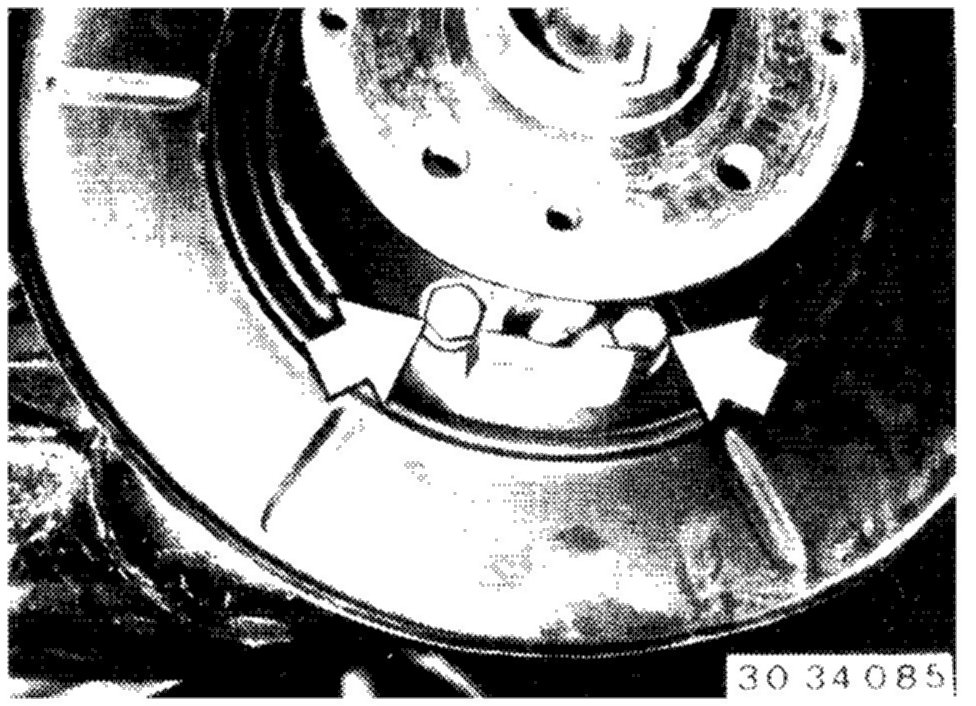

- Remove and install spreader for parking brake shoes.



- Remove and install parking brake lever. Parking Brake Lever

Installation note:
- Adjust parking brake.

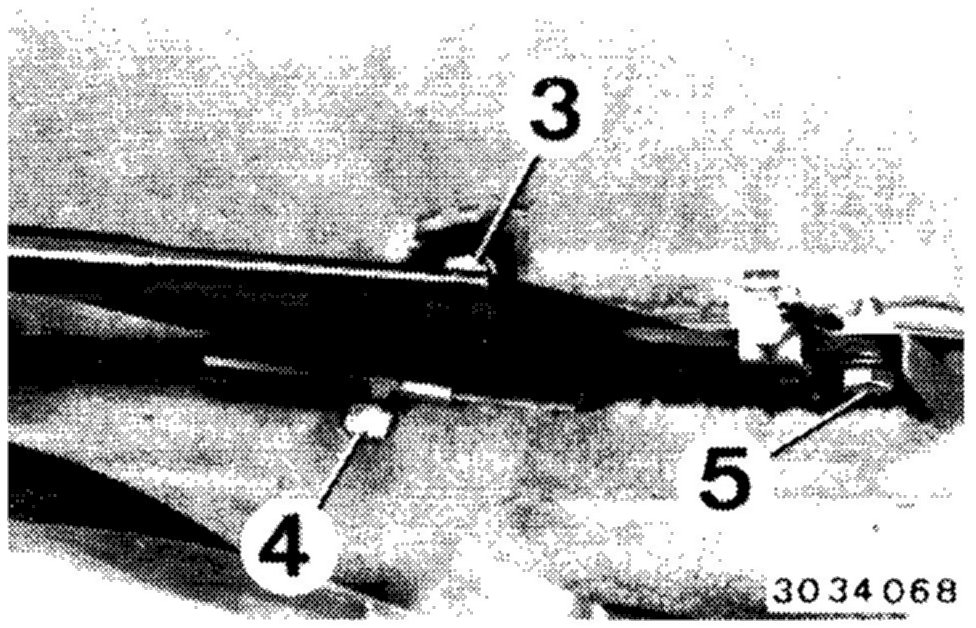

- Disconnect parking brake cable on swinging arm.
- Pull parking brake cable out of protective tube.

Installation note:
- Cable holder must rest on protective tubing.

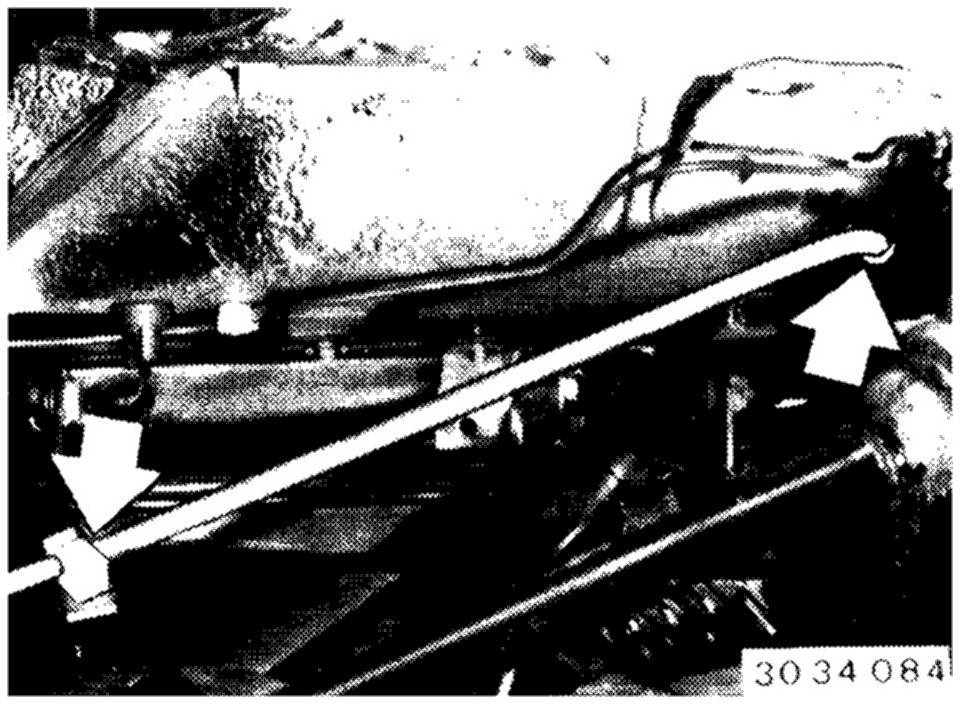

- Disconnect support for parking brake cable.
- Pull out parking brake cable.
- Reverse procedure to install.
