Home >> BMW >> 1993 >> 318is (E36) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> X13009 and X13016

X13009 and X13016

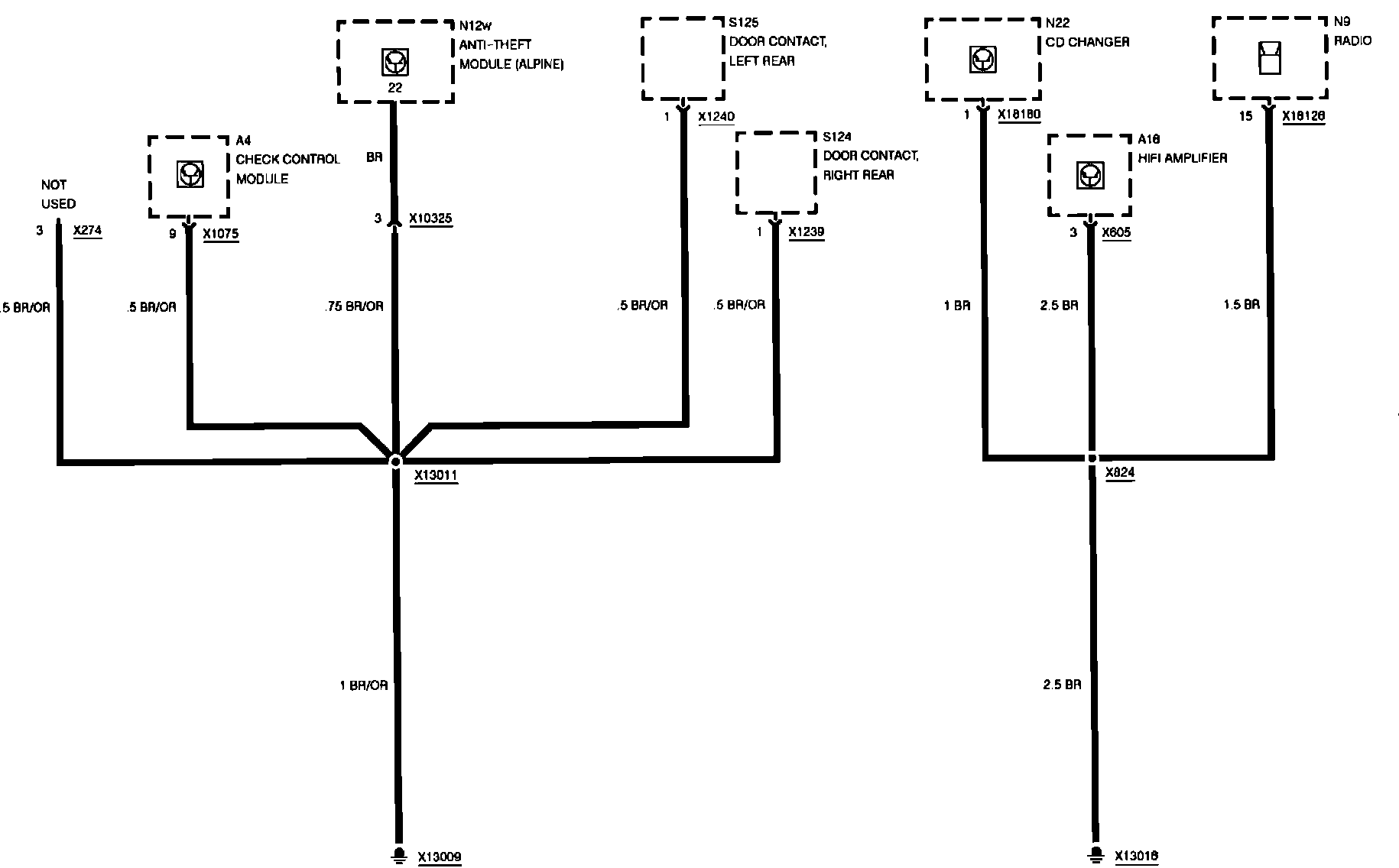

Ground Distribution: X13009 And X13016:
