Home >> BMW >> 1993 >> 318is (E36) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> X495 >> Two-Door Models

Two-Door Models

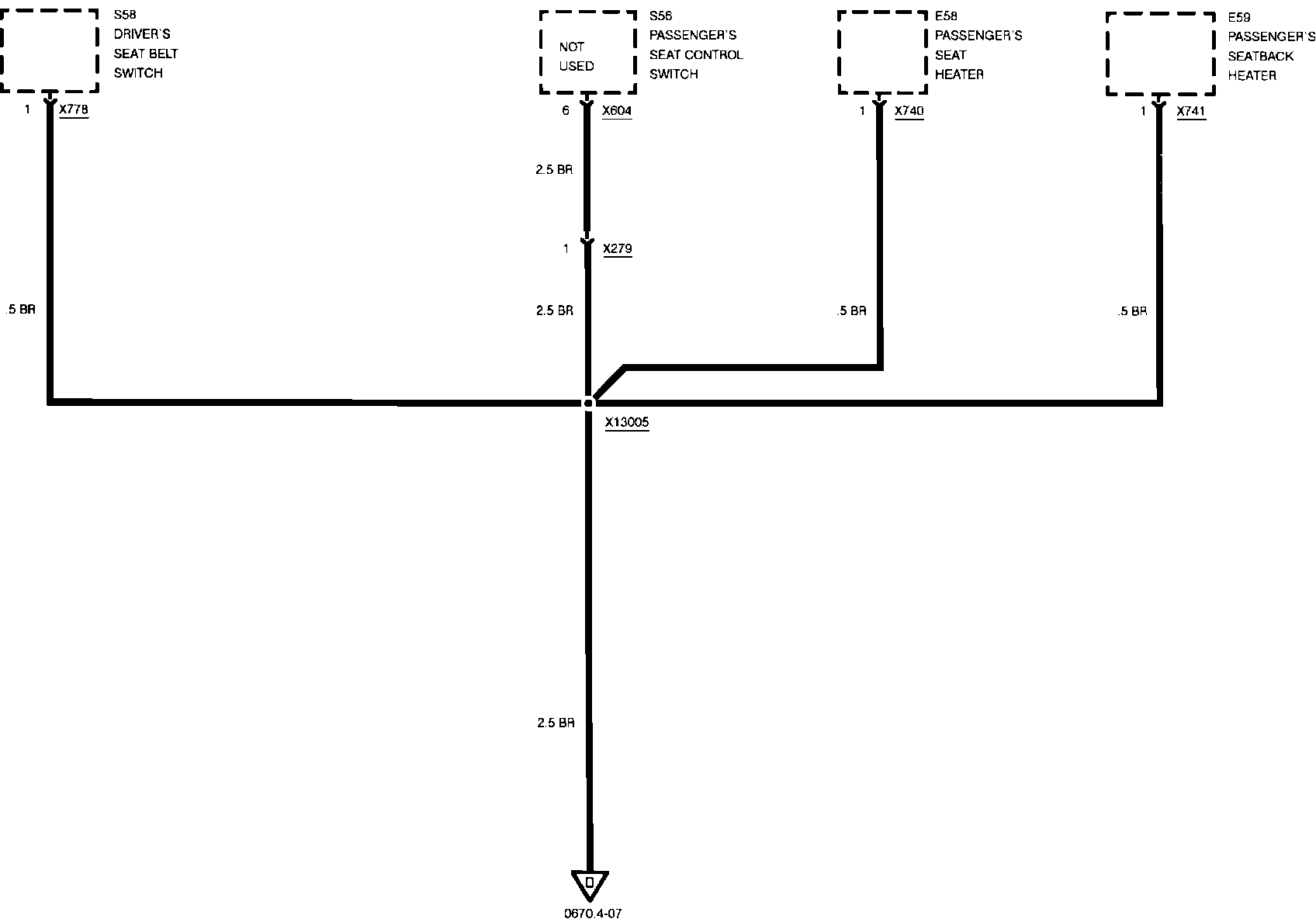

Ground Distribution: X495 (Two-door):

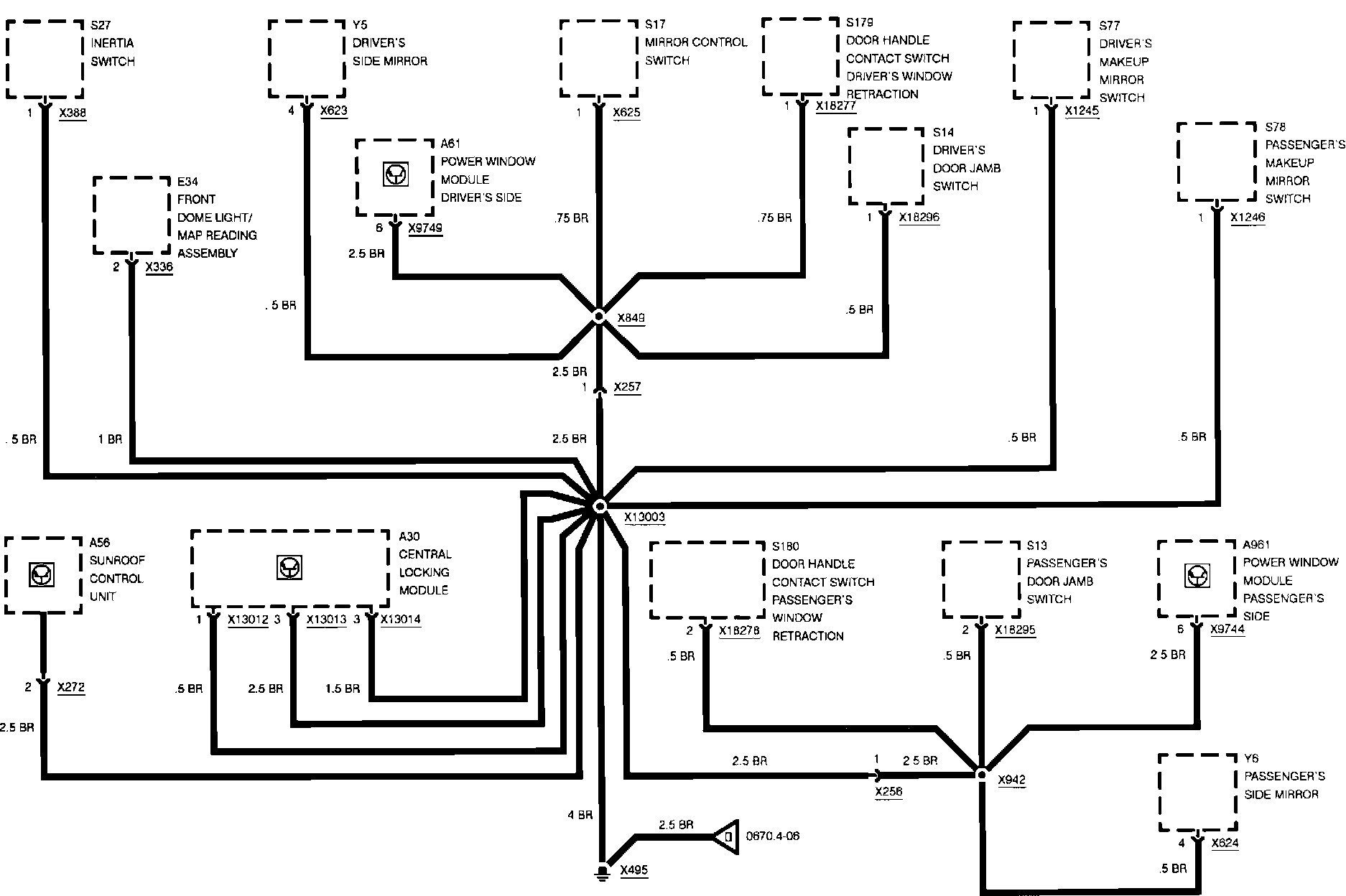

Ground Distribution: X495 (Two-door):
