Shift Lock, Diagnostic Link, Kick-Down Switch

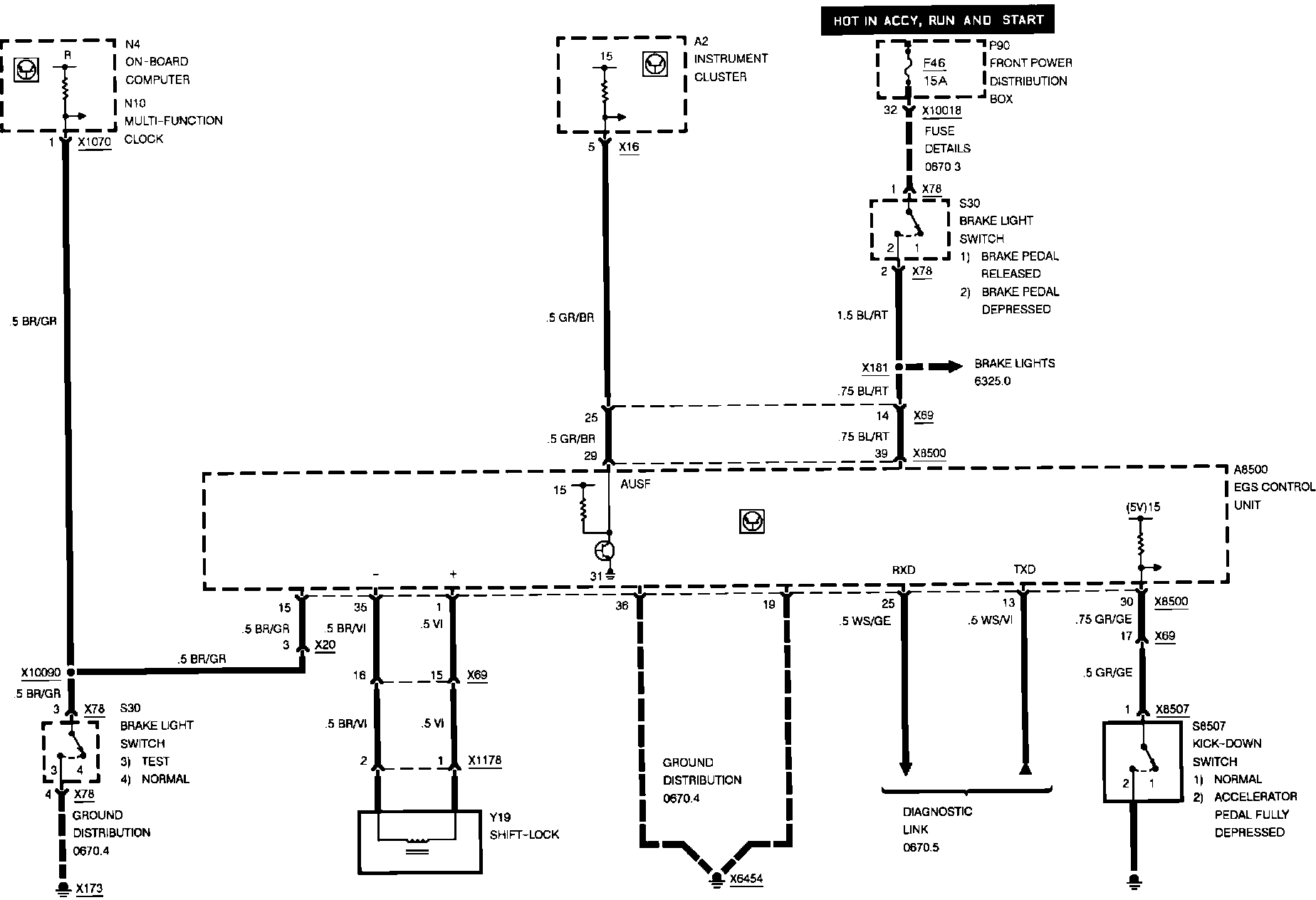

Electronic Transmission Control (EGS A4S 310R): Shift Lock, Diagnostic Link And Kick-Down Switch:
