Home >> BMW >> 1993 >> 318is (E36) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Rear Defogger

Rear Defogger

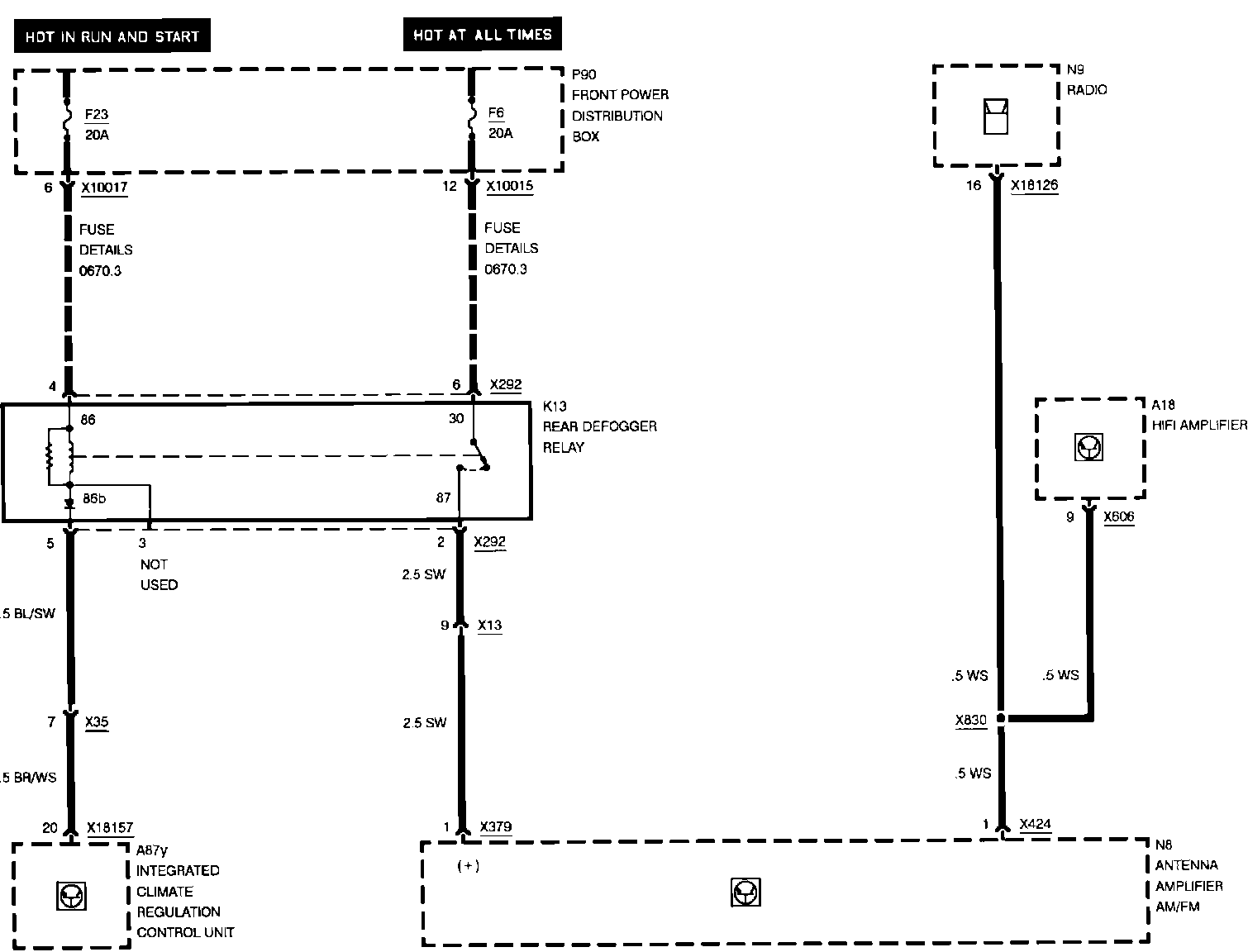

Rear Window Defogger (Without Antenna):

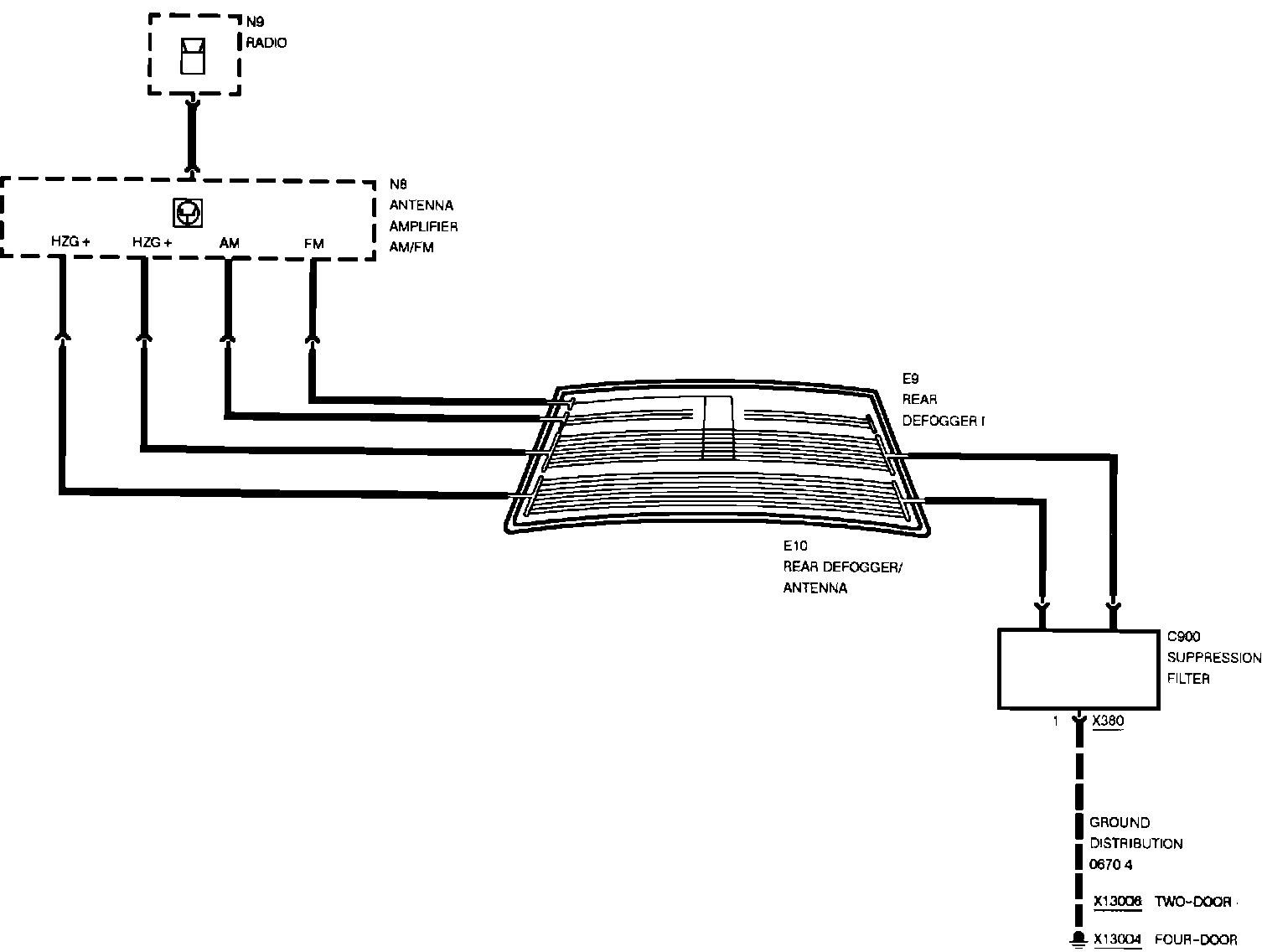

Rear Window Defogger (With Antenna):
