Home >> BMW >> 1993 >> 318is (E36) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagnostic Connector Pin 19

Diagnostic Connector Pin 19

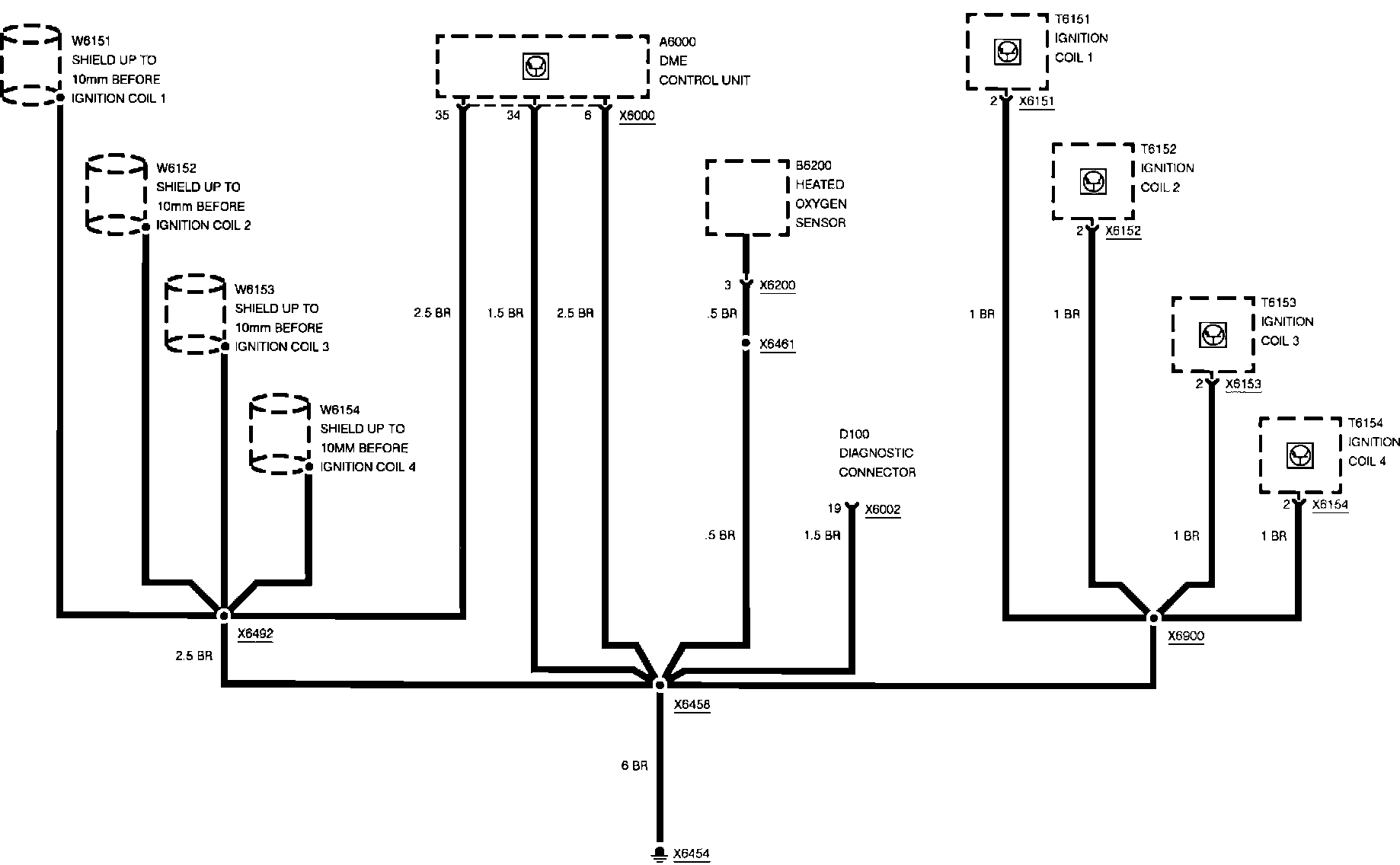

Diagnostic Link: Diagnostic Connector Pin 19:

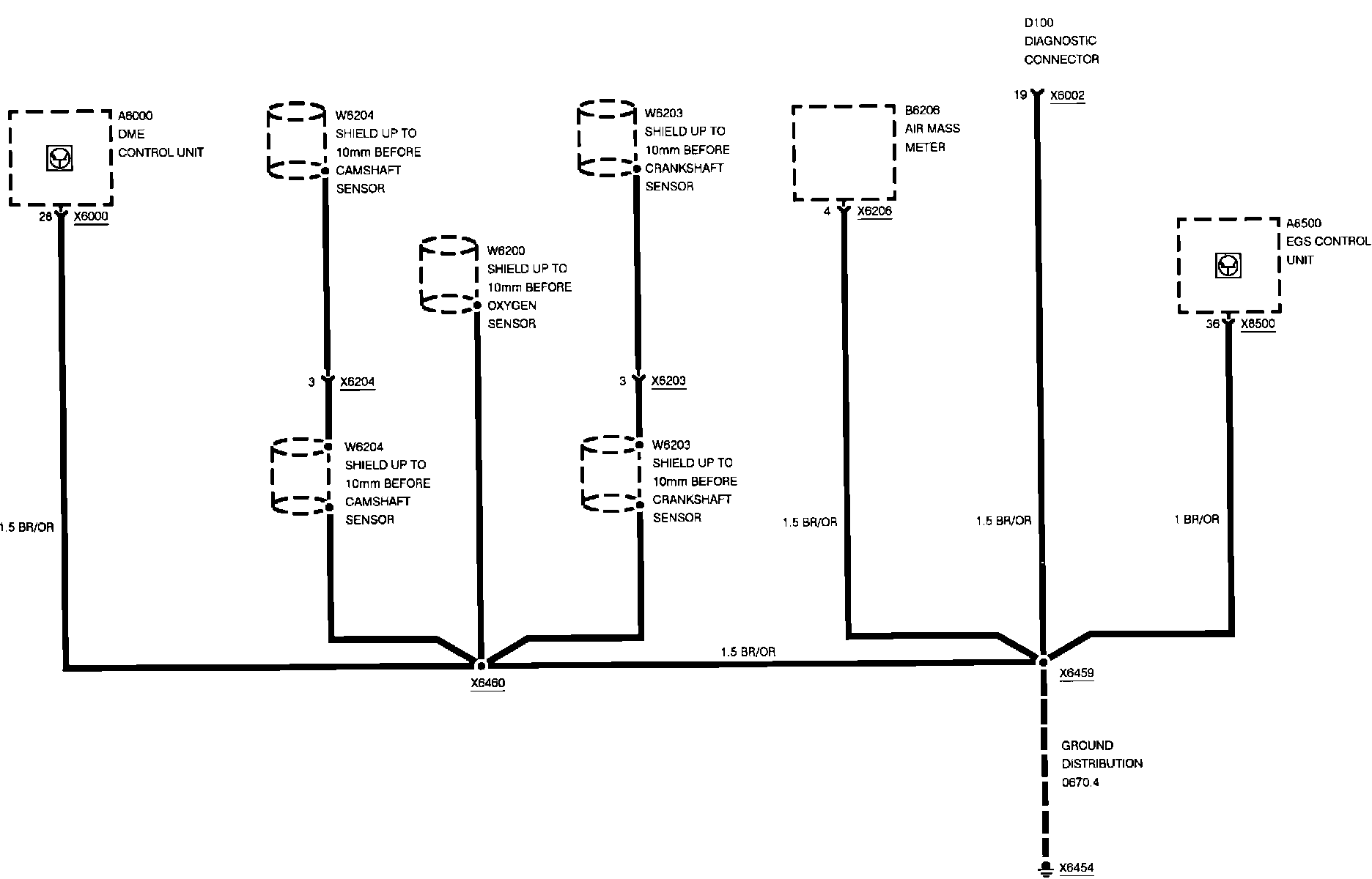

Diagnostic Link: Diagnostic Connector Pin 19:
