FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
1993
>>
318is (E36) L4-1796cc 1.8L DOHC (M42)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Four-Door
Four-Door

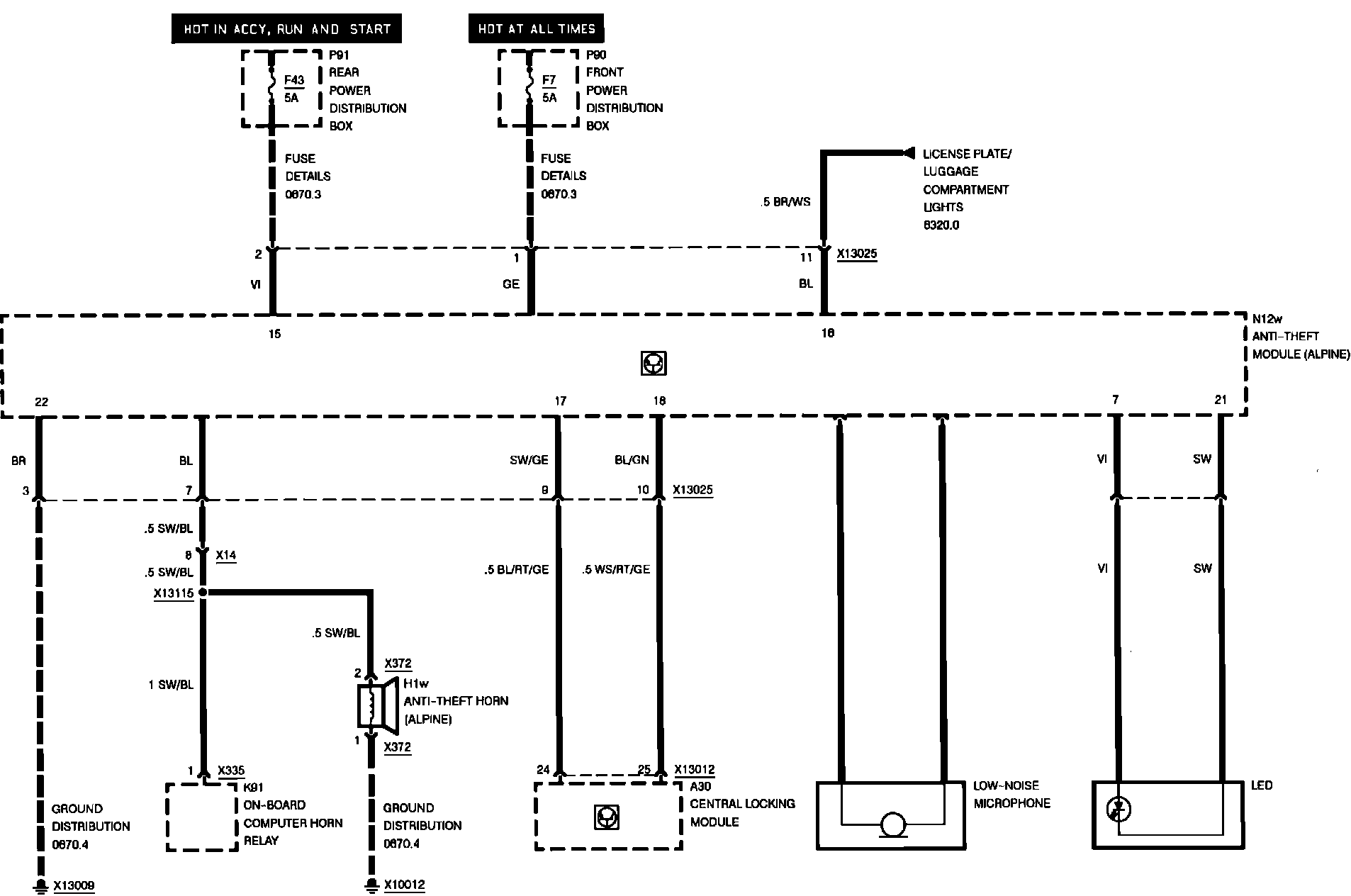

Alarm (Alpine):

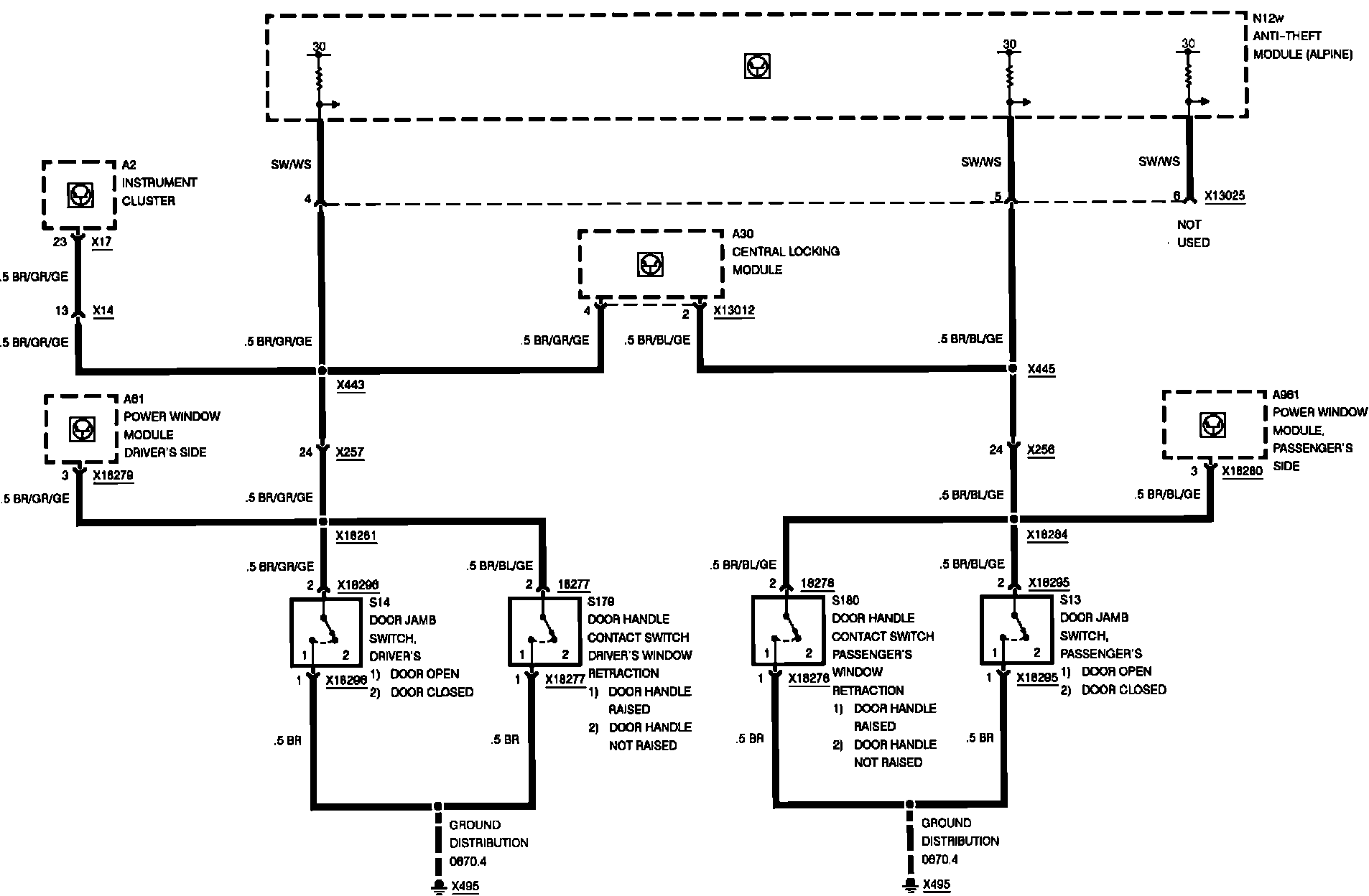

Alarm (Alpine): Front And Rear Door Jamb Switches:
