Home >> BMW >> 1993 >> 318is (E36) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Anti-Theft Module (Alpine)

Anti-Theft Module (Alpine)

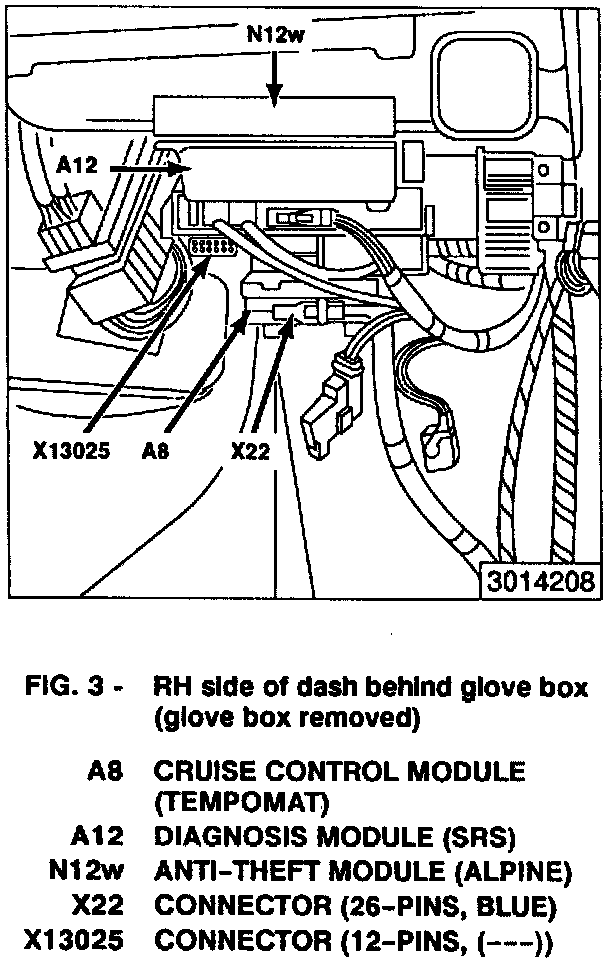

Component Location View:





COMPONENT VIEW

N12w Anti-Theft Module (Alpine)

LOCATION

RH side of dash behind glove box
