Home >> BMW >> 1993 >> 318is (E36) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Electrical Diagrams

Electrical Diagrams

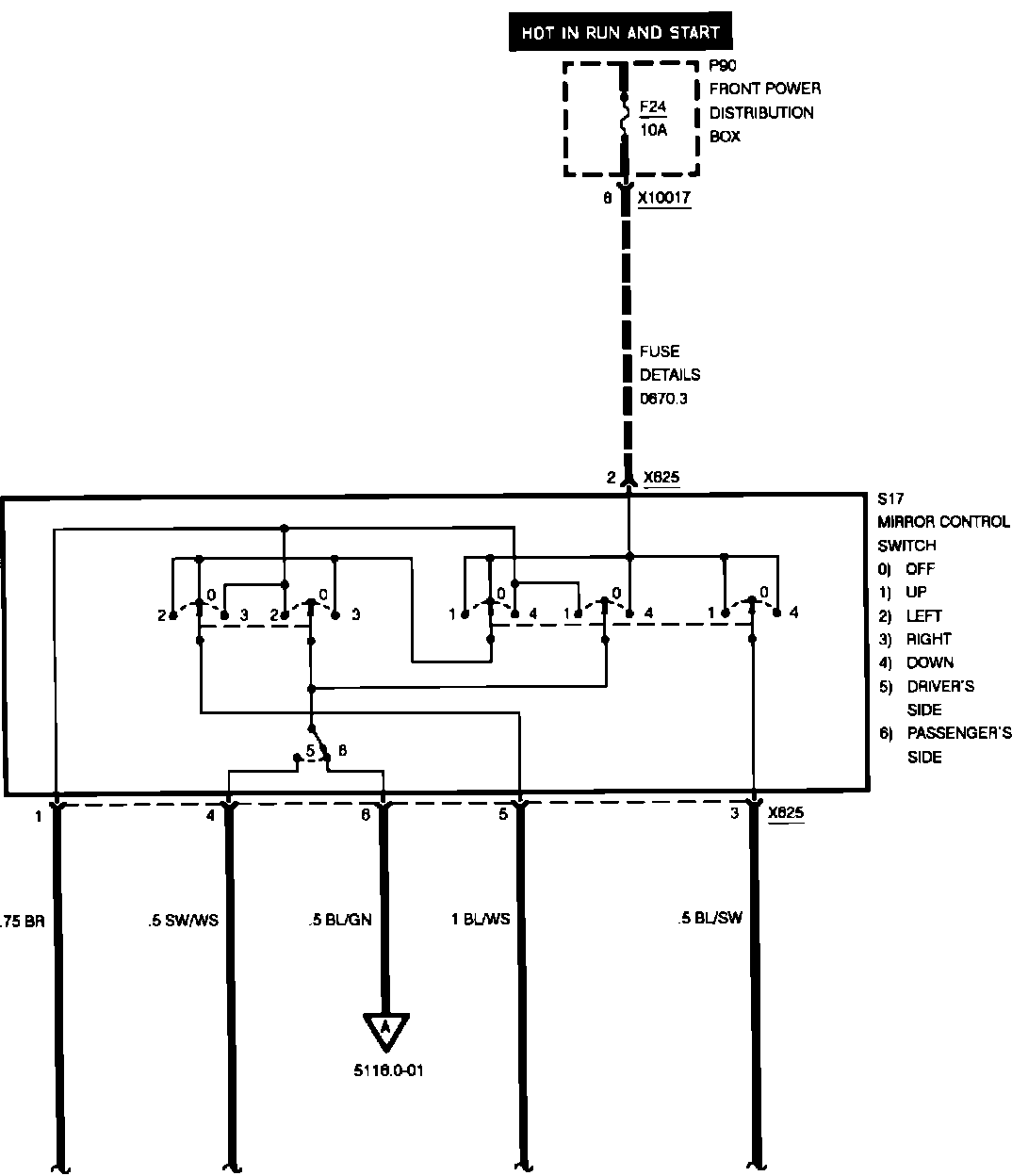

Power Mirrors (Outside Mirror):

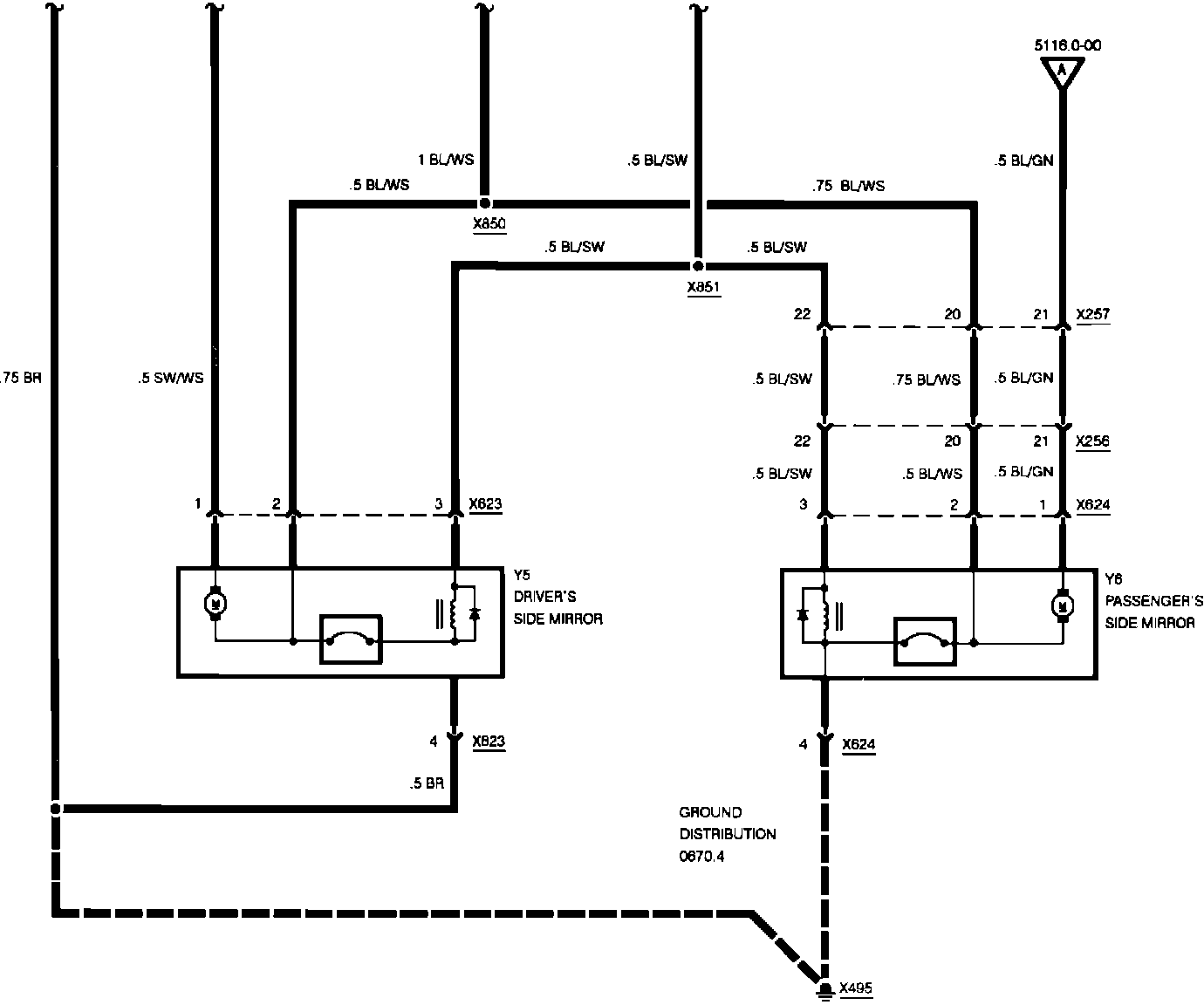

Power Mirrors (Outside Mirror):
