Rear Shelf: Service and Repair

Removing and Installing/Replacing Trim For Oddments Tray (Back Shelf) (Coupe)

Remove trim for oddments tray (back shelf):
Remove and installing both rear side trim panels,


Remove and installing both trim panels for rear roof pillar,

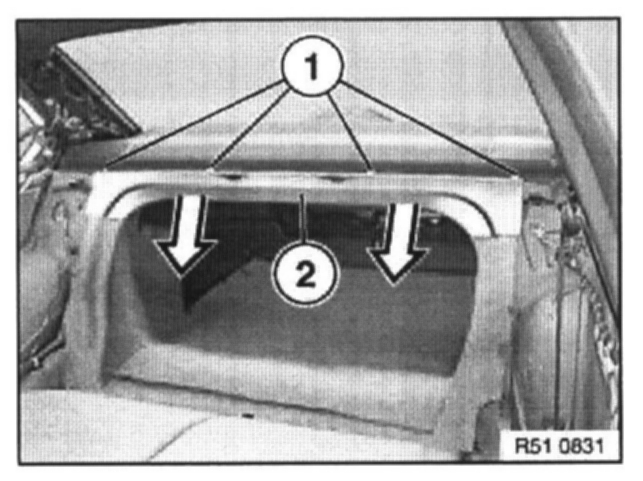

Unfasten clips (1) and pull finisher (2) downwards to remove.







Installation:
Left/right guides must not be damaged.







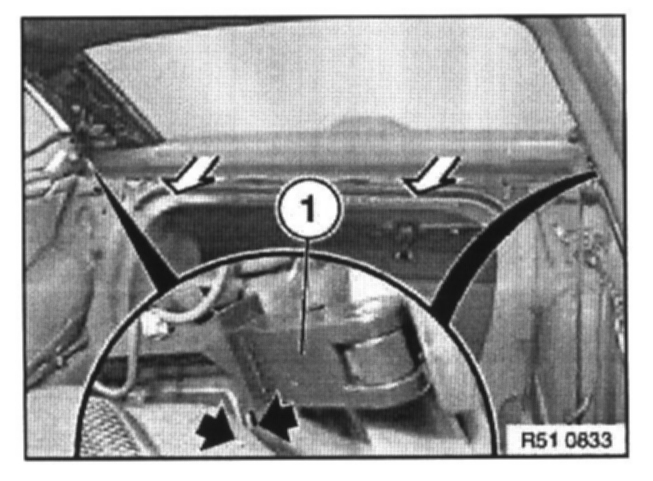

Pull back shelf forwards to remove.

NOTE: Press back shelf downwards and outwards when removing: risk of damage from vent window levers (1).







Installation:

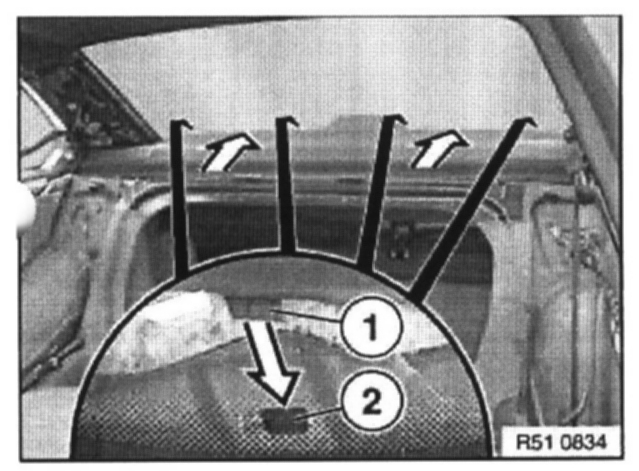

Insert guides (1) in back shelf and recesses (2).







NOTE: The operation "Removing trim panel for oddments tray (back shelf)" ends here.


Only replacement (version with rear window roller blind):
Press together rear window roller blind and pull downwards to remove.

Installation:
Perform function check (roller).







Only replace:
If applicable, remove loudspeaker frames.
If necessary, lift out grill from 3rd brake light.
