Rear Door Window Regulator: Service and Repair

REMOVING AND INSTALLING OR REPLACING WINDOW REGULATOR




Remove trim panel.

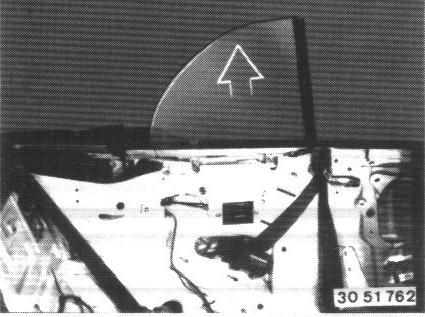

Window closed.

Disconnect plug.

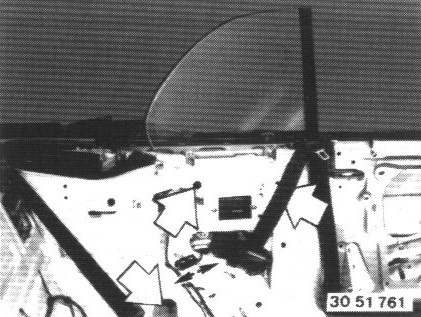

Unscrew screws.




Remove complete window regulator from above.

Installation.
Adjust rear window regulator.

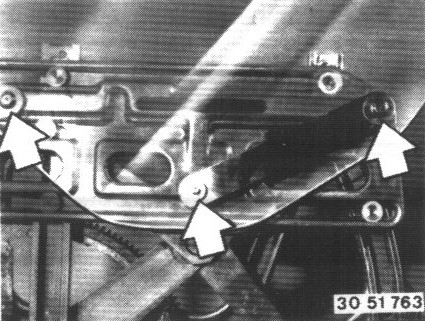

Unscrew screws.

Remove window glass.

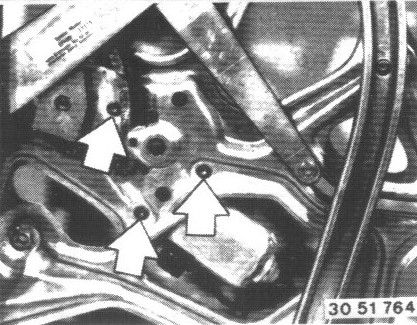

Unscrew screws.

Remove power window motor.
