Quarter Window Glass: Adjustments

ADJUSTING LEFT OR RIGHT REAR SIDE WINDOW

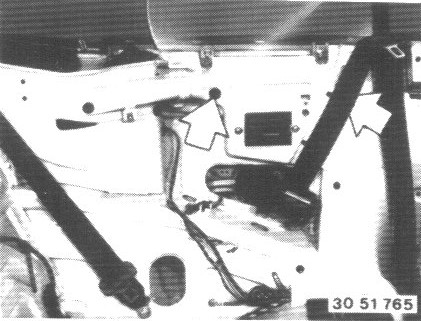

Remove rear side trim panel.

Requirement:
Front window adjusted correctly. Adjustments

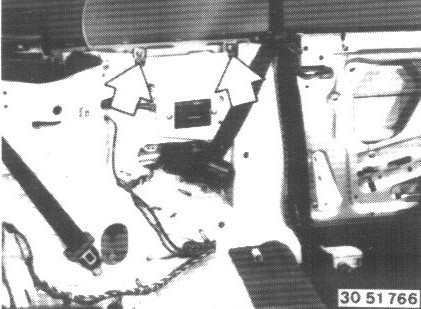

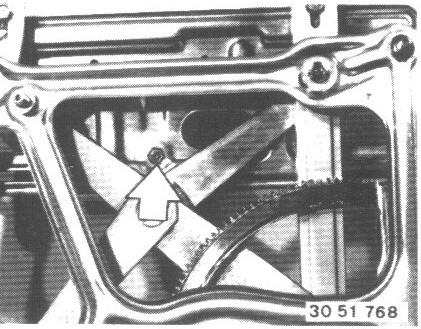

1 Adjust center position.




Align window uniformly at left and right.




2. Adjust top stop.

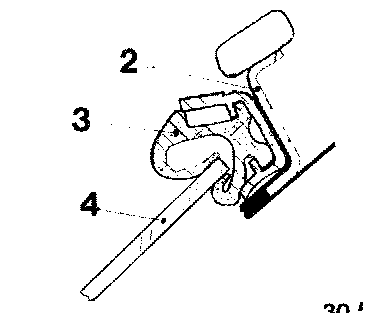

Window giaw (4) must submerge uniformly in rubber seal (3) and roof frame (2).

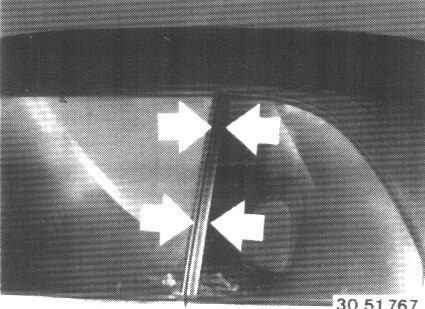

Adjust gap between side window to be uniform at front and rear.

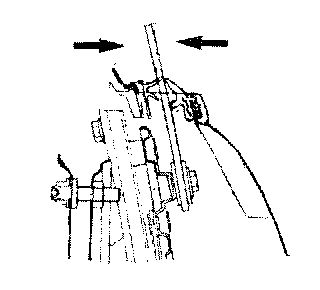

3. Adjust tension of side window.

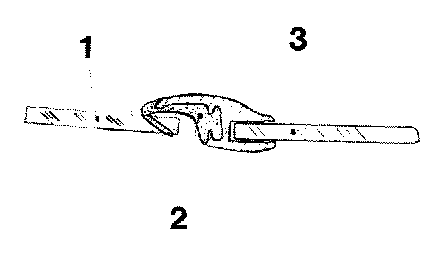

Rear side window (3) must bear together with seal (2) on front side window (1) uniformly with light tension.
